Home >> Land Rover >> 1990 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Front Wipe/Wash

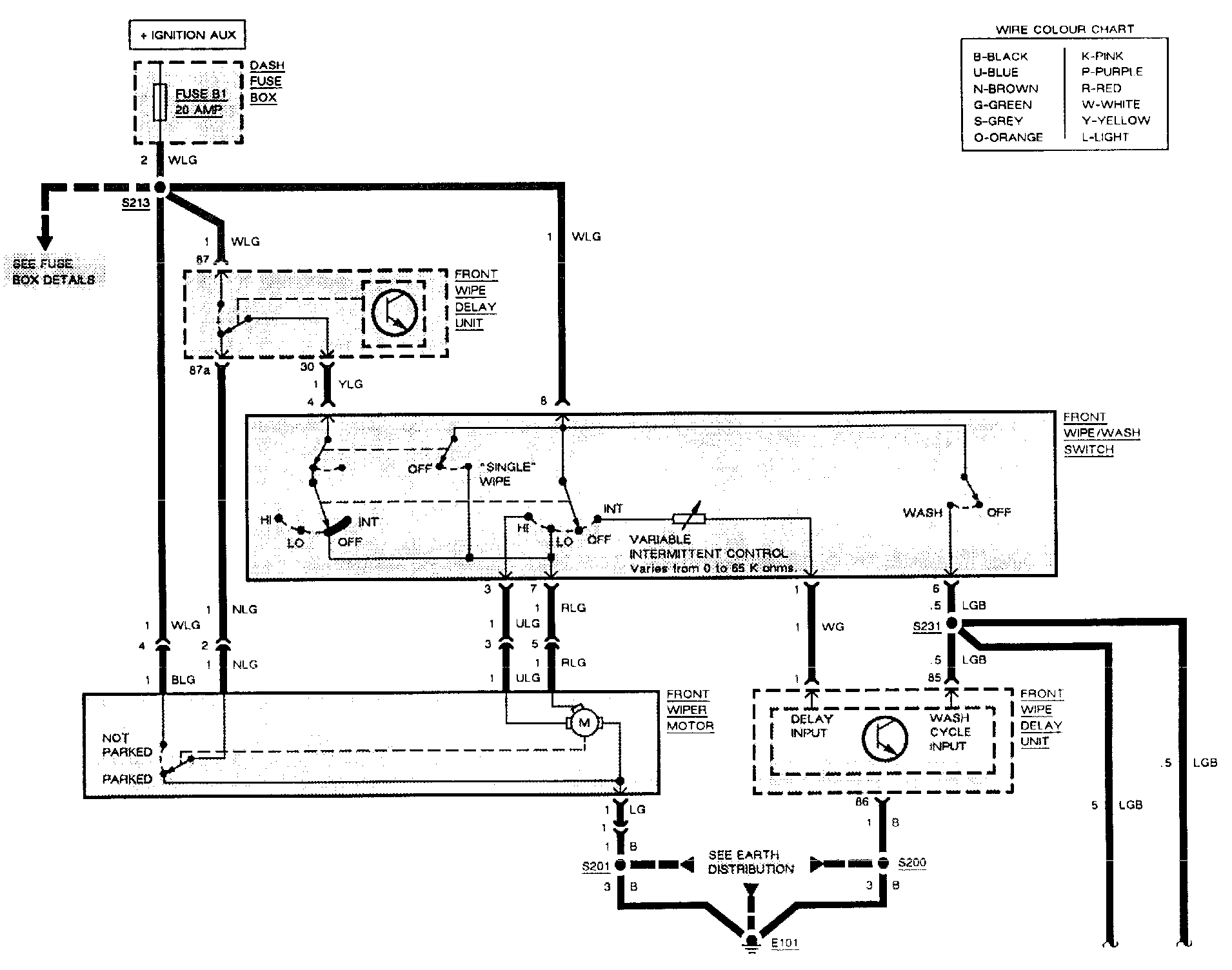

Front Wipe/Wash

Front Wipe / Wash:




Front Wipe / Wash:
