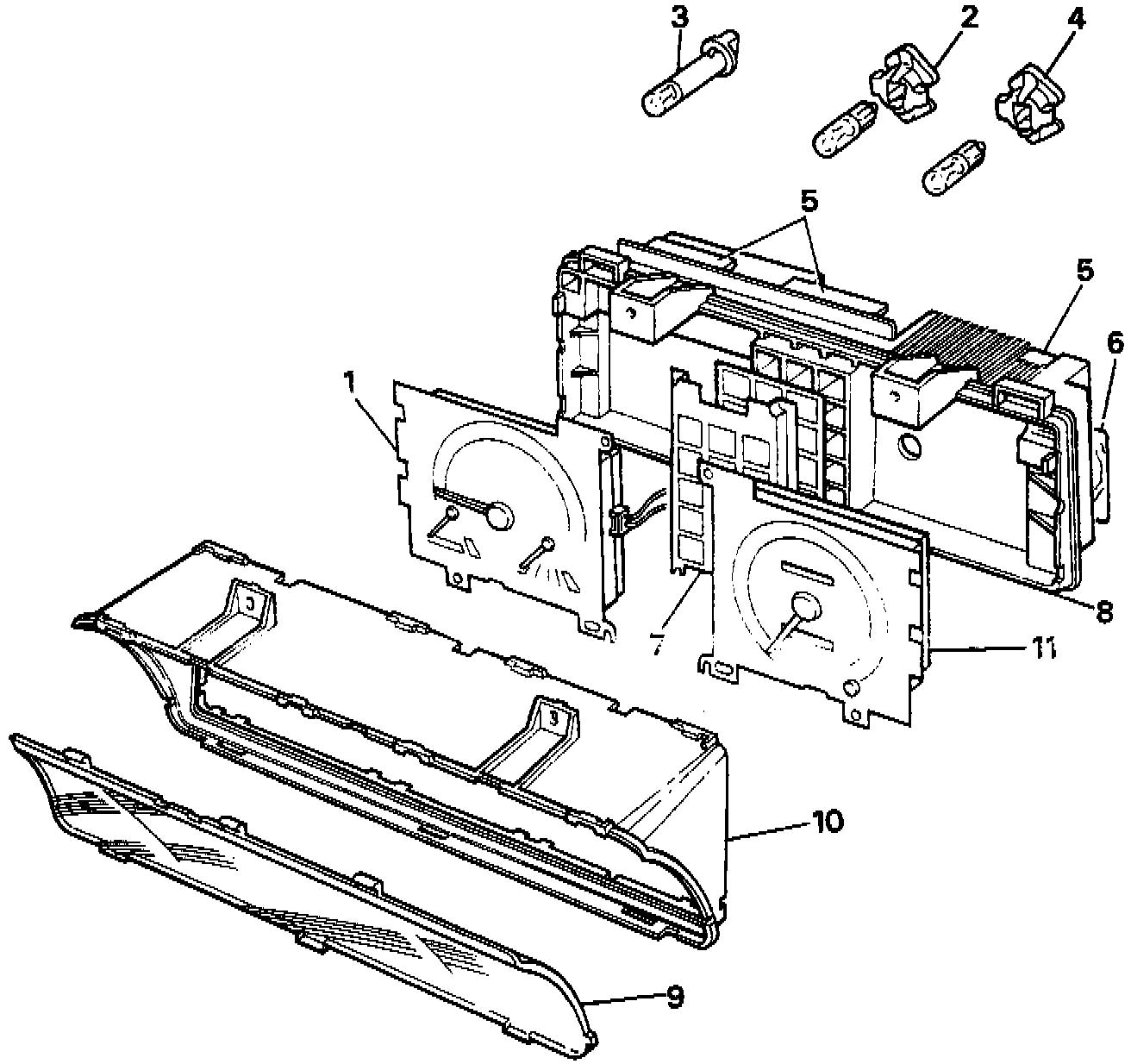

Instrument Panel - Front

Instrument Panel:

1. Tachometer, fuel and temperature gauge
2. Ignition warning bulb (with separate blue holder unit)
3. Panel illumination bulb and holder
4. Warning lights bulb and holder
5. Printed circuit input tags (for harness connection)
6. Printed circuit
7. Warning light panel
8. Instrument case (front)
9. Curved lens
10. Binnacle housing
11. Speedometer
