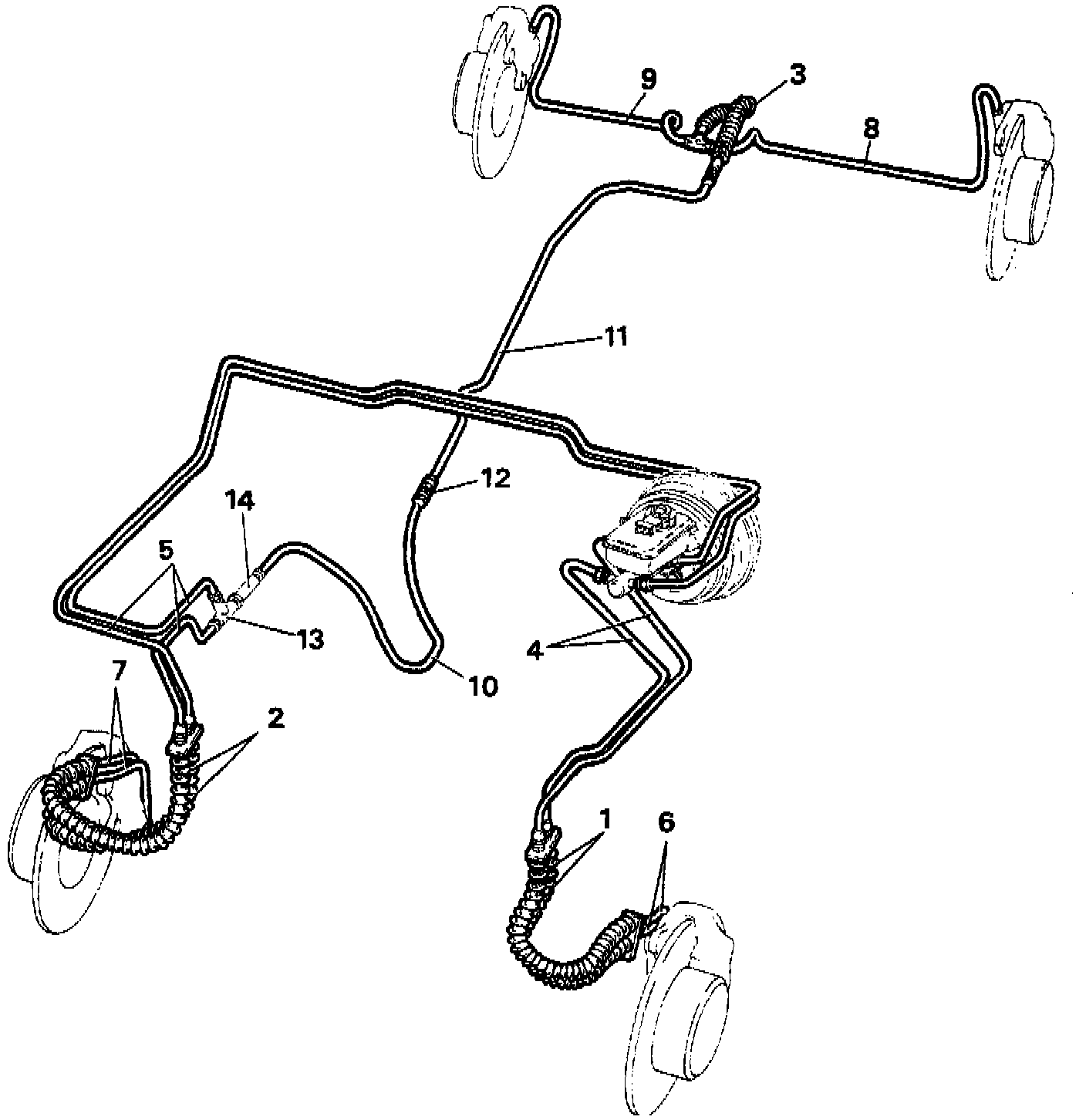

System Diagram

Brake Hydraulic Circuit:

1. Front left hand flexible hoses.
2. Front right hand flexible hoses.
3. Intermediate flexible hose.

PIPES
4. Feed to front left hand hose connector.
5. Feed to front right hand hose connector.
6. Feed to front left hand caliper.
7. Feed to front right hand caliper.
8. Feed to rear left hand caliper.
9. Feed to rear right hand caliper
10. Feed to two way connector.
11. Feed to intermediate hose.
12. Two way connector.
13. Three way connector.
14. Pressure reducing valve.
