Home >> Land Rover >> 1990 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Warnings and Indicators

Warnings and Indicators

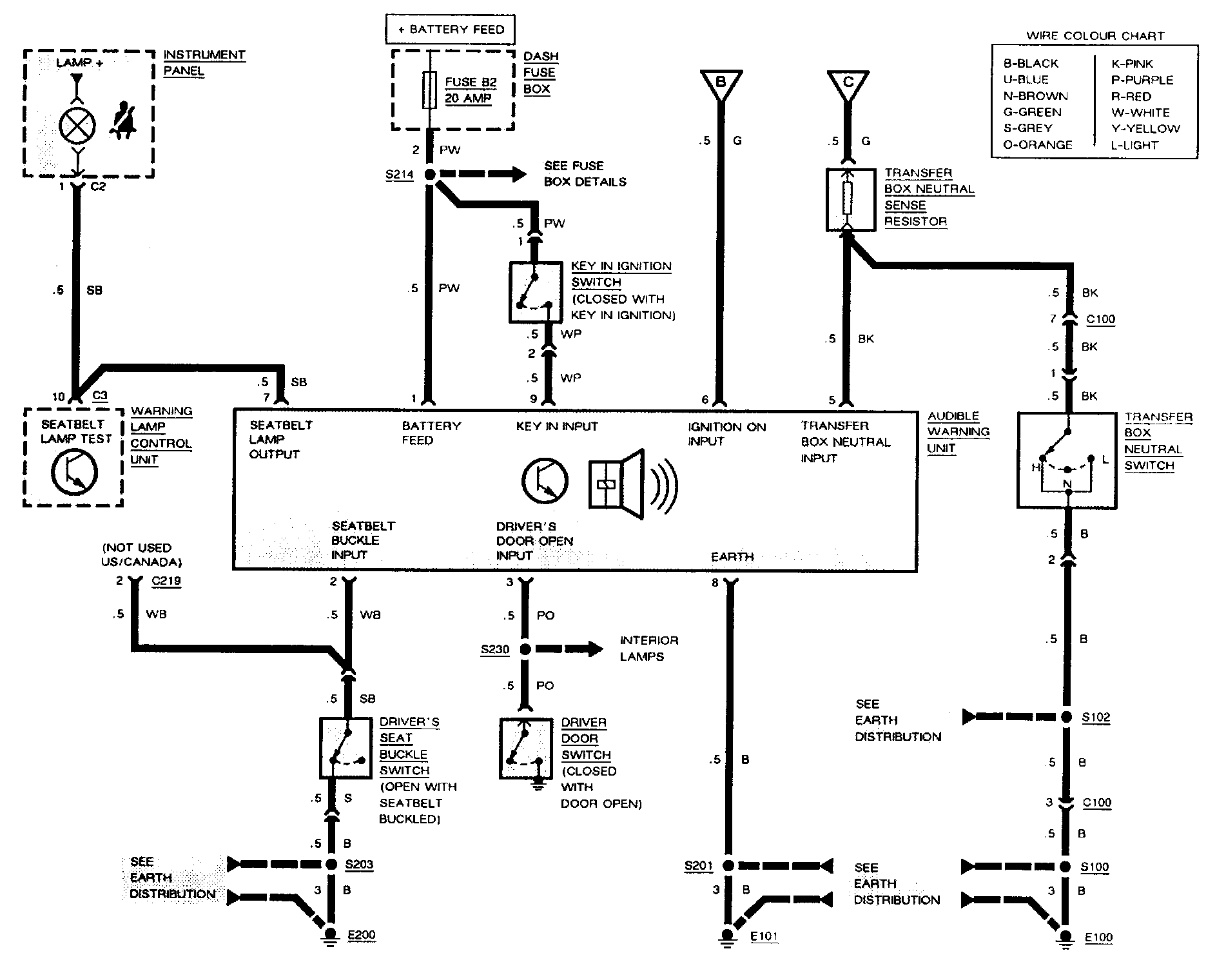

Warnings And Indicators:

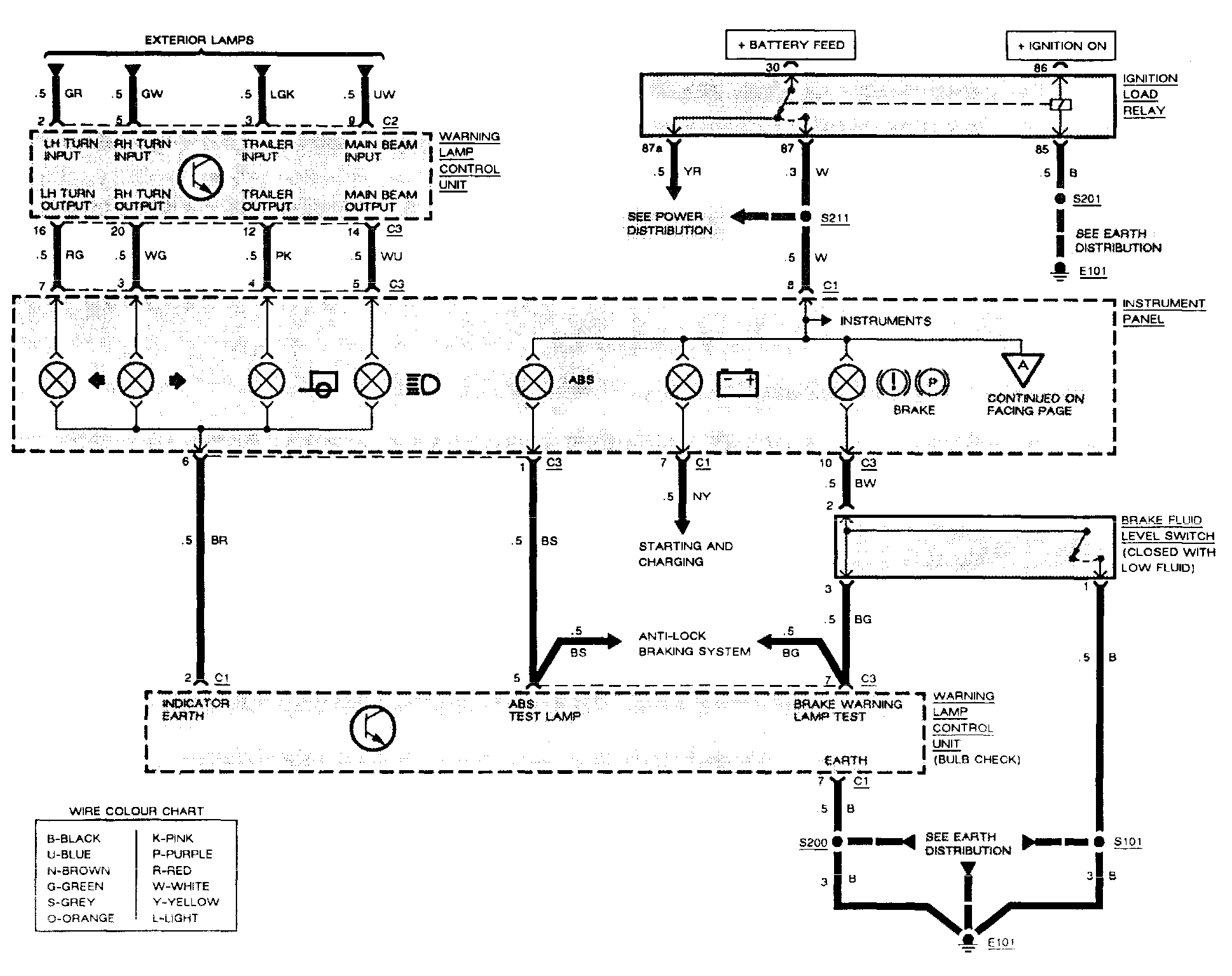

Warnings And Indicators:

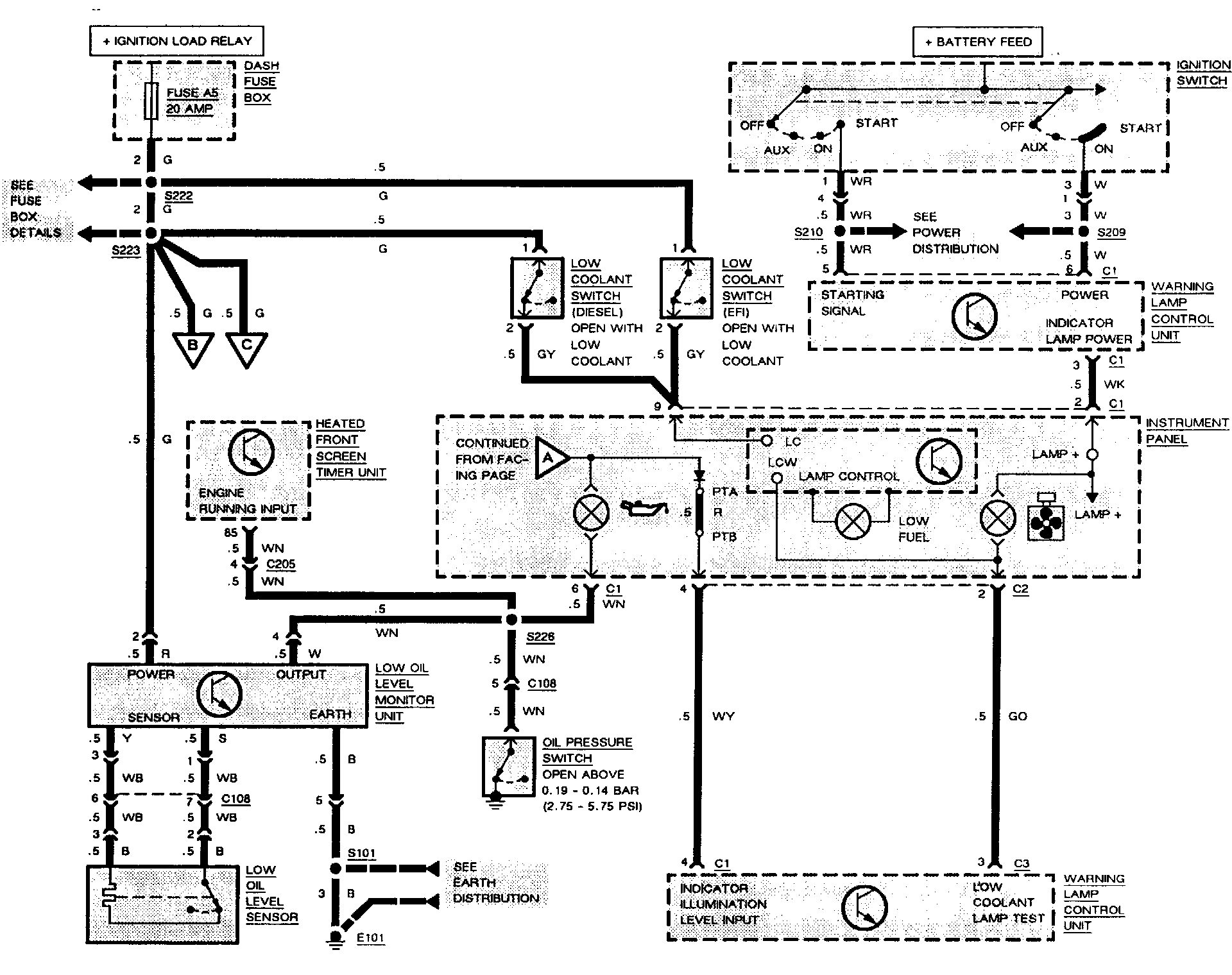

Warnings And Indicators:




Warnings And Indicators:
