Instrument Pack

REMOVE
- Remove the instrument panel from the vehicle. Service and Repair

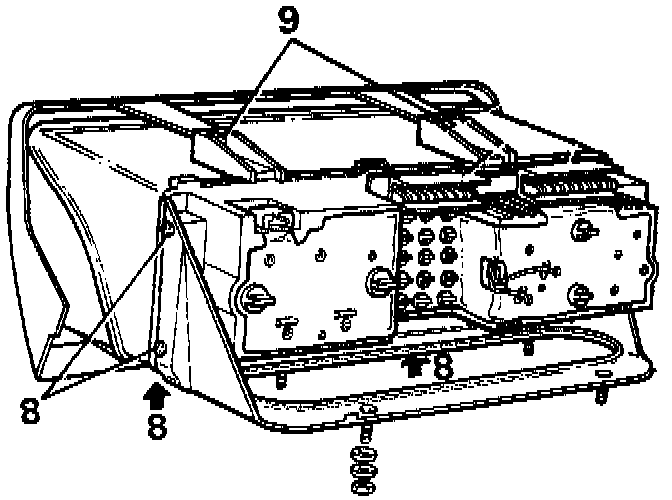

Instrument Panel Rear View:

- Detach the panel mounting bracket. This is secured to the instrument case by two screws (8) and to the bottom of the panel bezel by two smaller screws.
- Remove the two screws (9) retaining the top of the bezel to the front housing and detach the bezel.
- Detach the curved lens from the panel housing by depressing four tabs and easing the top of the lens out, the depressing three tabs and easing the lower edge of the lens out of its location.
- Separate the instrument case from the panel housing by releasing the upper and lower locating tabs in turn.

REFIT
- Reverse removal.
