Instrument Panel

Remove
- Disconnect the battery negative lead.
- Remove the lower dash by releasing the six retaining screws.

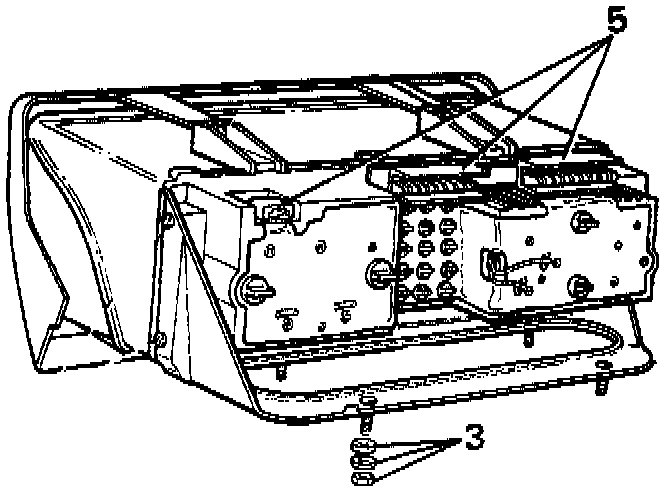

Instrument Panel Rear View:

- Remove the four nuts (3) from under the top dash rail which secure the instrument panel to the vehicle.
- Unclip the panel cowl from the rear, and remove.
- Disconnect the two multi-plugs (5) and the single plug (5) from the printed circuit connectors.
- Lift the instrument panel from the top dash rail and transfer it to the workbench.

REFIT
- Reverse the removal instructions.
