Fog/Driving Lamp: Service and Repair
REPLACE1. Disconnect the battery negative lead.
2. The auxiliary driving lamp securing nut is located beneath the front fender adjacent to the front body fixing. Access to the lamp is gained through the front wheel arch.

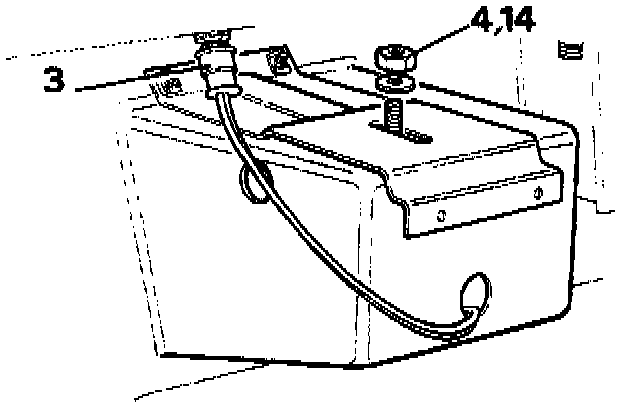

Electrical Connector:
3. Disconnect the electrical plug.
4. Remove the single nut and washer.
5. From the front of the vehicle, maneuver the lamp and remove it from the spoiler opening.

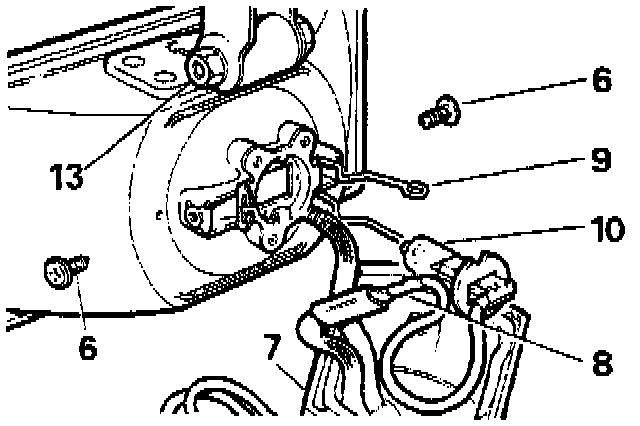

Fog Lamp Components:
6. Remove the two screws securing the cover to the rear of the lamp.
7. Withdraw the cover.
8. Disconnect the blade connector.
9. Release the spring clip securing the bulb to the lamp unit.
10. Remove the bulb.
REFIT
1. Fit a new bulb ensuring that the two notches on the bulb body locate with the registers on the lamp unit.
2. Reverse the removal procedure.
