Headlamp: Service and Repair

REMOVE
1. Disconnect the battery negative lead.
2. Remove the radiator grille.

Headlamp:

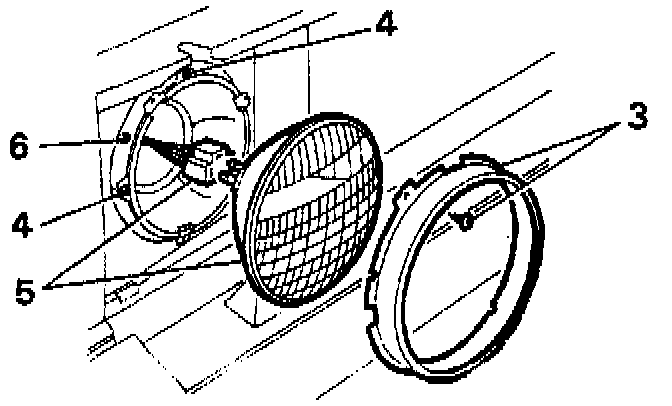

3. Remove three crosshead screws and the headlamp retaining rim.
4. DO NOT disturb the two adjusting screws.
5. Withdraw the sealed beam unit and disconnect the wiring plug from the rear of the unit.
6. Remove three securing screws, pry away the grommet and withdraw the headlamp bowl.

REFIT
1. Reverse removal procedure.
