Specifications
>>
Mechanical Specifications
>>
Suspension
>>
Suspension Spring ( Coil / Leaf )
Suspension Spring ( Coil / Leaf )
Spring Data:
Spring Data:

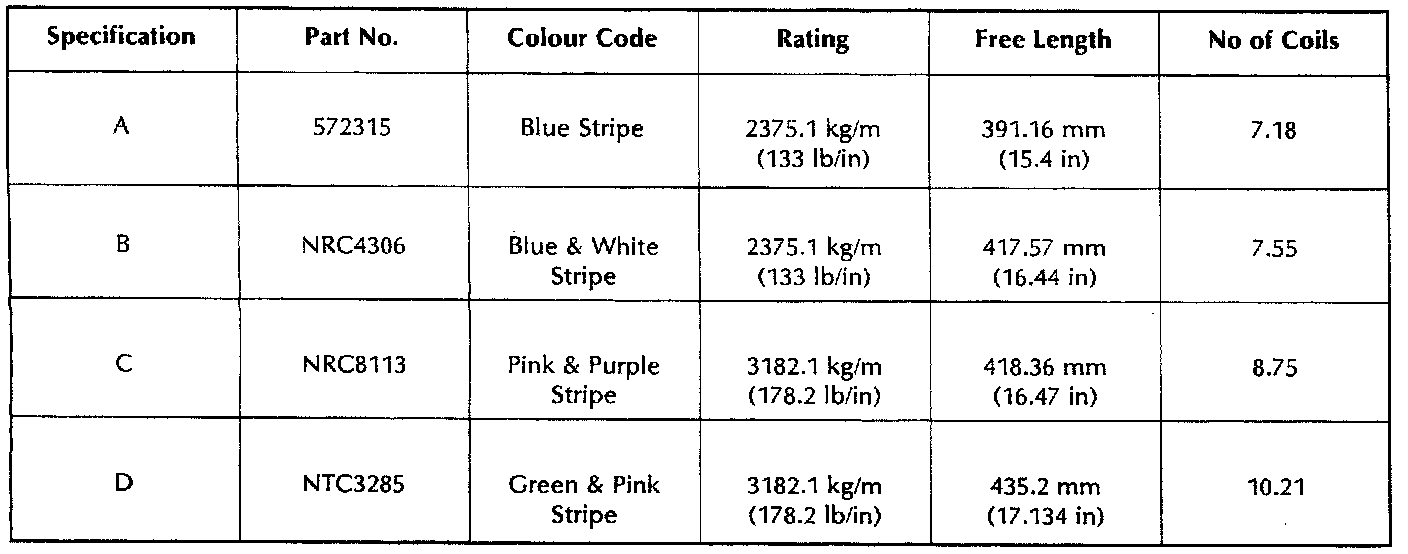

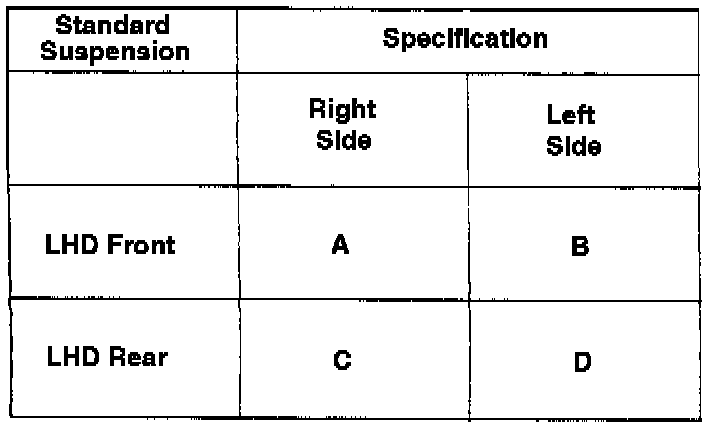

ROAD SPRING DATA
