Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1990
>>
Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>

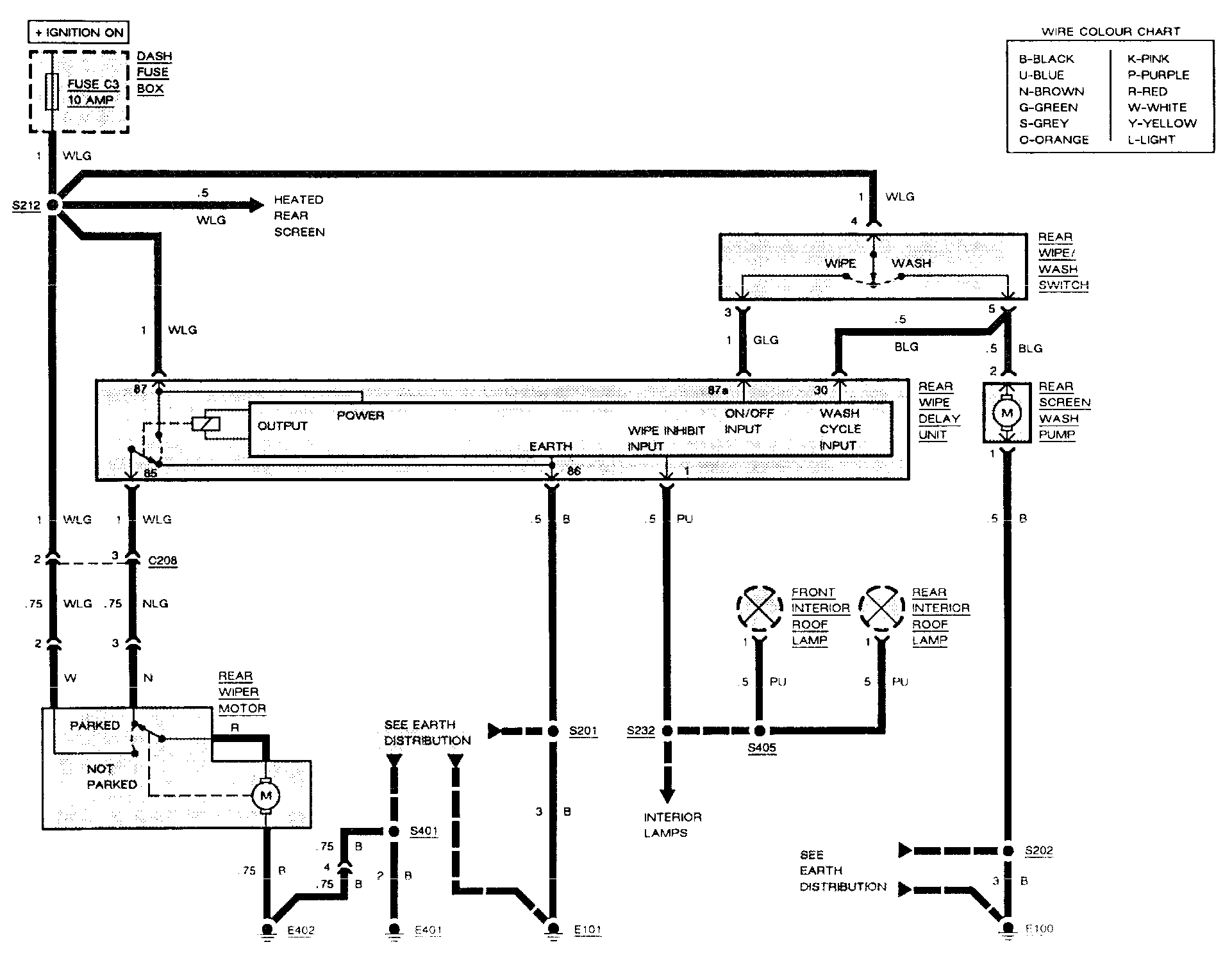

Rear Wipe/Wash
Rear Wipe/Wash
Rea Wipe / Wash:
