Connectors Locations
Connectors Locations
Connector, Ground, And Splice Locations On Vehicle:

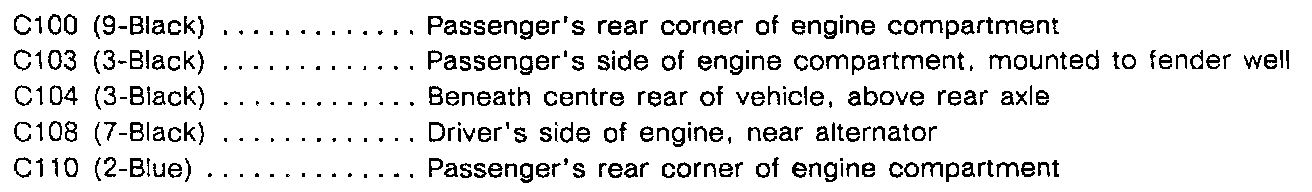

C100 - C110:

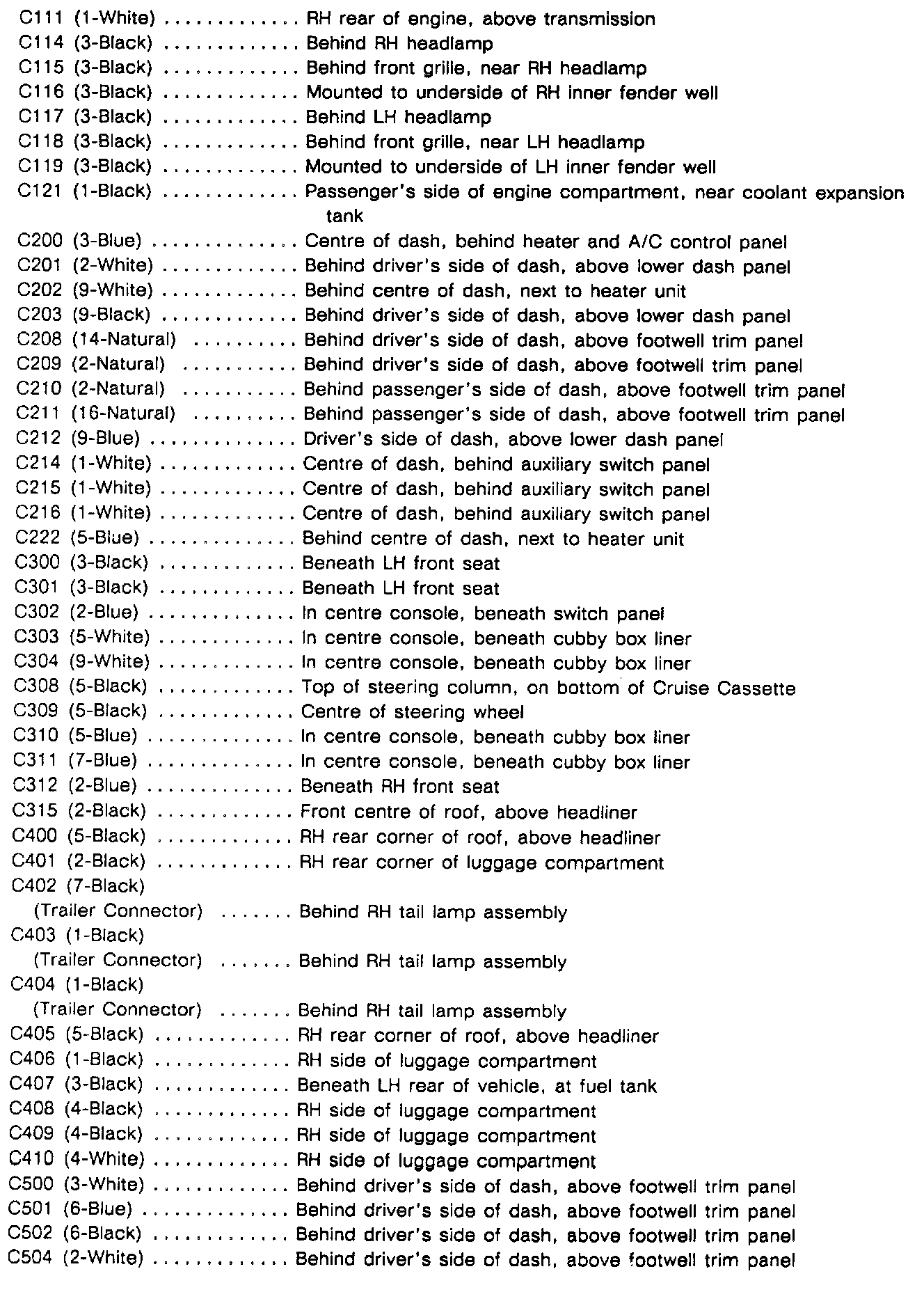

C111 - C504:

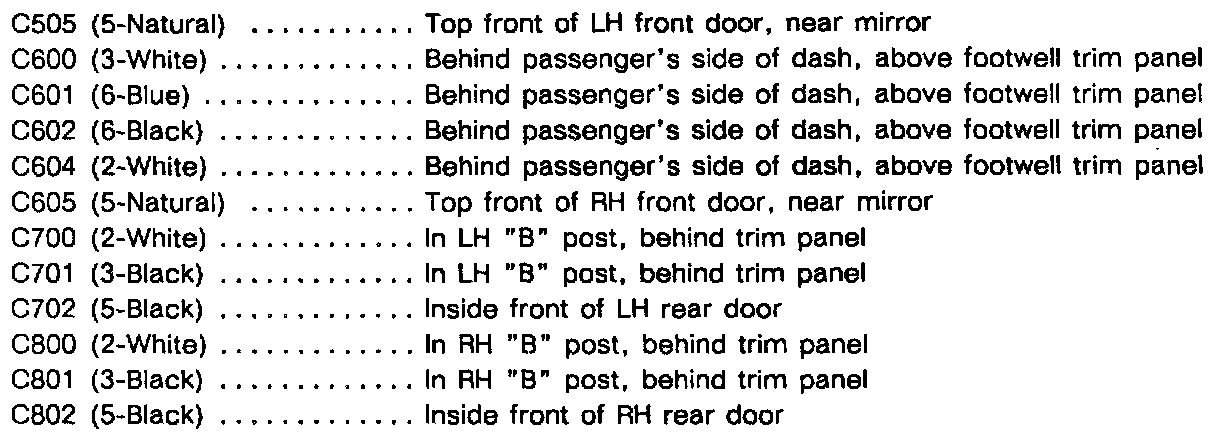

C505 - C802:
