Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

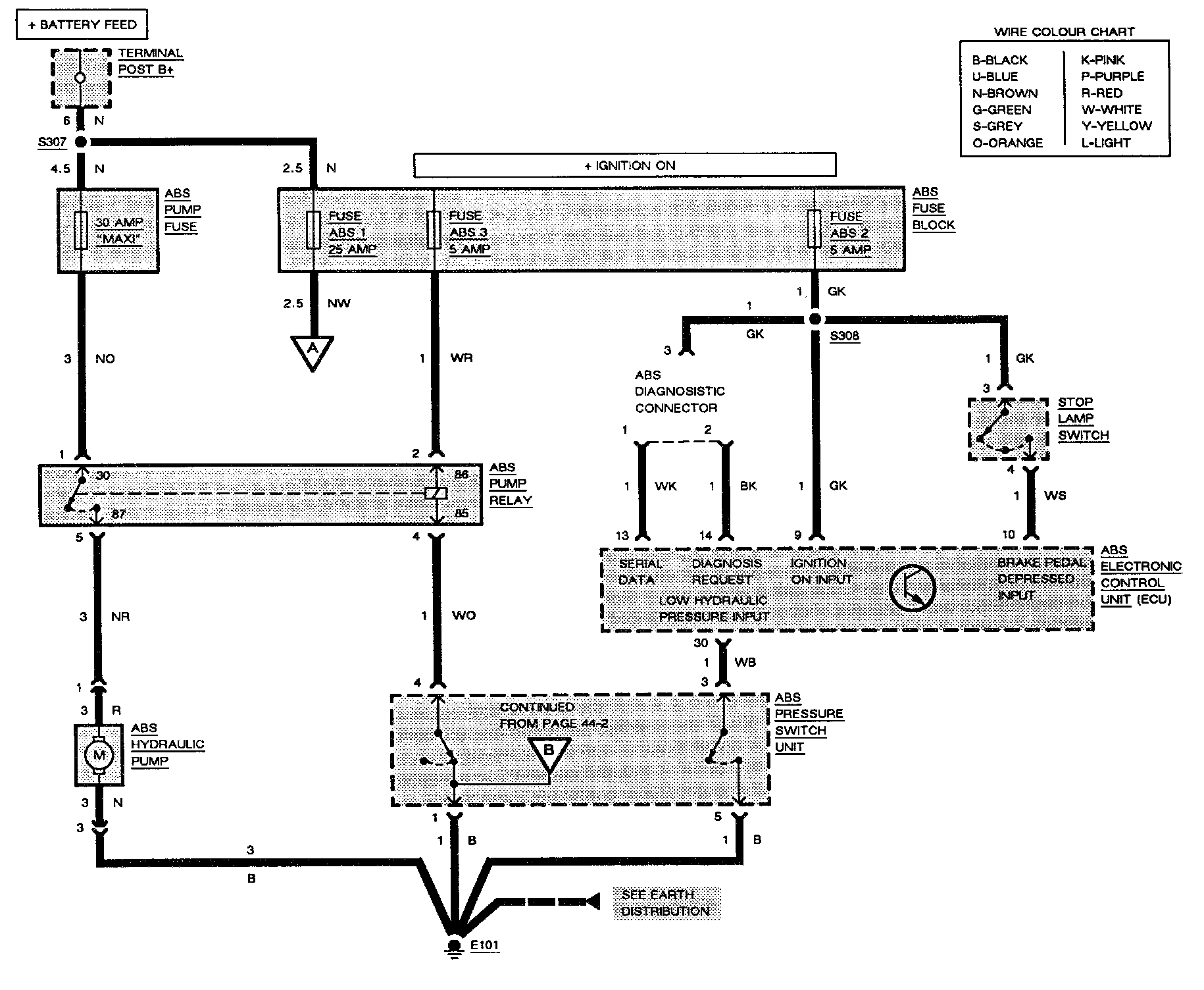

Anti-lock Brake System:

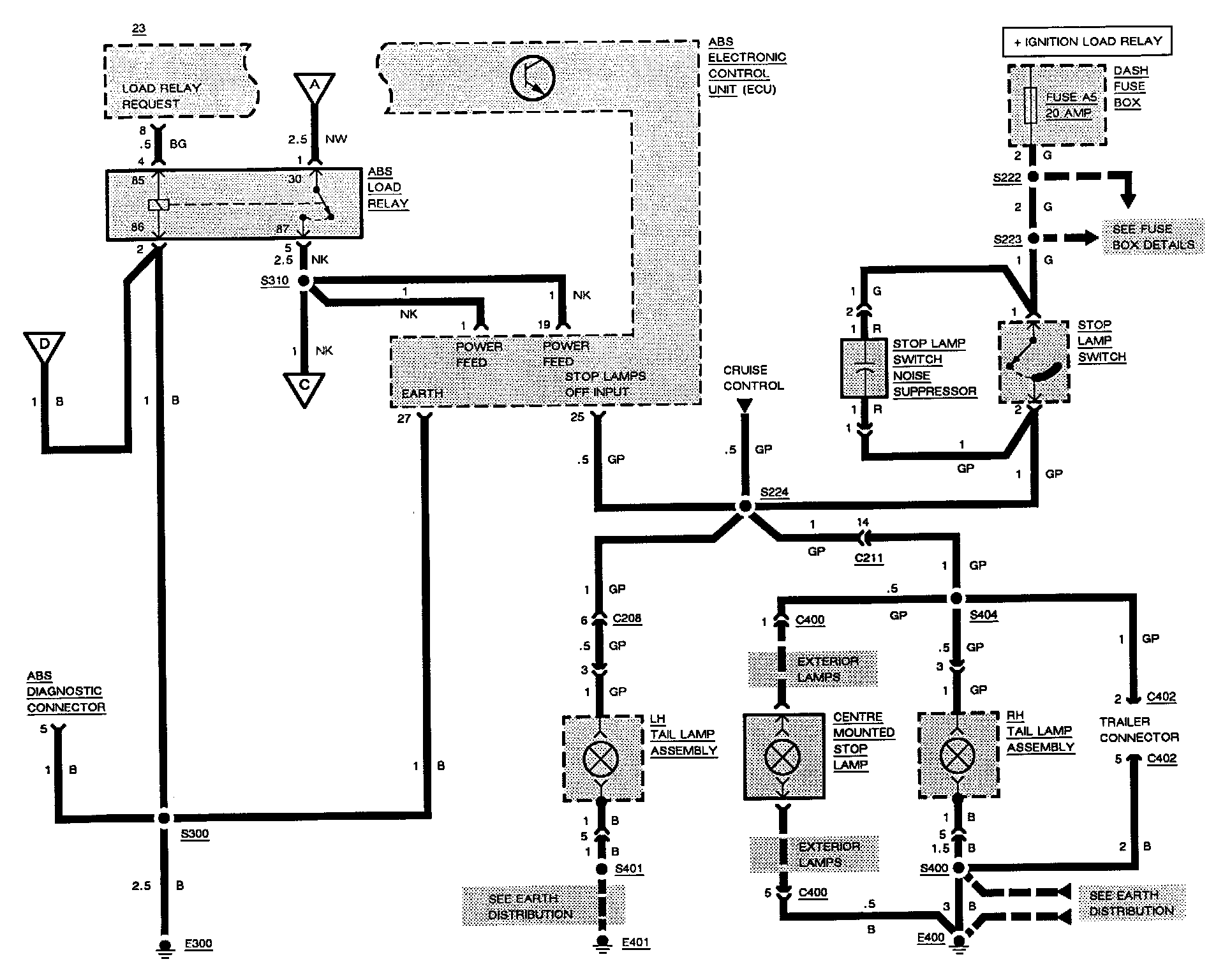

Anti-lock Brake System:

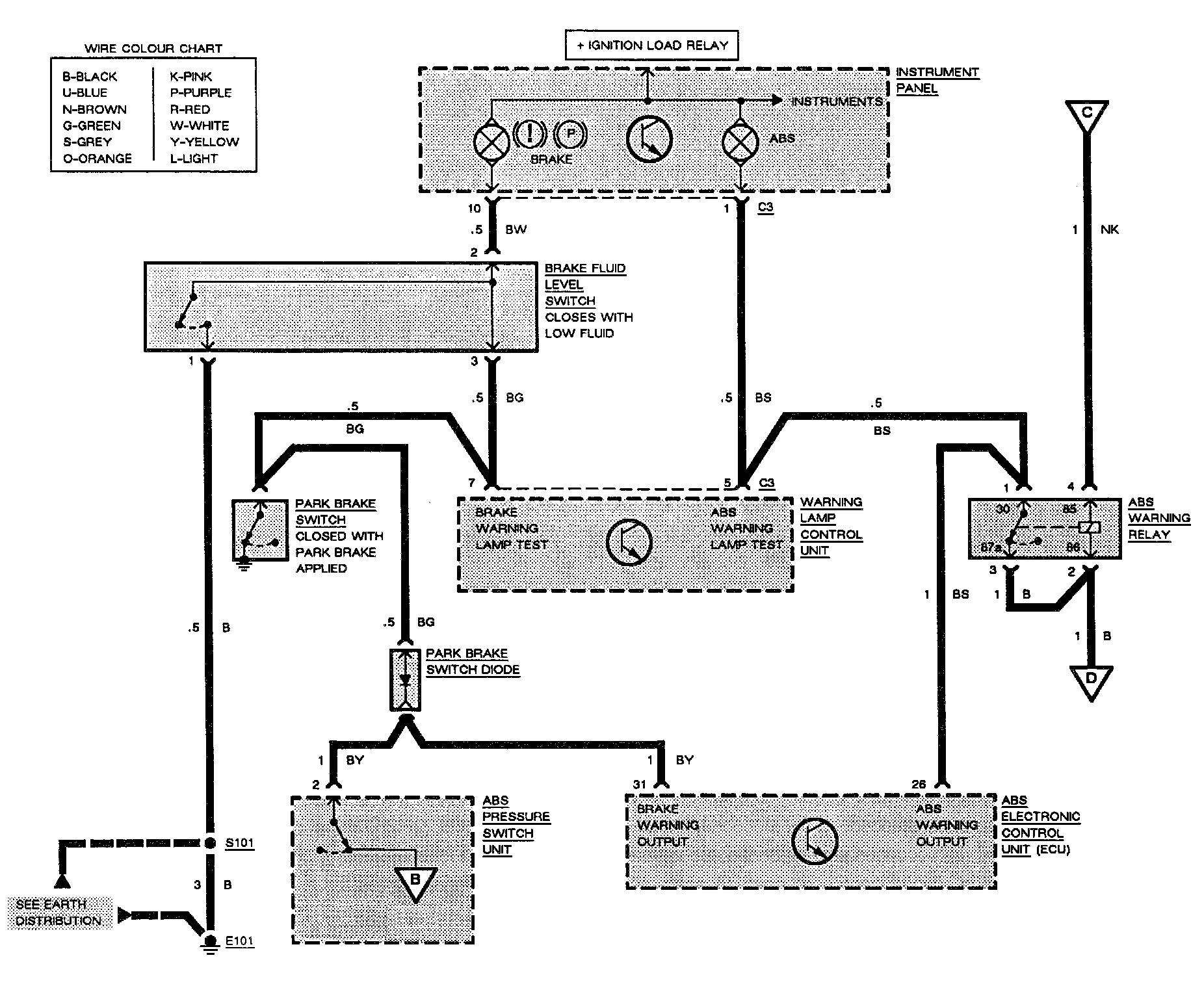

Anti-lock Brake System:
Anti-lock Brake System:
