Home >> Land Rover >> 1991 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Power Mirrors

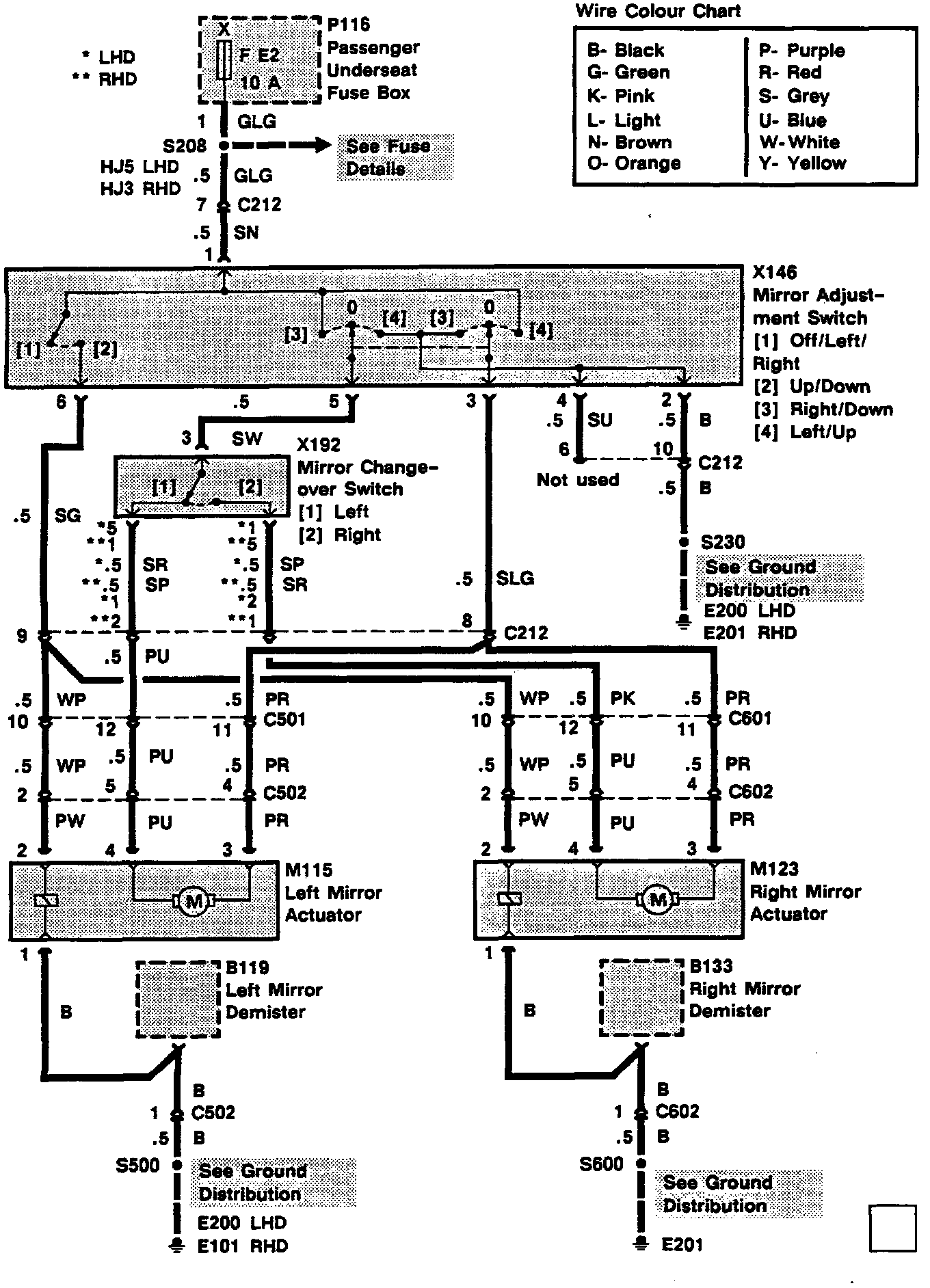

Power Mirrors

M3-2:
