Range Rover (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

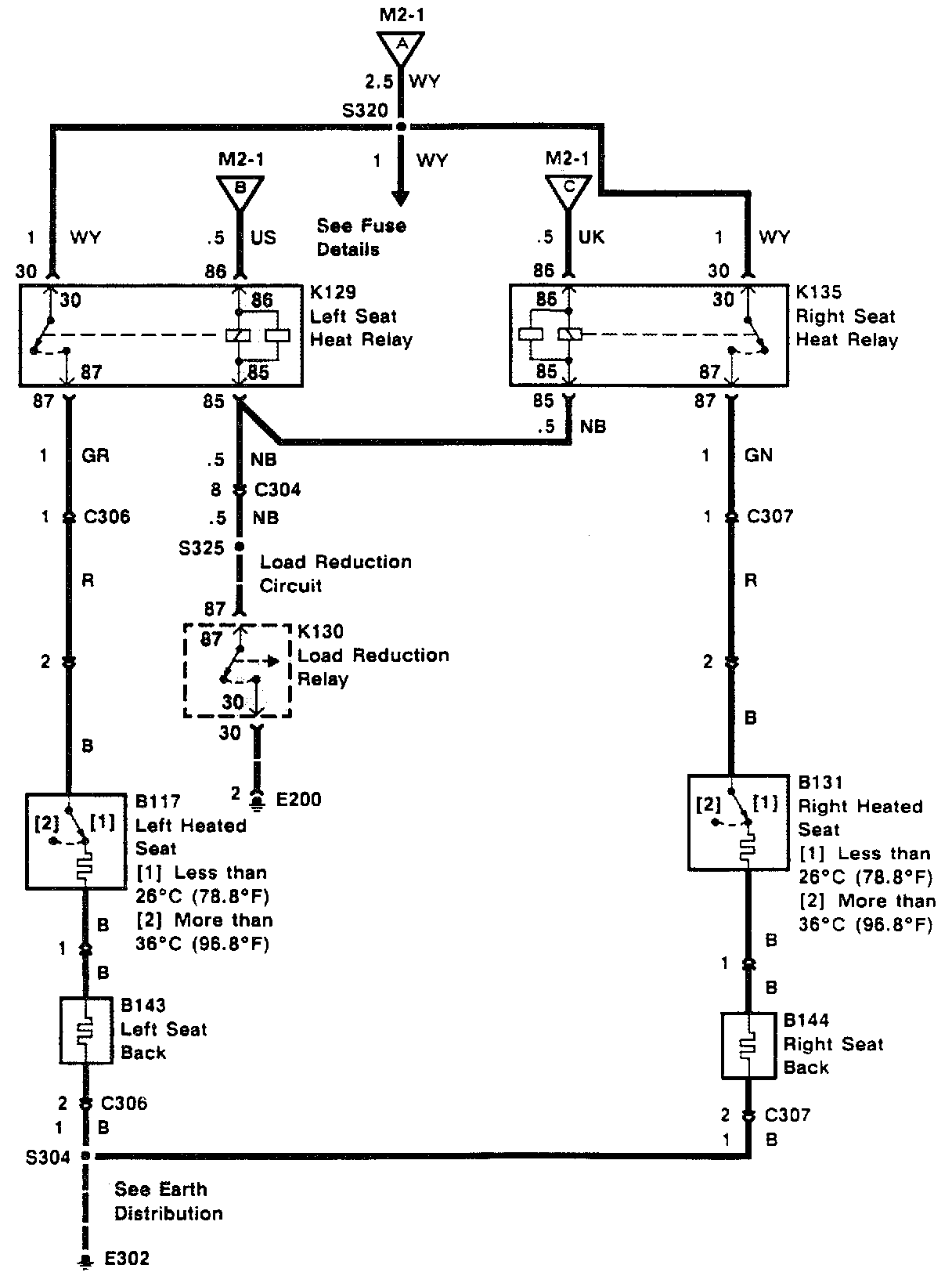

Heated Seats (M2-1):

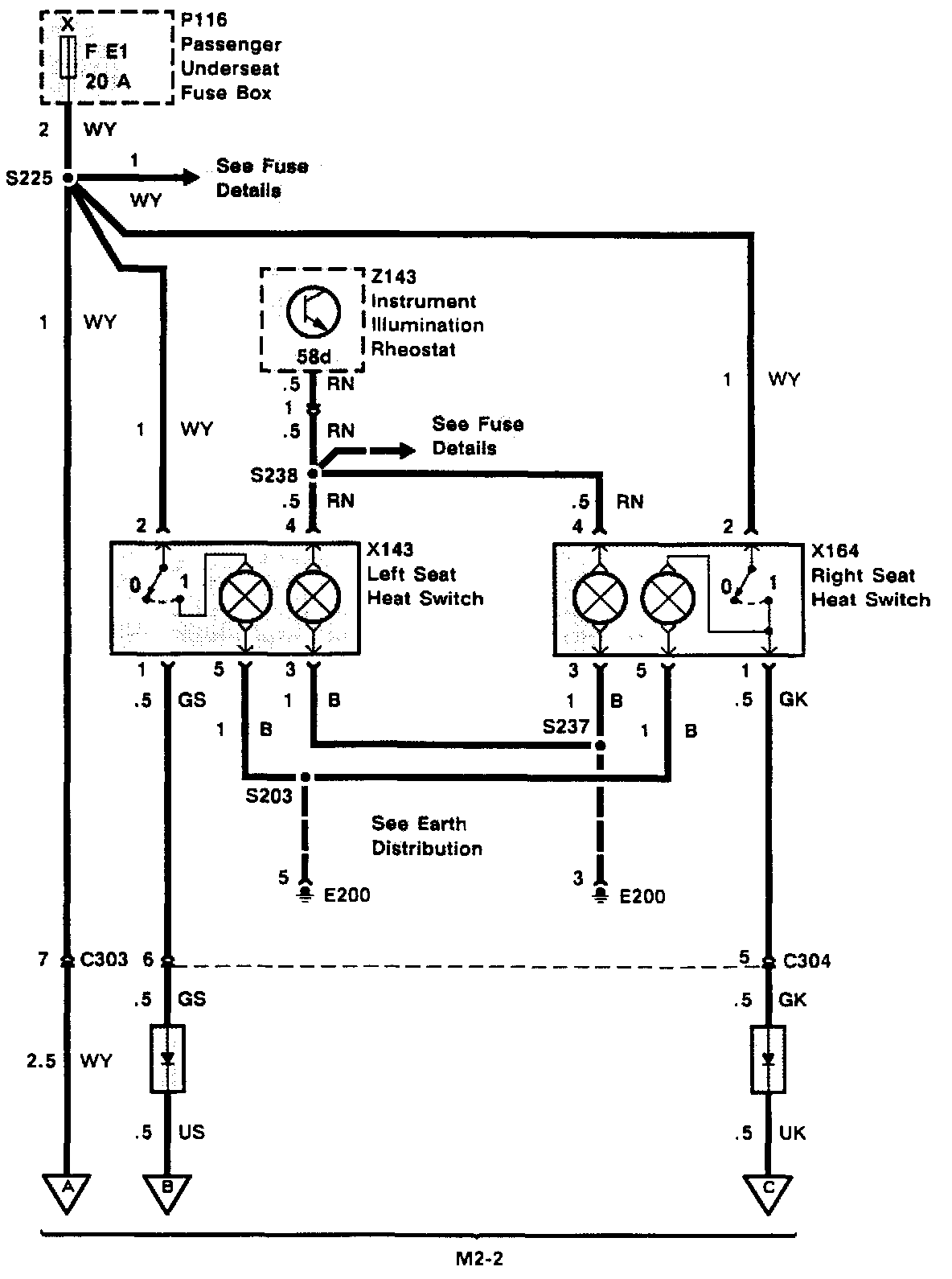

Heated Seats (M2-2):
