Electrical Equipment

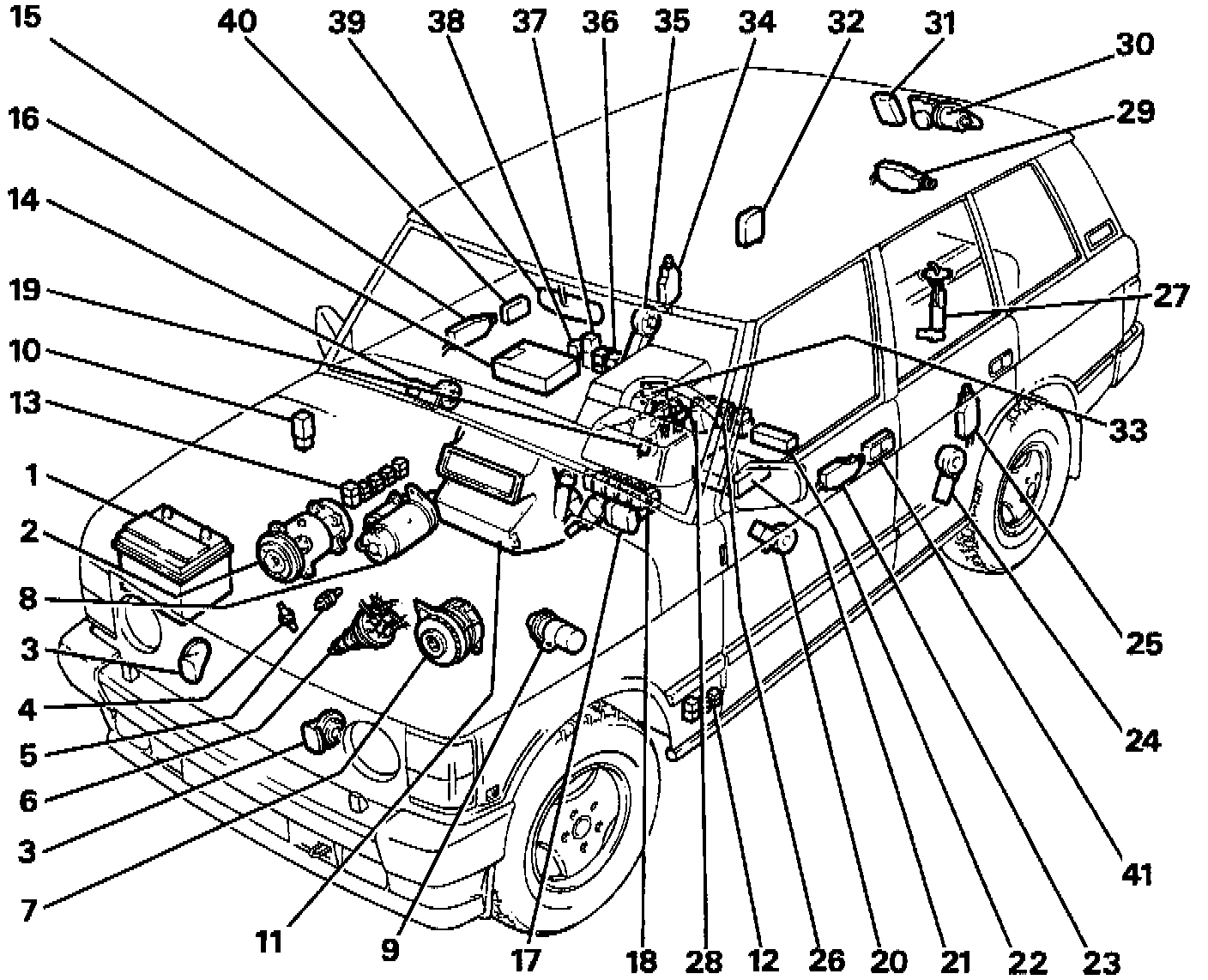

Electrical Component Locations:





1. Battery
2. Air conditioning compressor (option)
3. Horns
4. Oil pressure switch
5. Water temperature switch
6. Electronic distributor
7. A.C. generator
8. Starter motor
9. Coil
10. Headlamp wash timer unit
11. Heater
12. Relays/flasher units
13. Air con relays/diode unit (option)
14. Window lift motor (R/F door)
15. Door lock actuator (R/F door)
16. Engine control module (MFI)
17. Wiper motor - front windshield
18. Relays/delay units
19. Park brake warning light switch
20. Window lift motor (L/F door)
21. Electronic control unit and relays (ABS) (option)
22. Seat adjustment fuse box (option)
23. Door lock actuator (L/F door)
24. Window lift motor (L/R door)
25. Door lock actuator (L/R door)
26. Seat adjustment relays - two (option)
27. Electrical in-tank fuel pump
28. Inertia fuel shutoff switch
29. Tailgate lock actuator
30. Wiper motor - rear windshield
31. Radio aerial amplifier
32. Fuel filler flap lock actuator
33. Window lift relays and one touch control unit
34. Door lock actuator (R/R door)
35. Window lift motor (R/R door)
36. MFI relays (two)
37. Condenser fan timer unit (option)
38. Cruise control relay (option)
39. Dimming mirror (option)
40. RH door lock heater
41. LH door lock heater

NOTE: Left hand drive vehicle shown. Items 10, 12, 13, 17 and 18 located symmetrically opposite on right hand drive vehicles.
