Suspension Control ( Automatic - Electronic )
>>
Suspension Control Module
Suspension Control Module

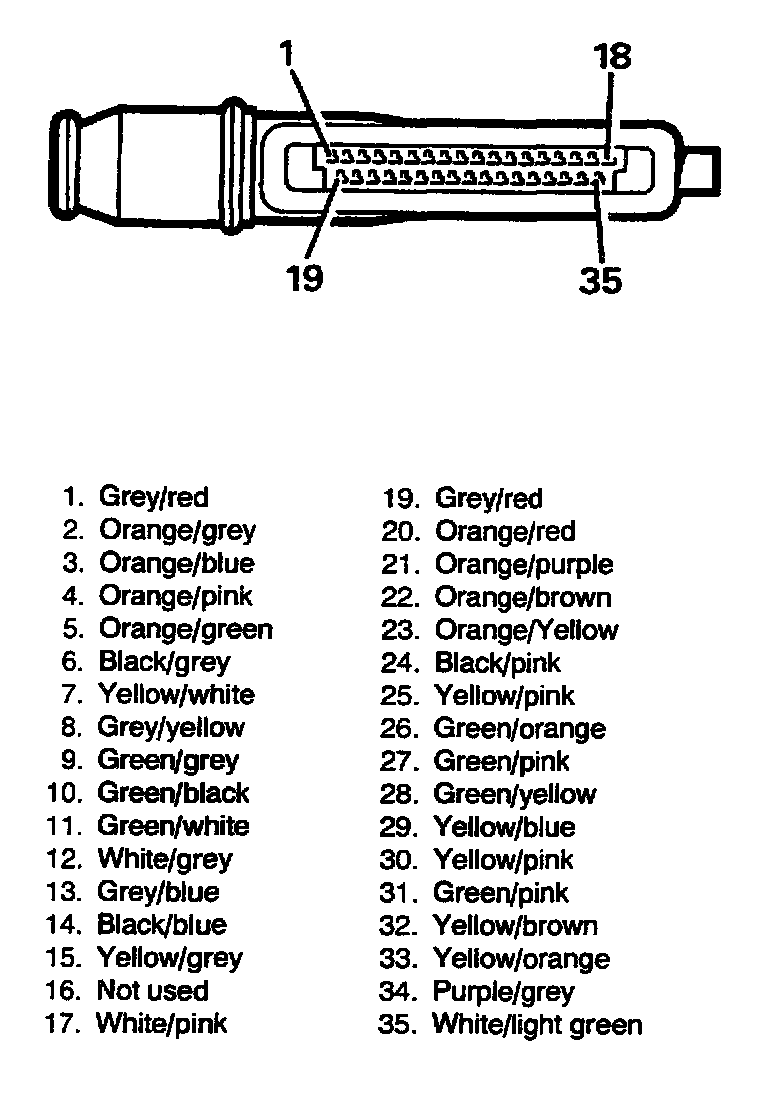

ECU Harness Plug Wiring - RR3692M:
