Courtesy Lamp
>>
System Diagram
System Diagram

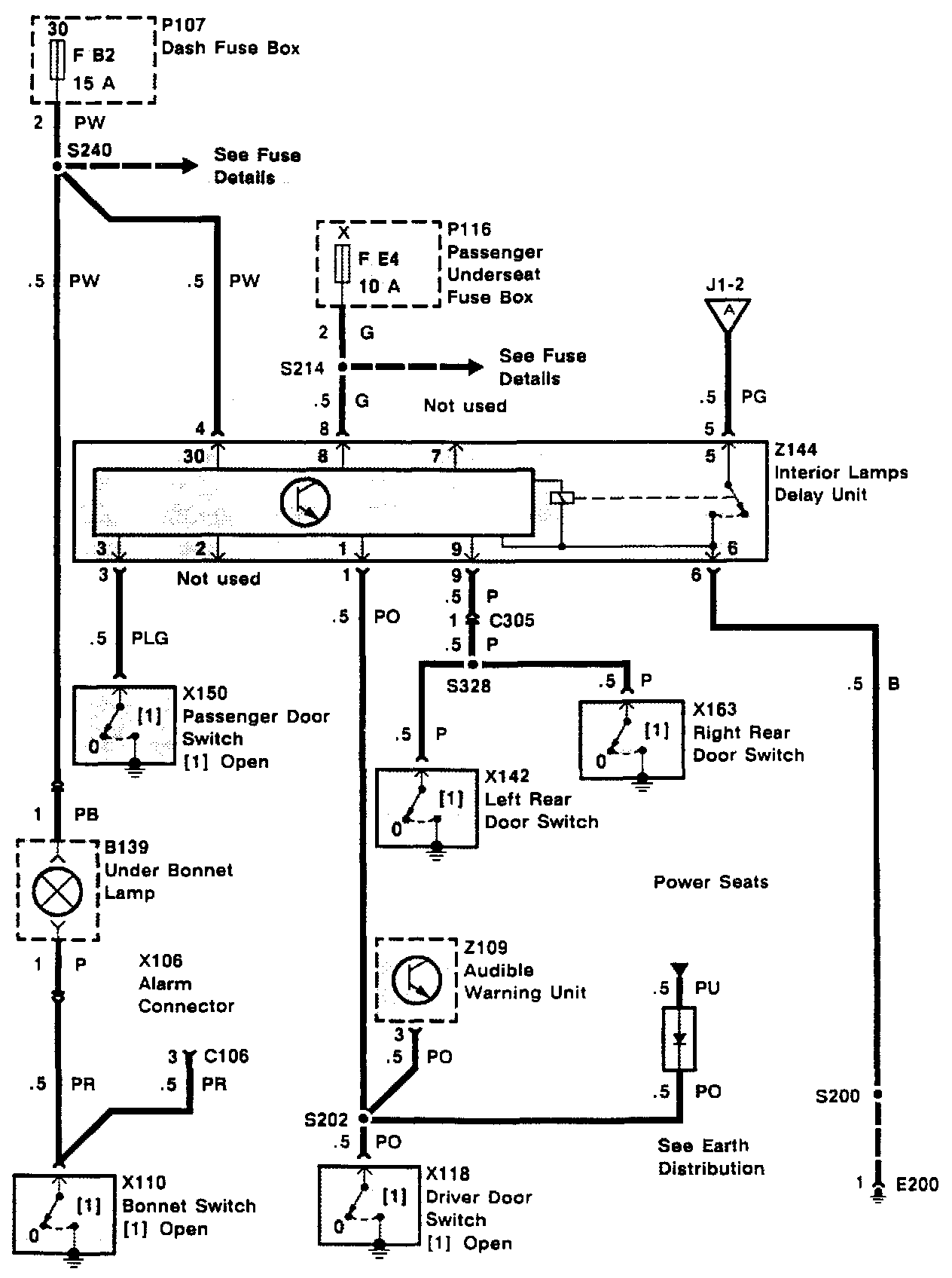

Interior Lamps (J1-1):

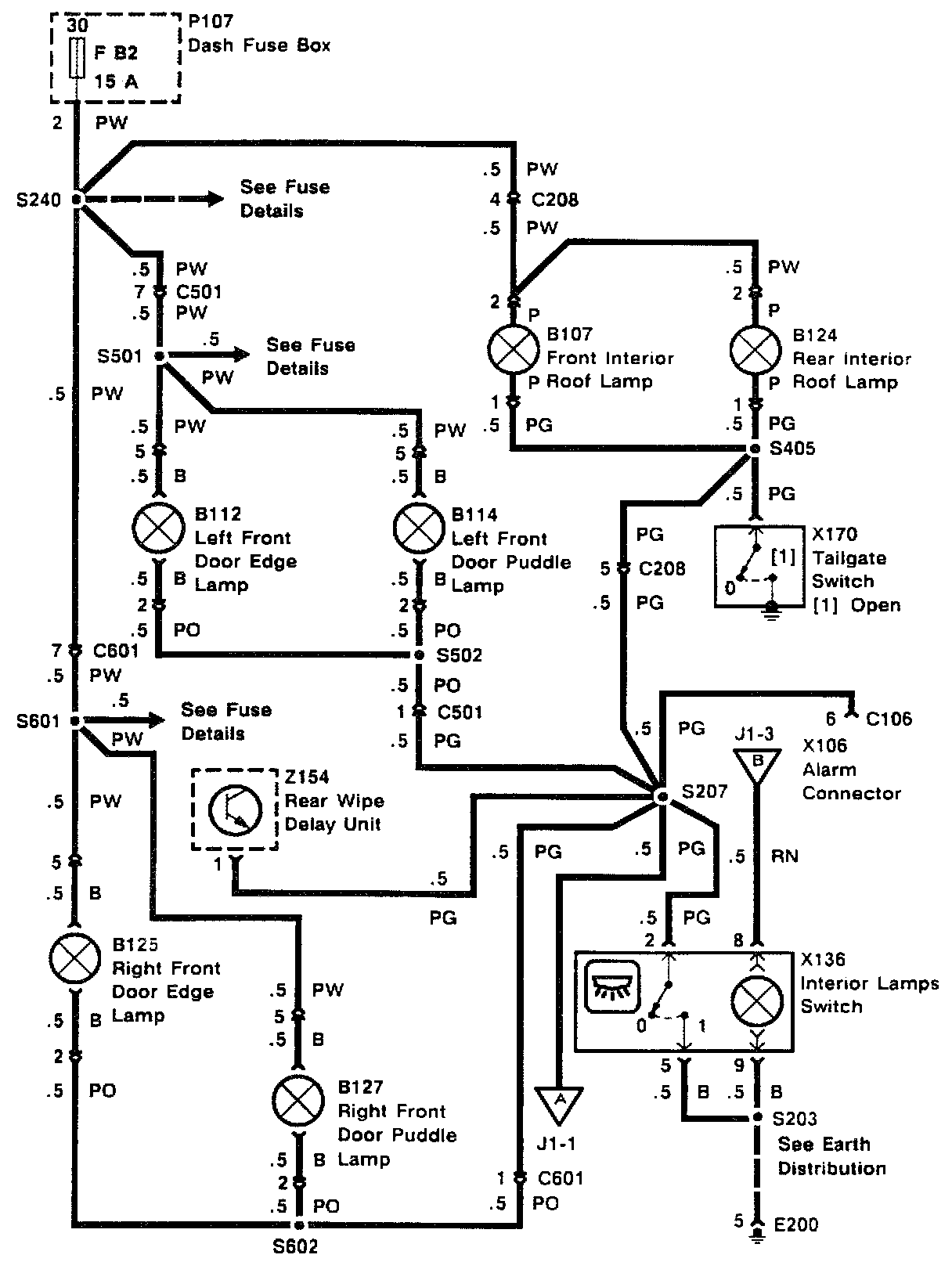

Interior Lamps (J1-2):

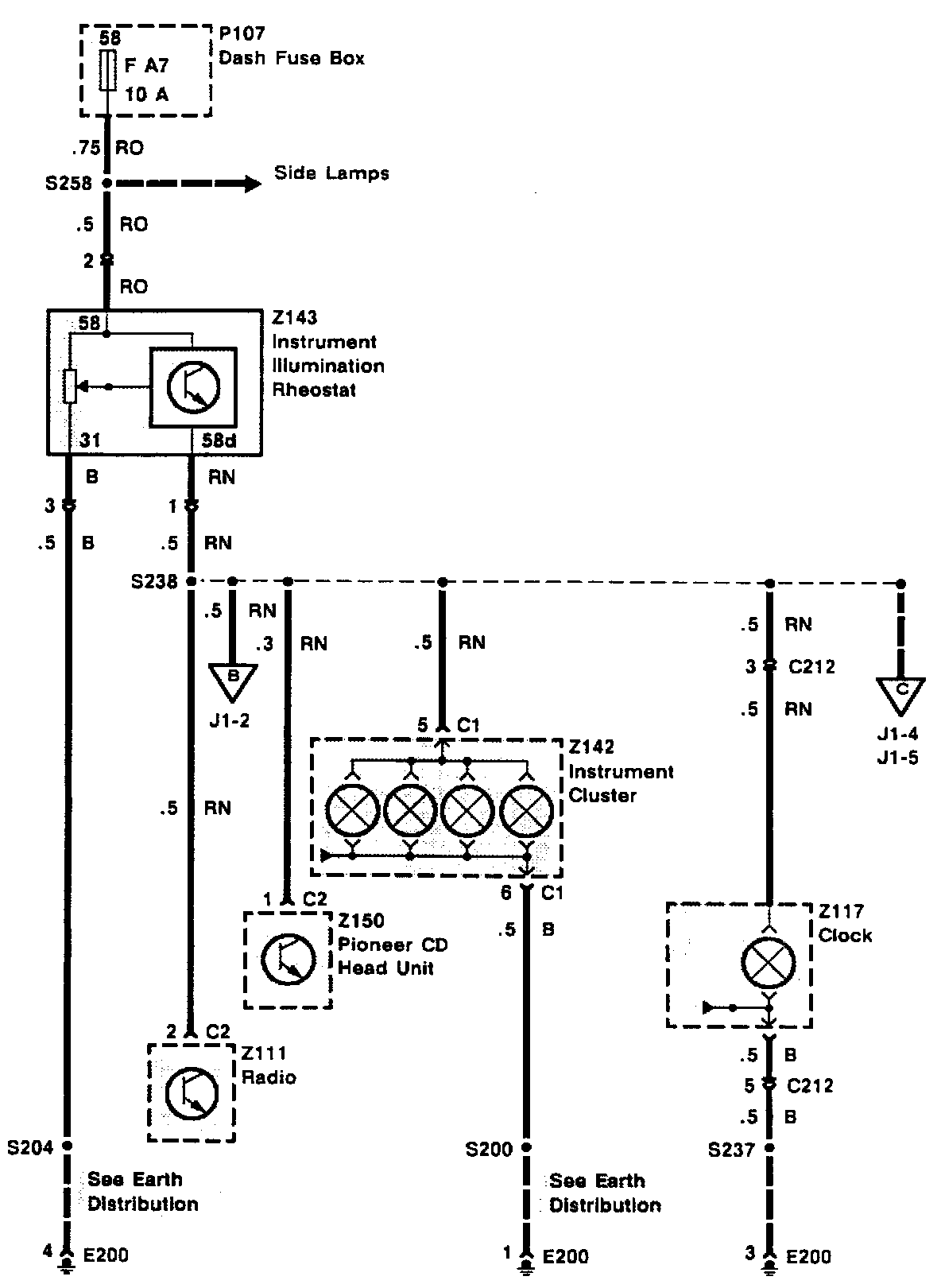

Interior Lamps (J1-3):

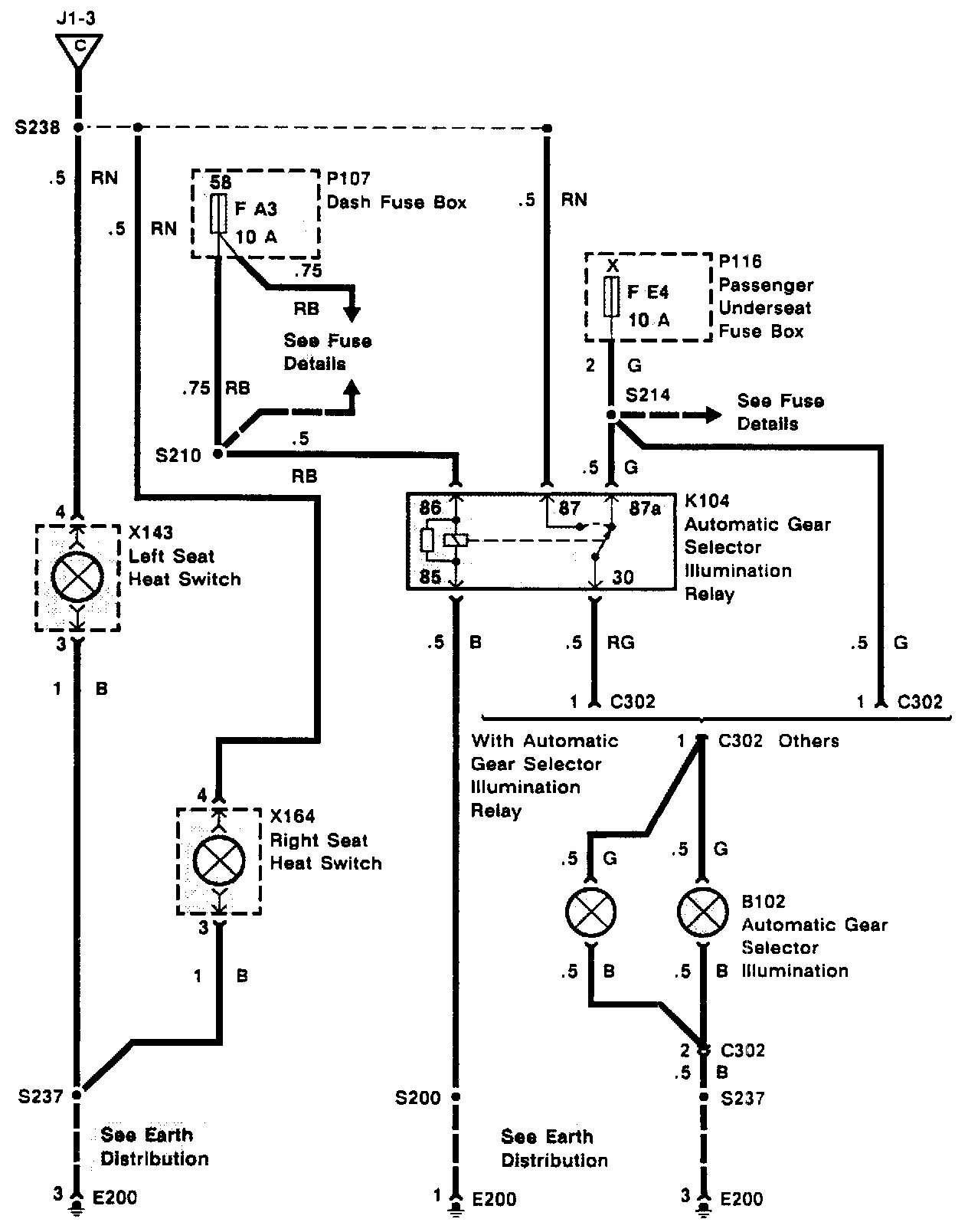

Interior Lamps (J1-4):
Interior Lamps (J1-5):
