Home >> Land Rover >> 1992 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Door Lock Heater

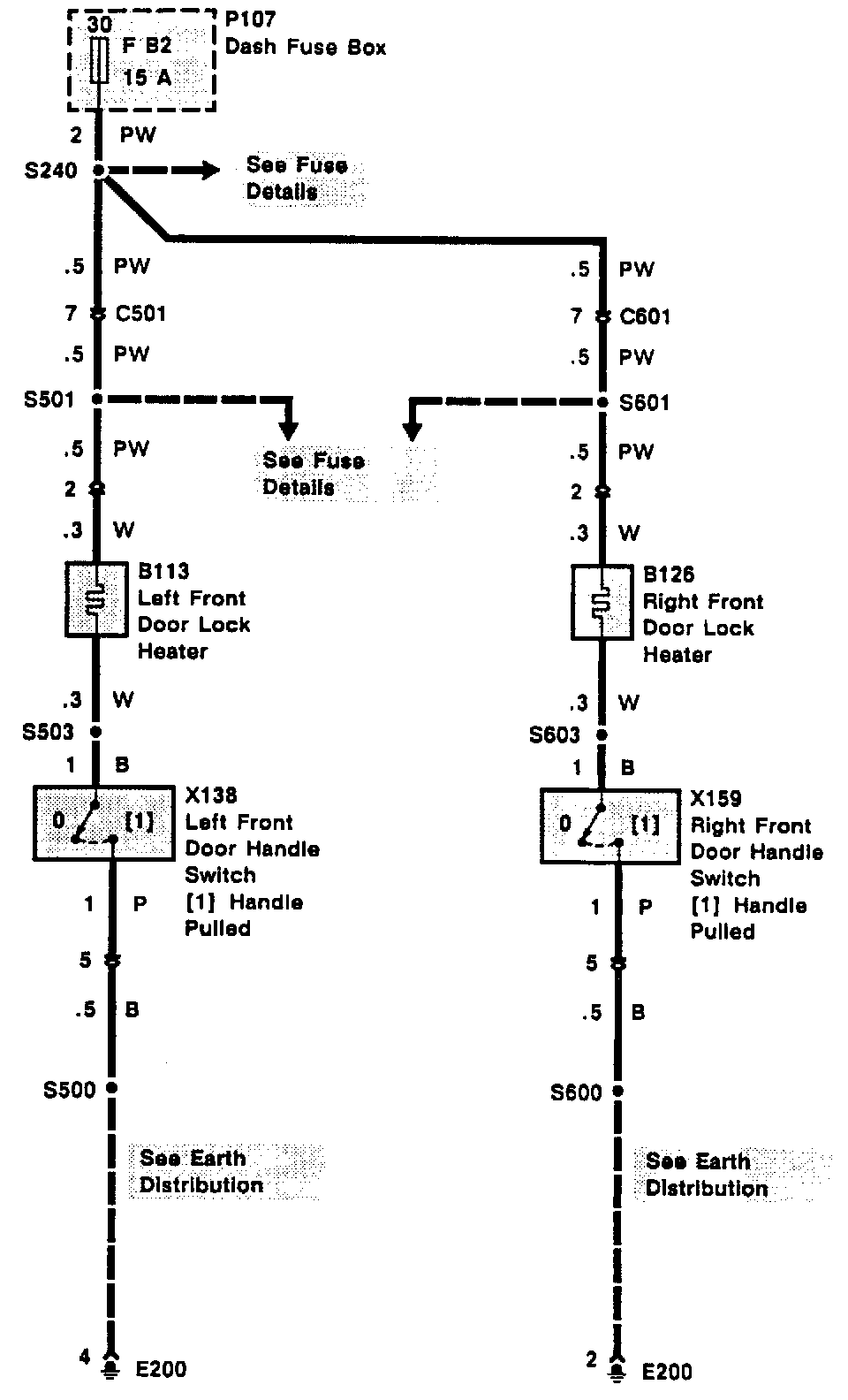

Door Lock Heater

Door Lock Heaters (L8-1):
