Blower Controls

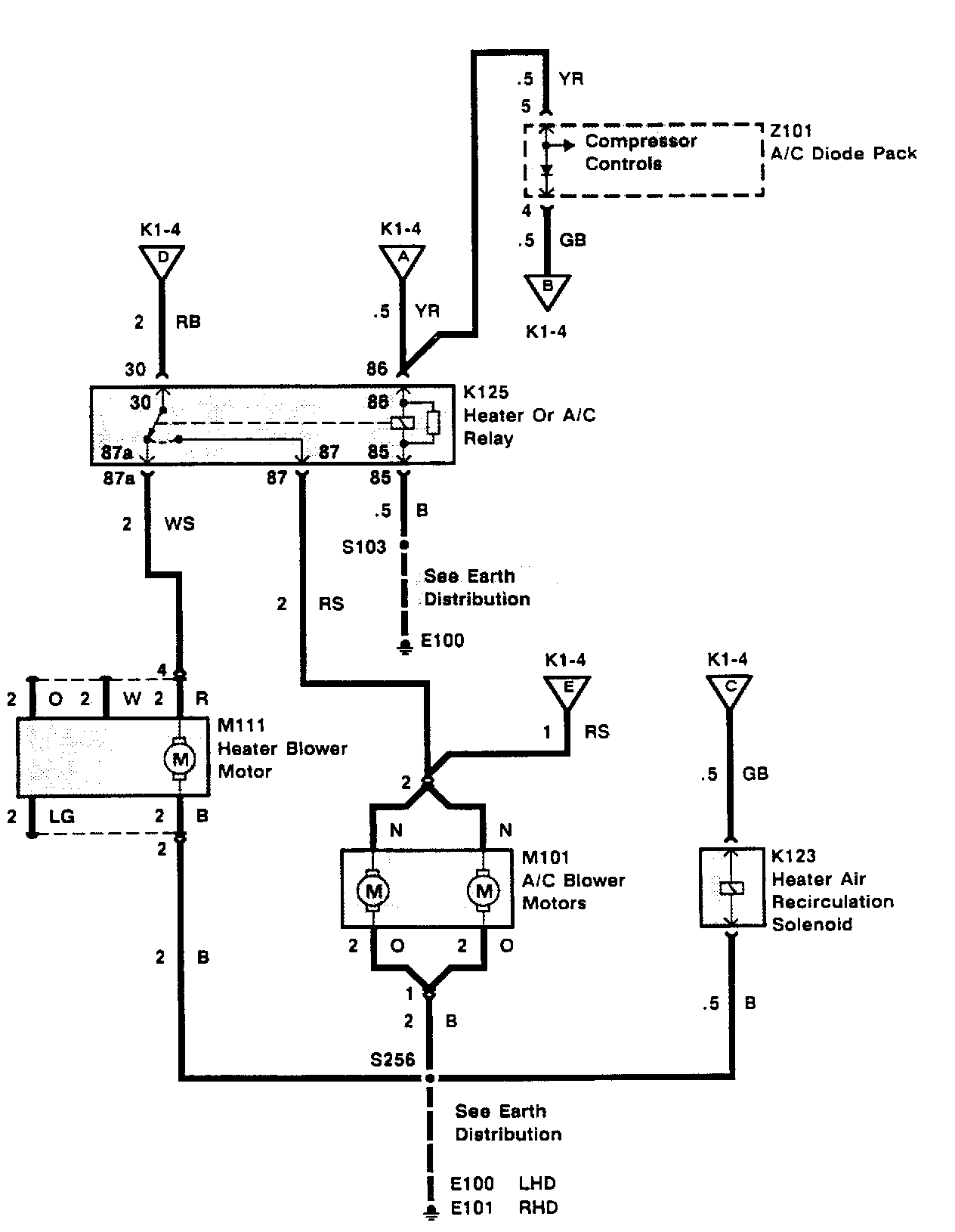

Blower Controls, Standard A/C (K1-4):

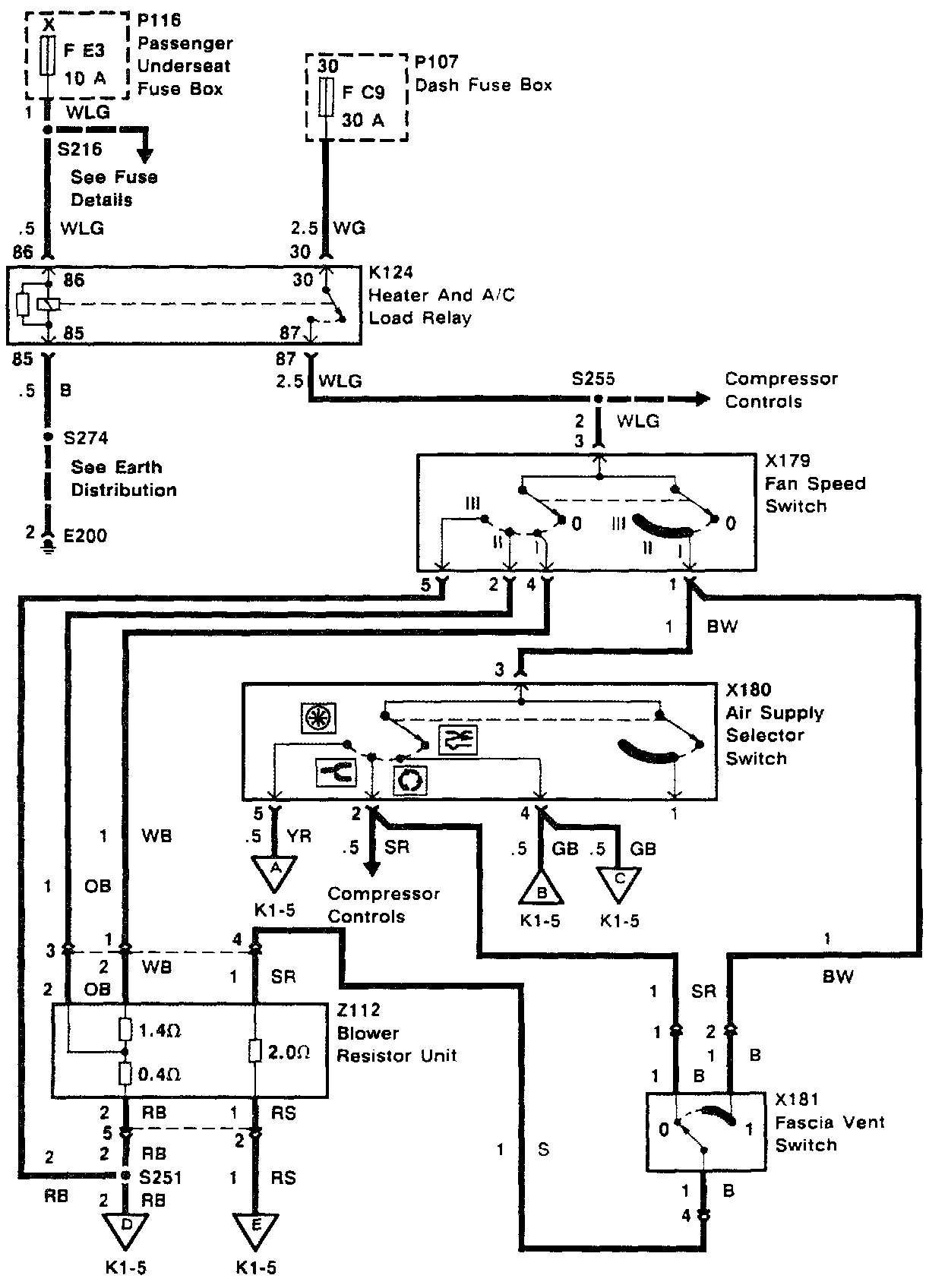

Blower Controls, Standard A/C (K1-5):

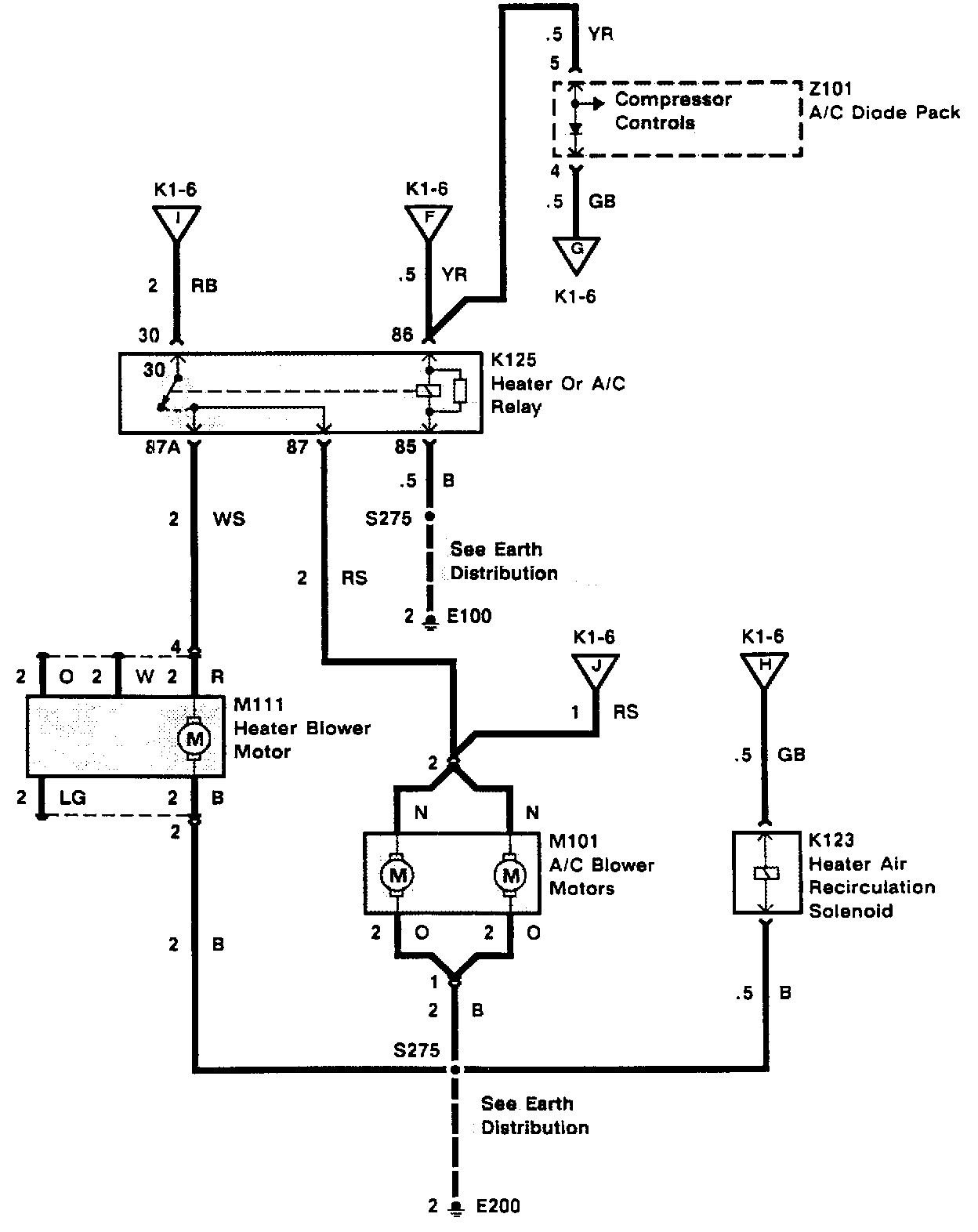

Blower Controls, Optional A/C (K1-6):

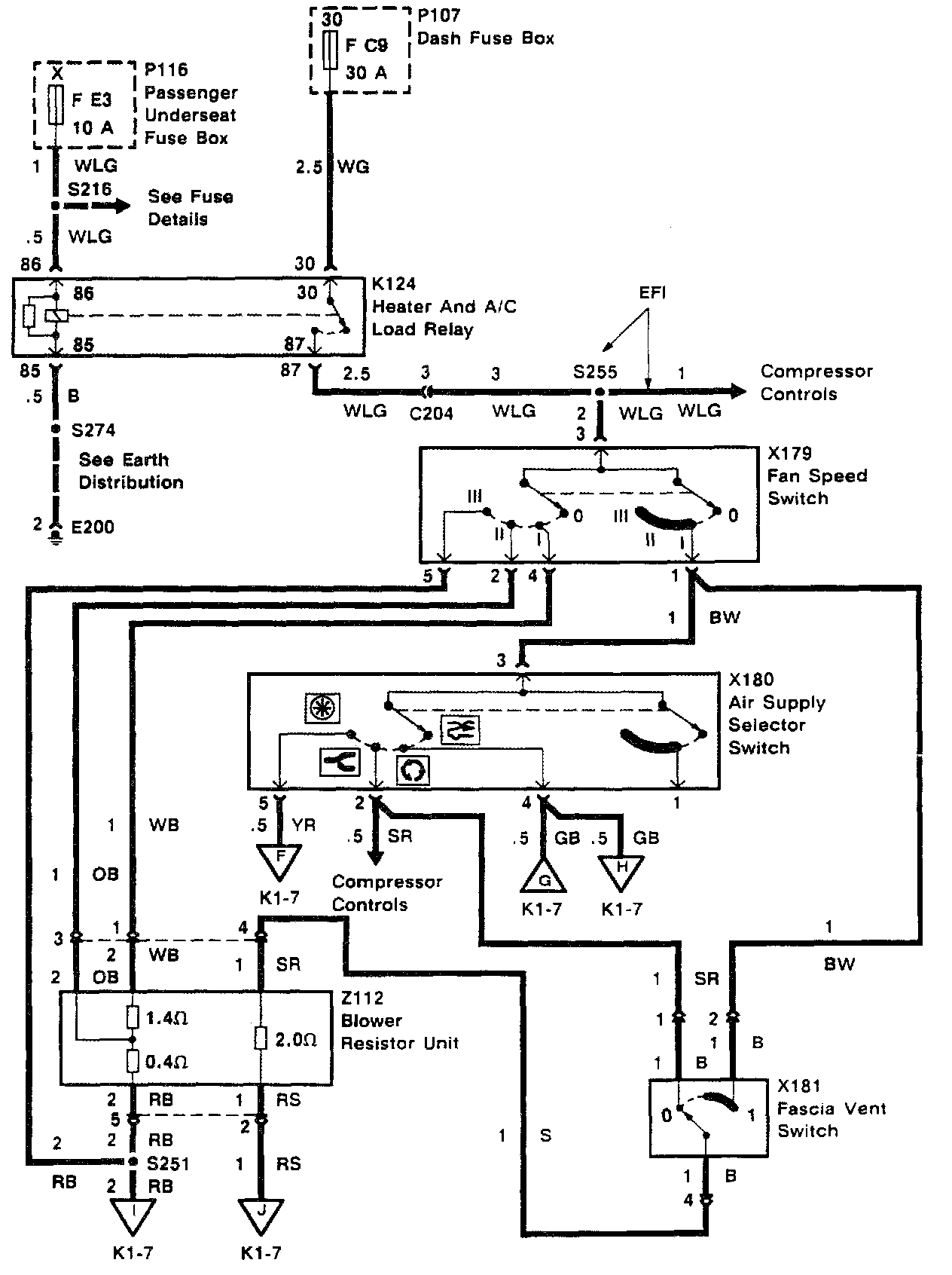

Blower Controls, Optional A/C (K1-7):

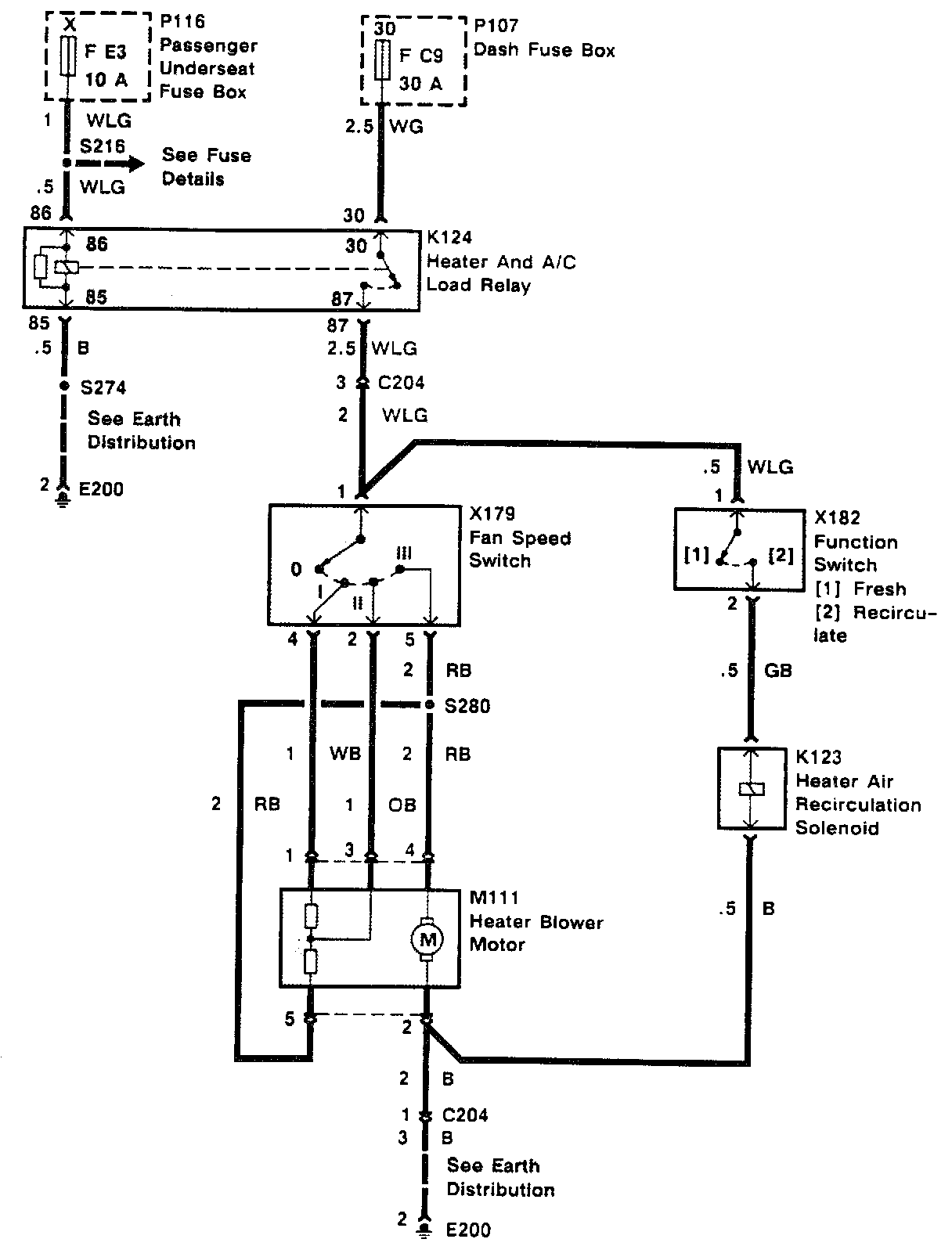

Blower Controls, Heater Only (K1-8):
