Warnings and Indicators

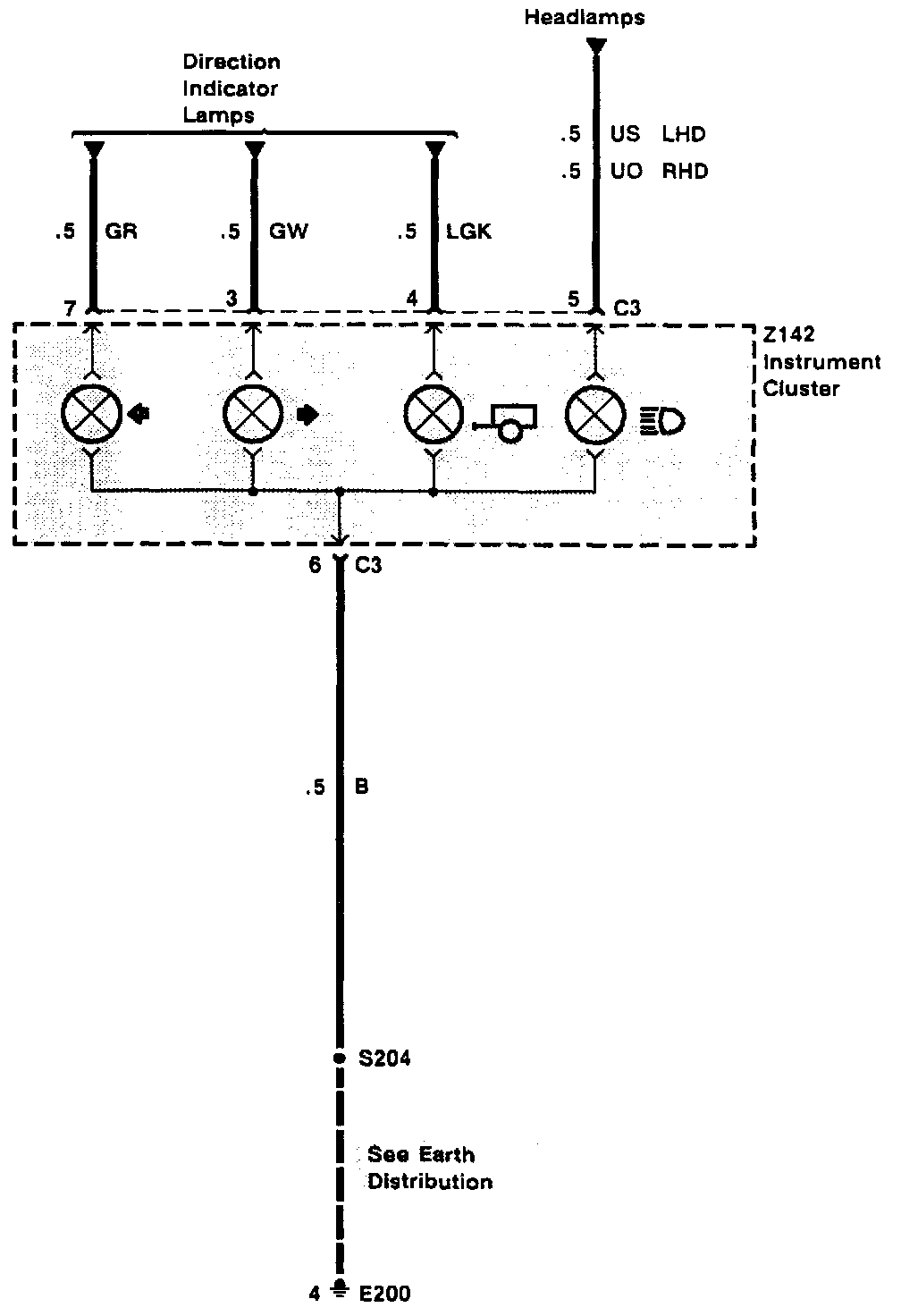

Warning And Indicators (E2-4):

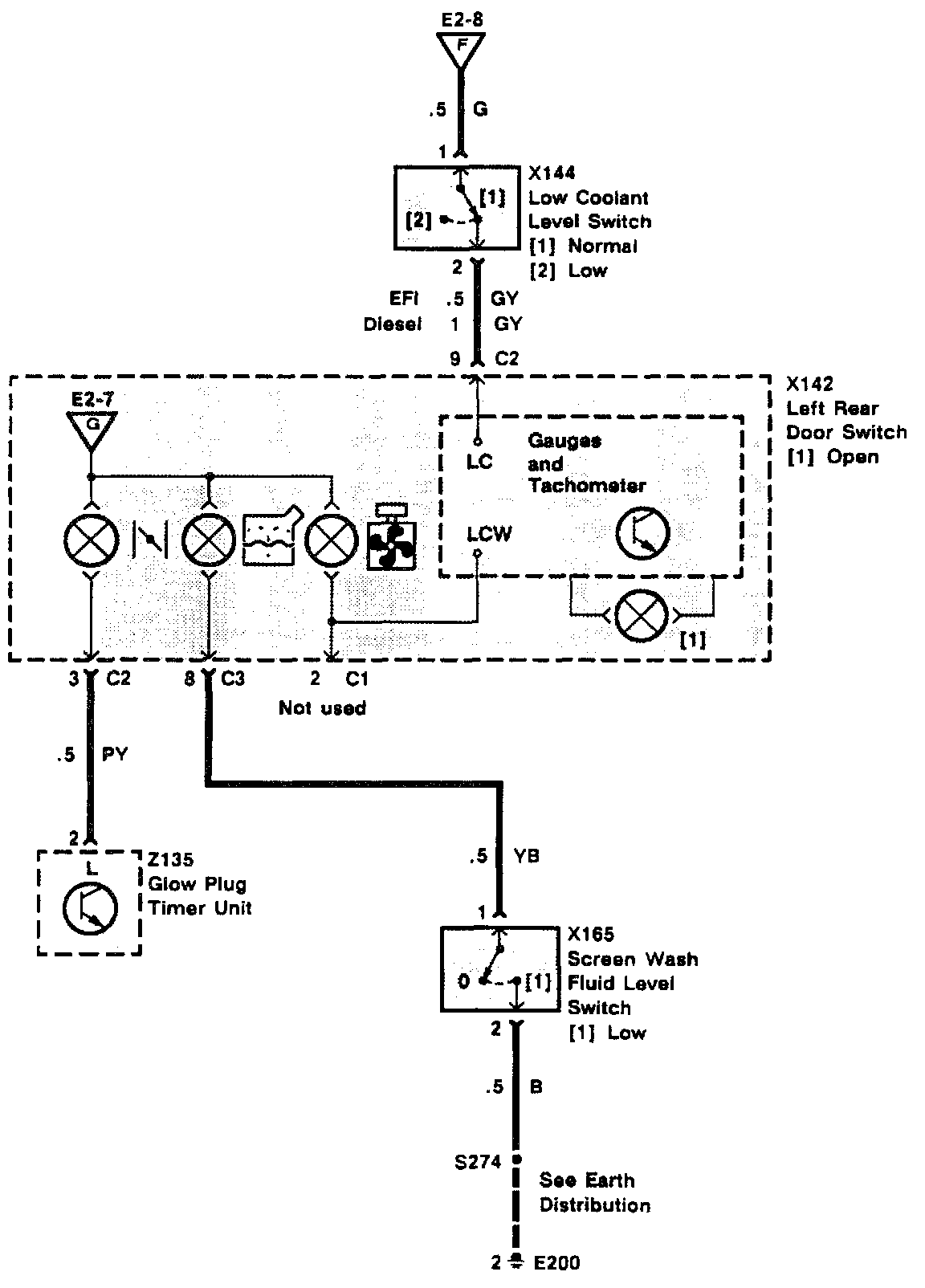

Warnings And Indicators (E2-5):

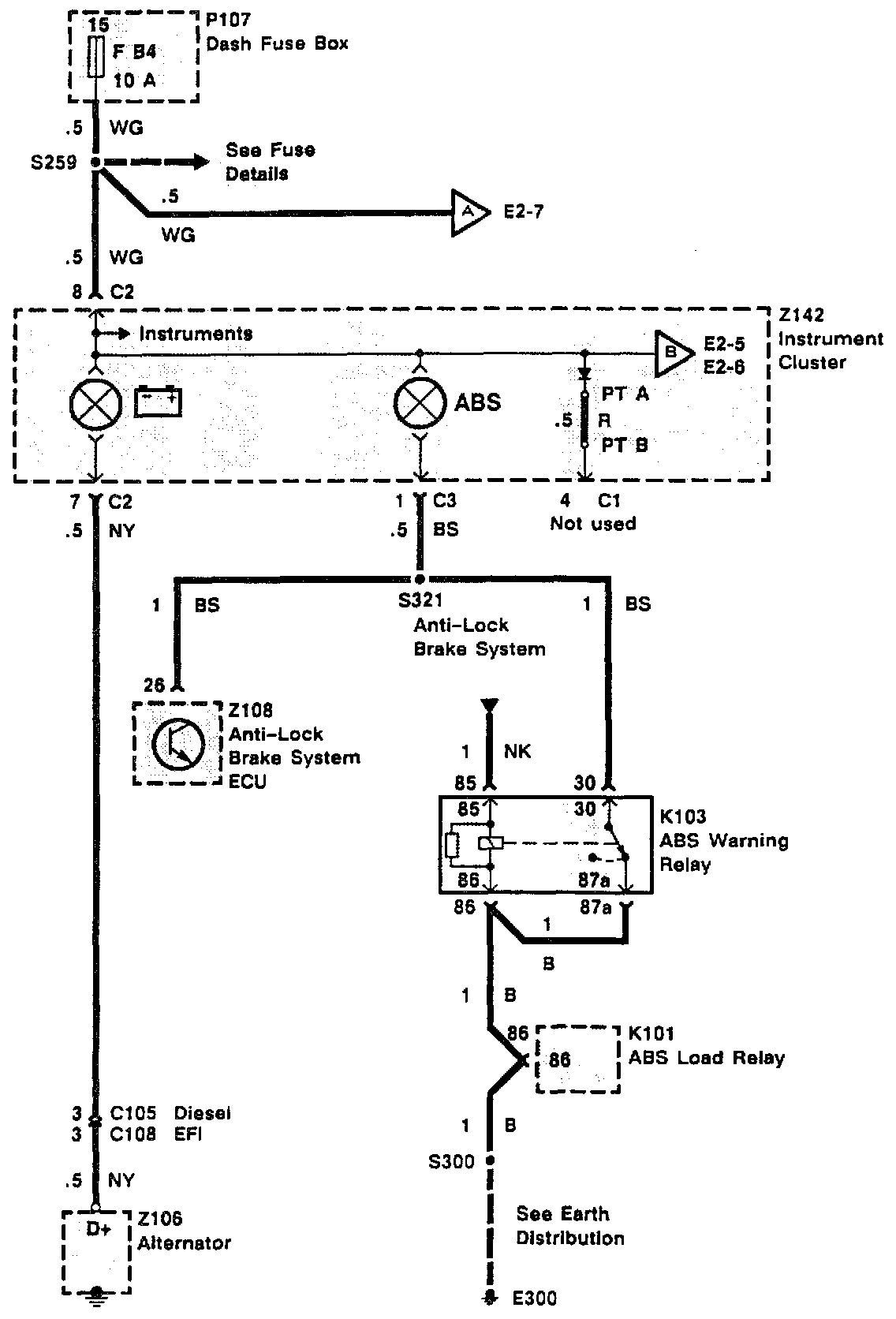

Warnings And Indicators (E2-6):

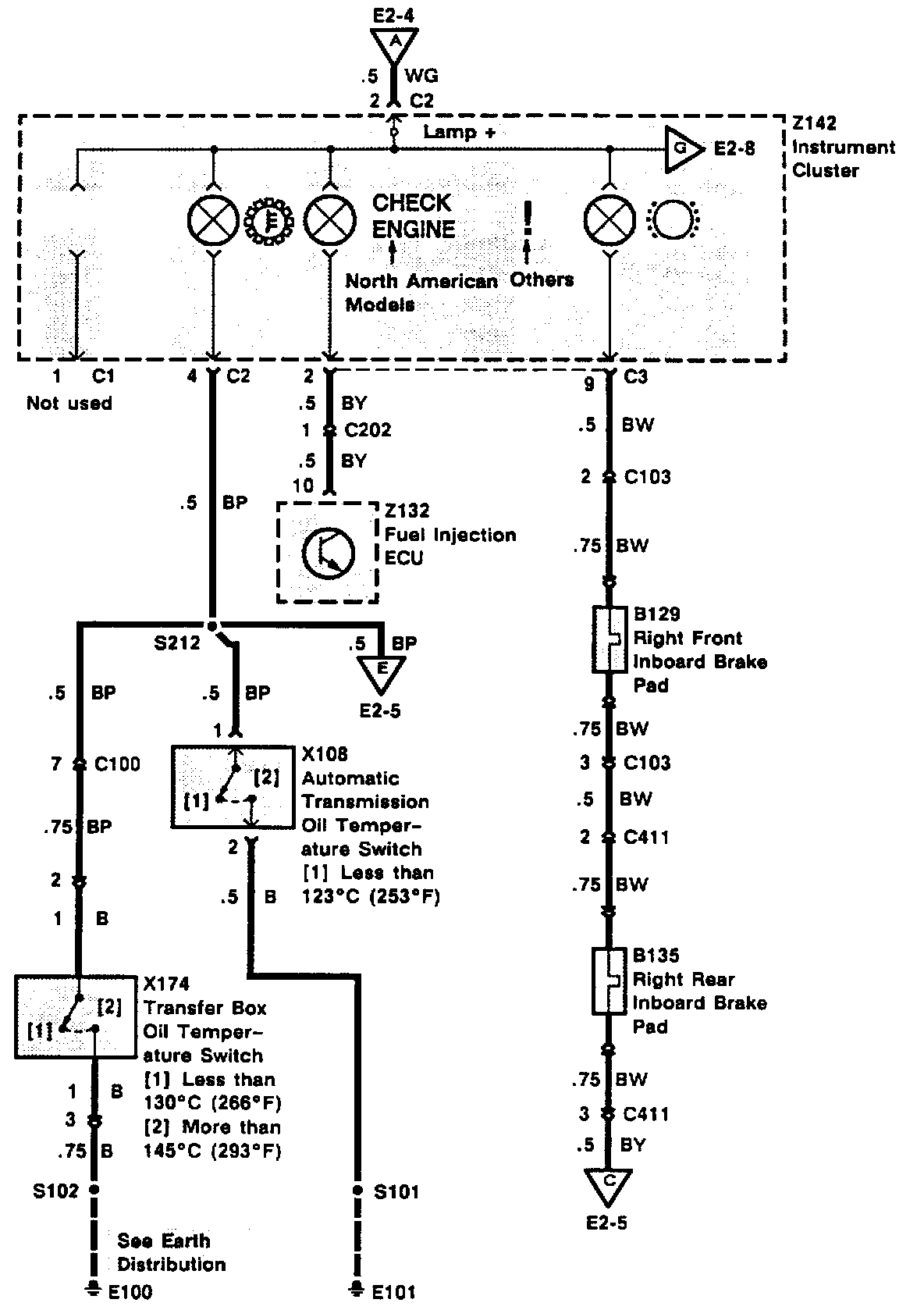

Warnings And Indicators (E2-7):

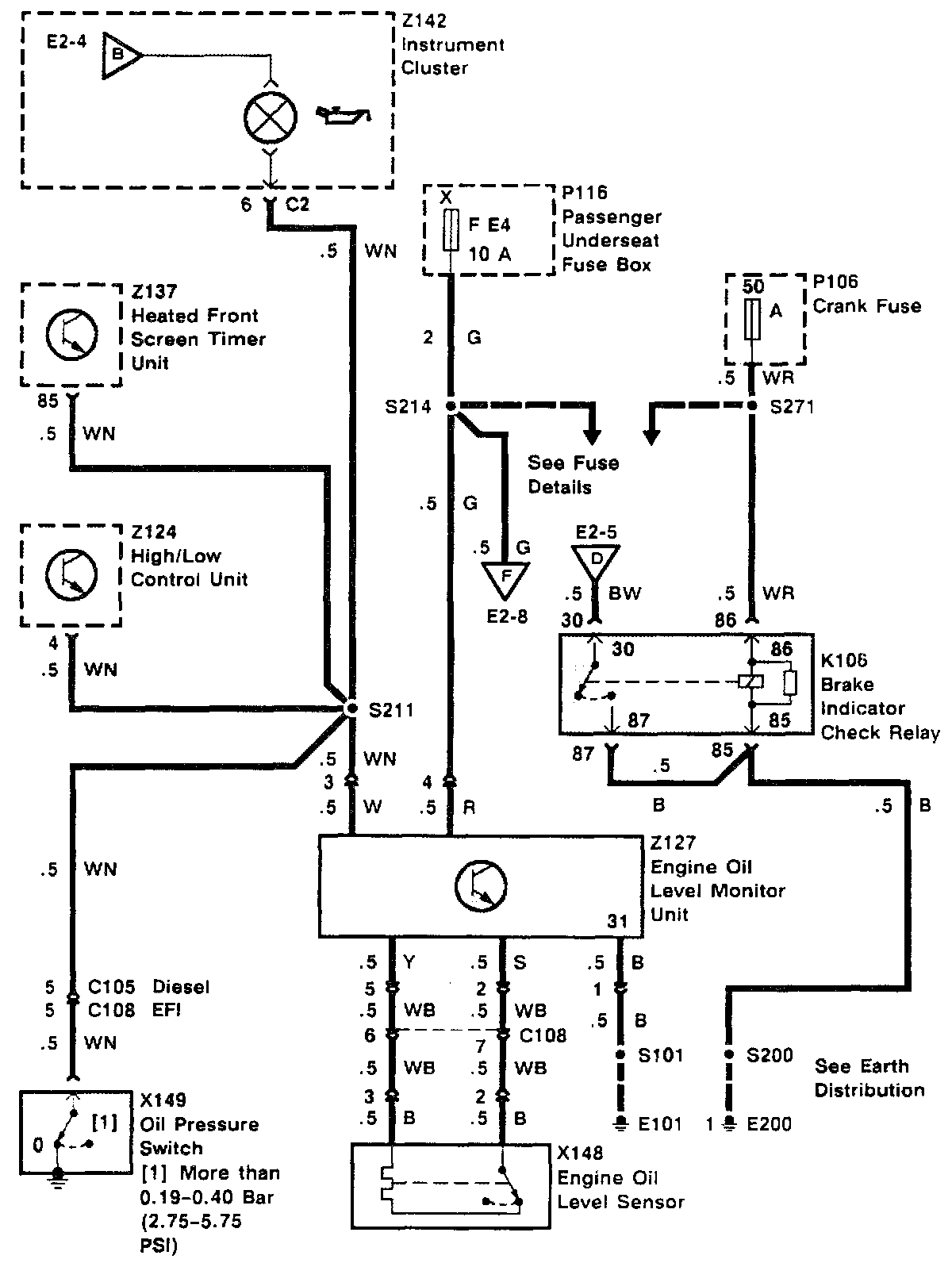

Warnings And Indicators (E2-8):

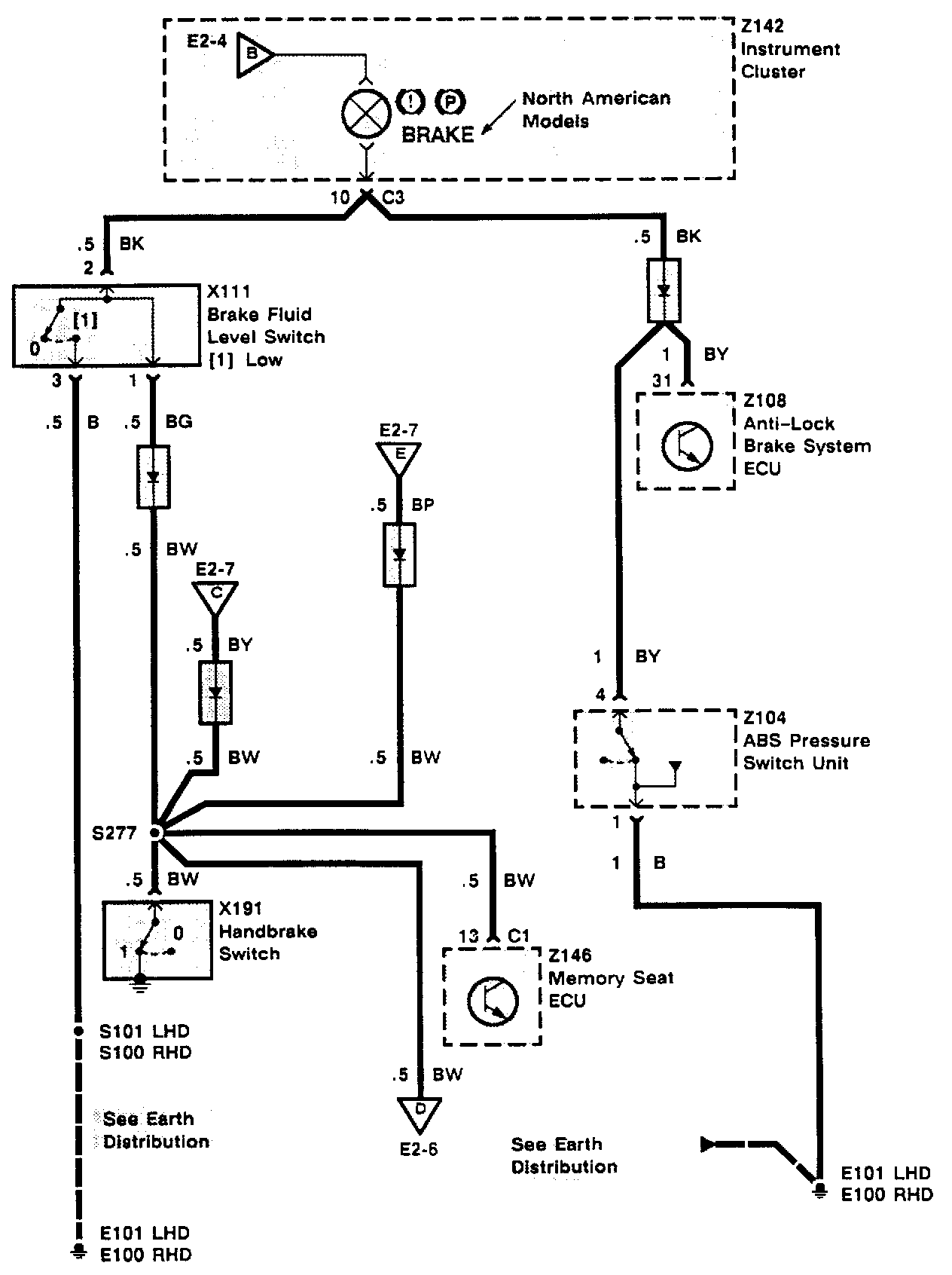

Warnings And Indicators (E2-9):
