Home >> Land Rover >> 1992 >> Range Rover (LH) V8-3.9L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

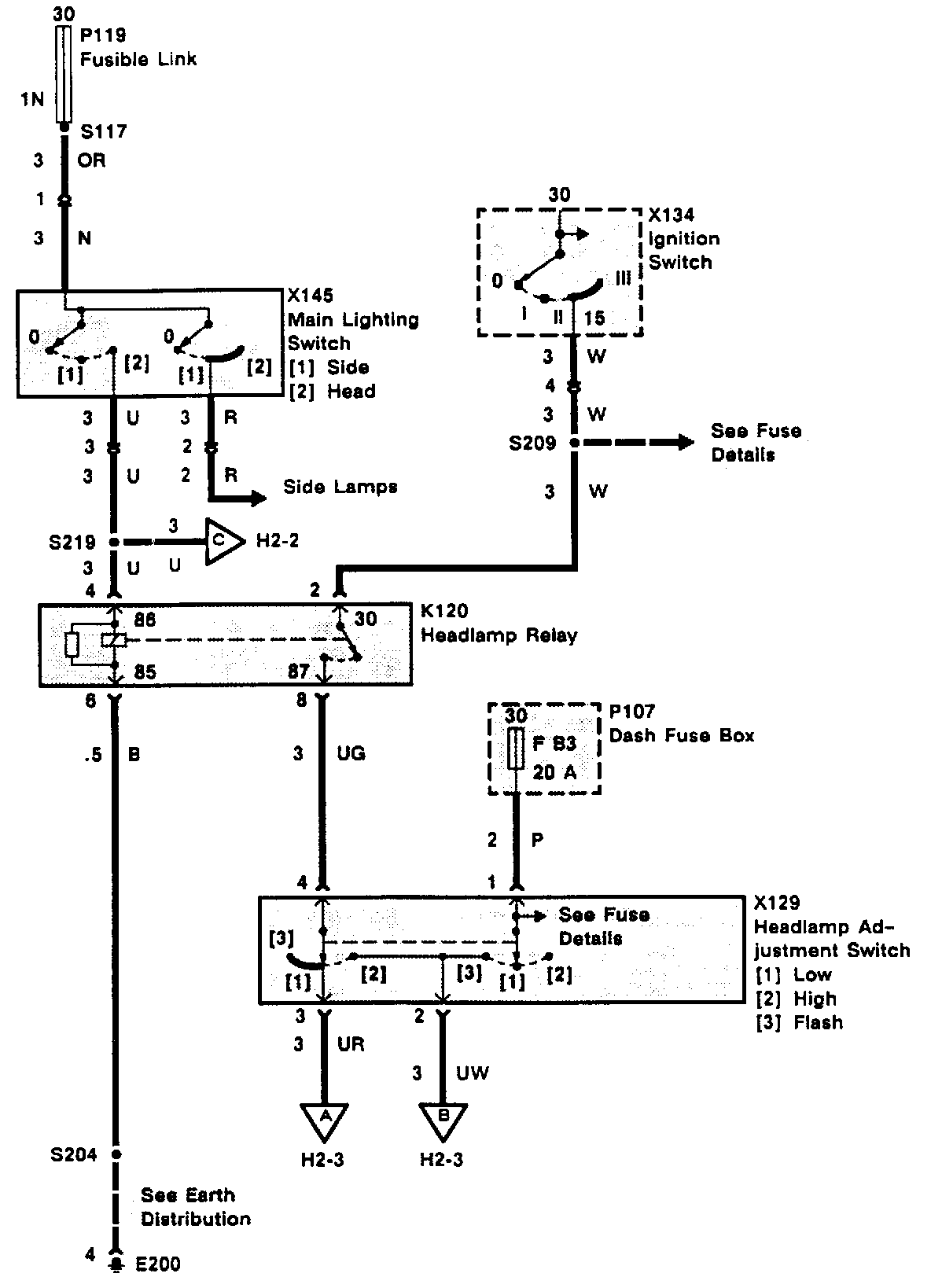

Headlamps W/check Unit (H2-1):

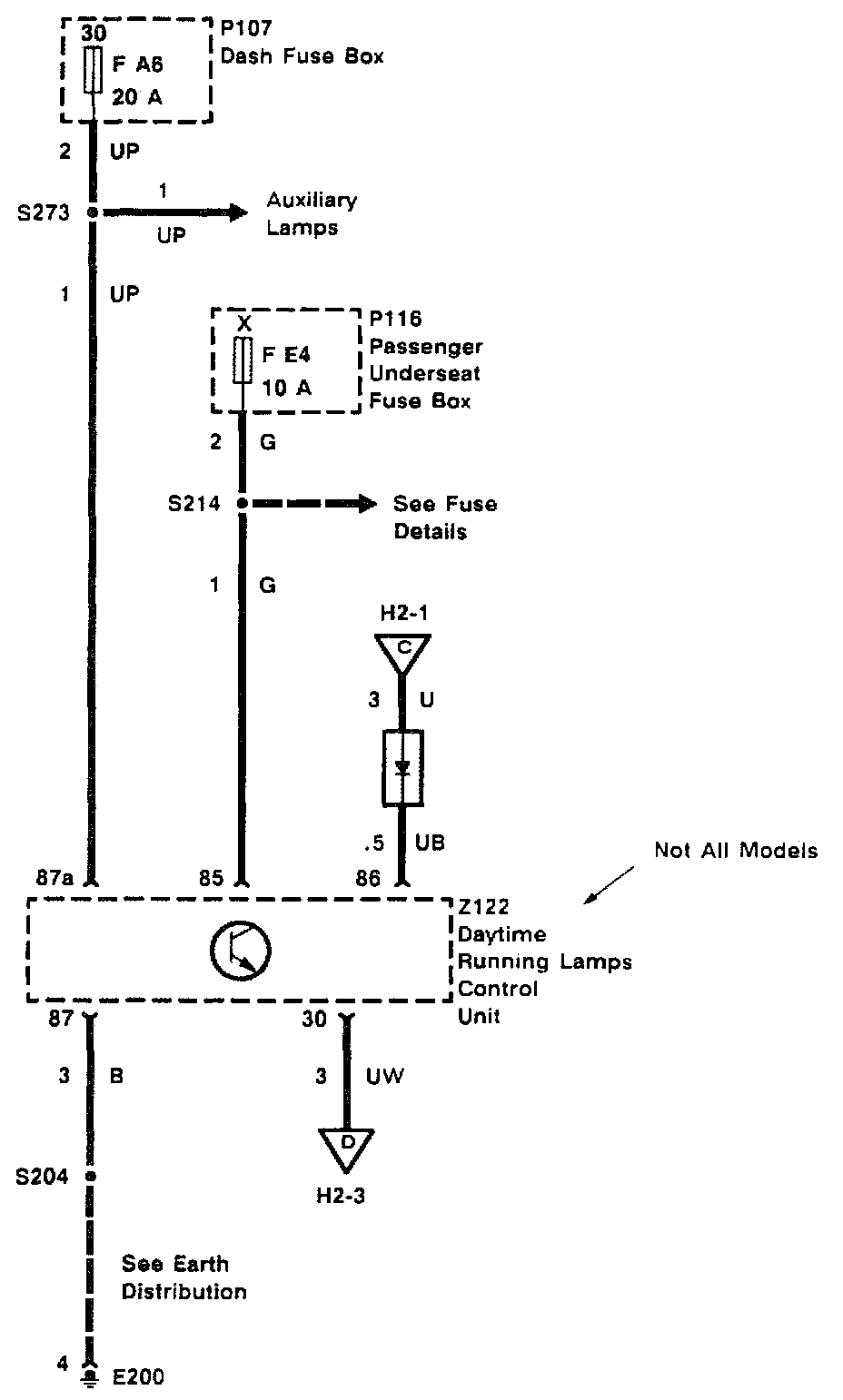

Headlamps W/check Unit (H2-2):




Headlamps W/check Unit (H2-3):
