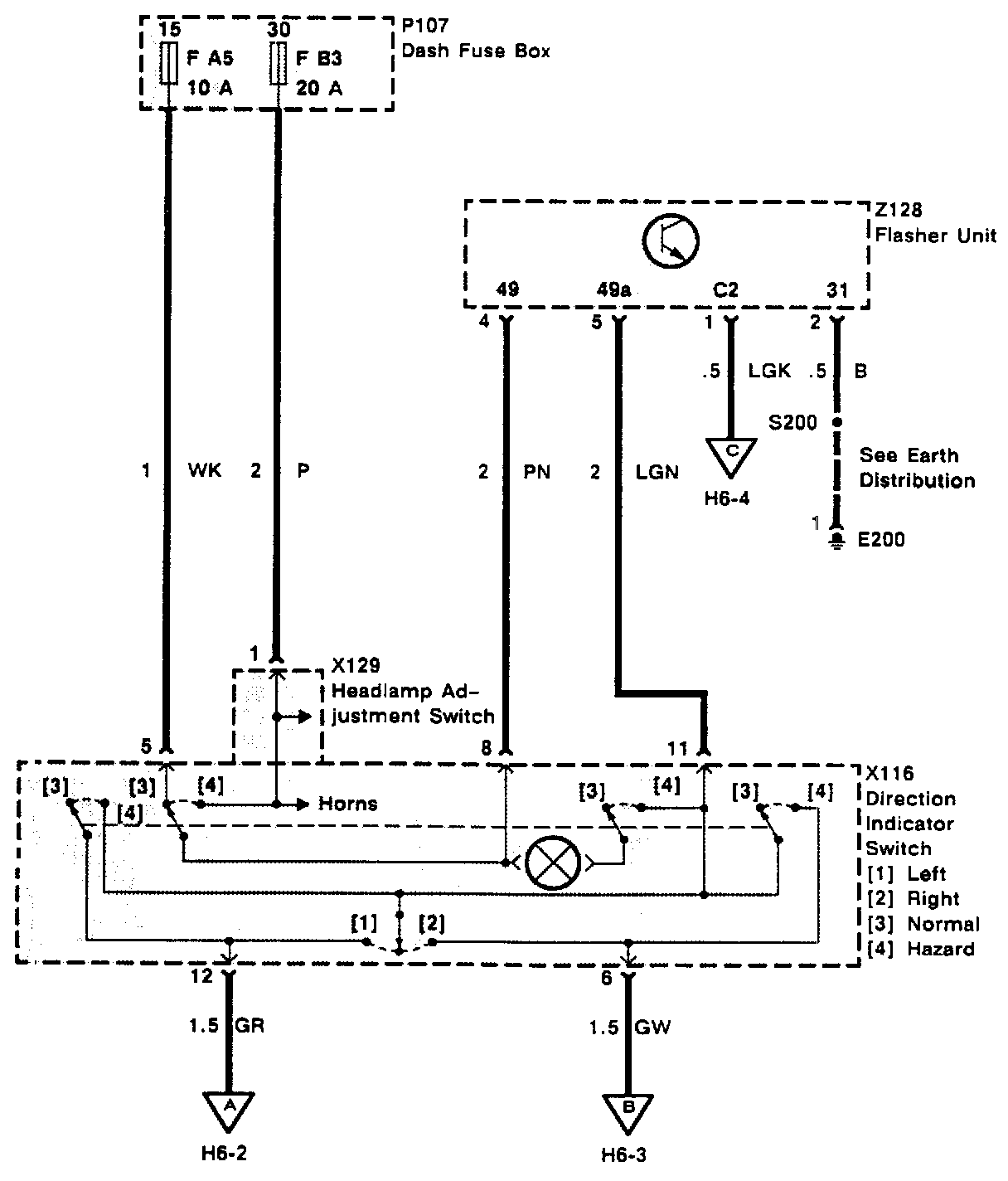

Direction Indicator Lamps (H6-1):

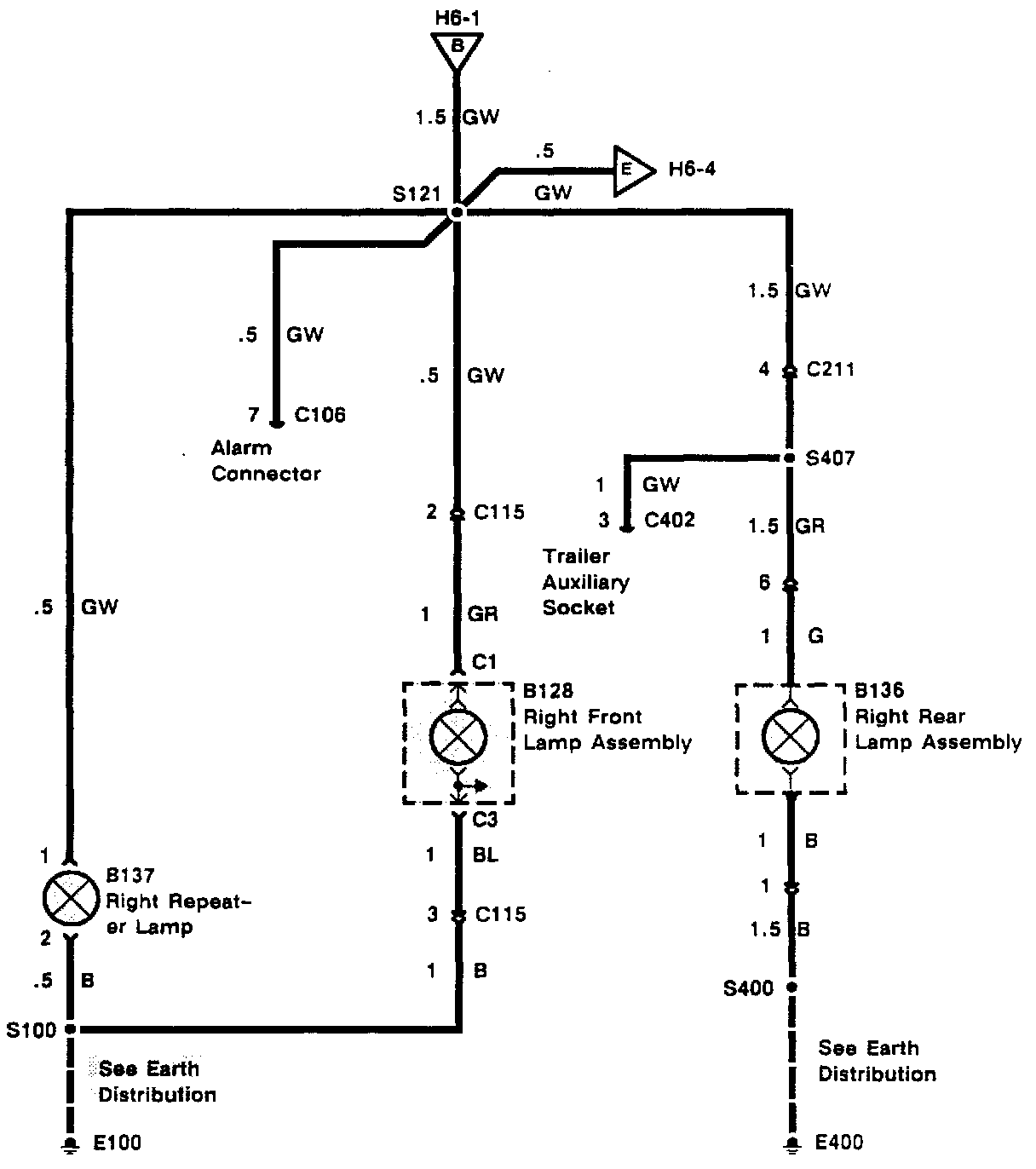

Direction Indicator Lamps (H6-2):
Direction Indicator Lamps (H6-3):

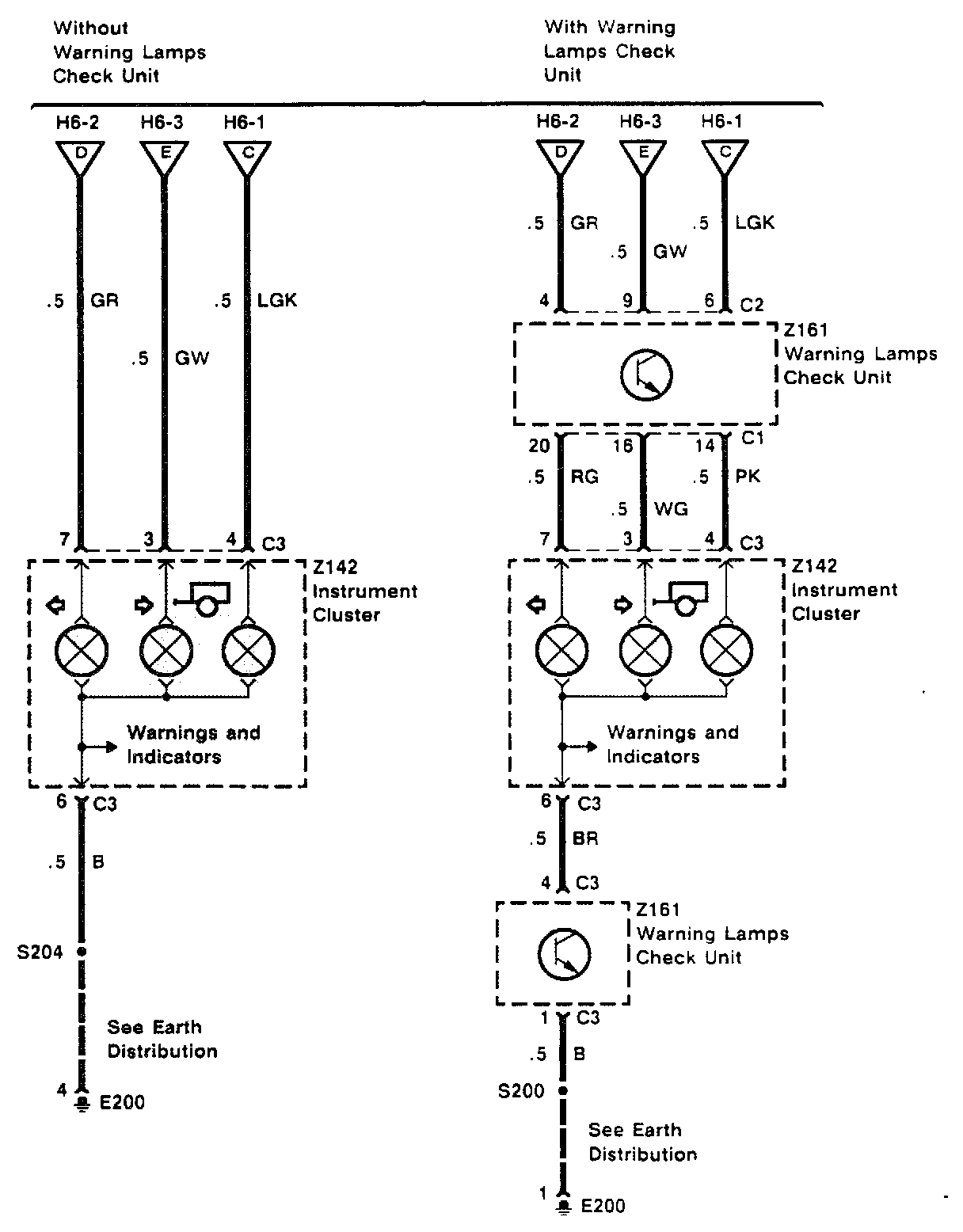

Direction Indicator Lamps (H6-4):
