With ABS

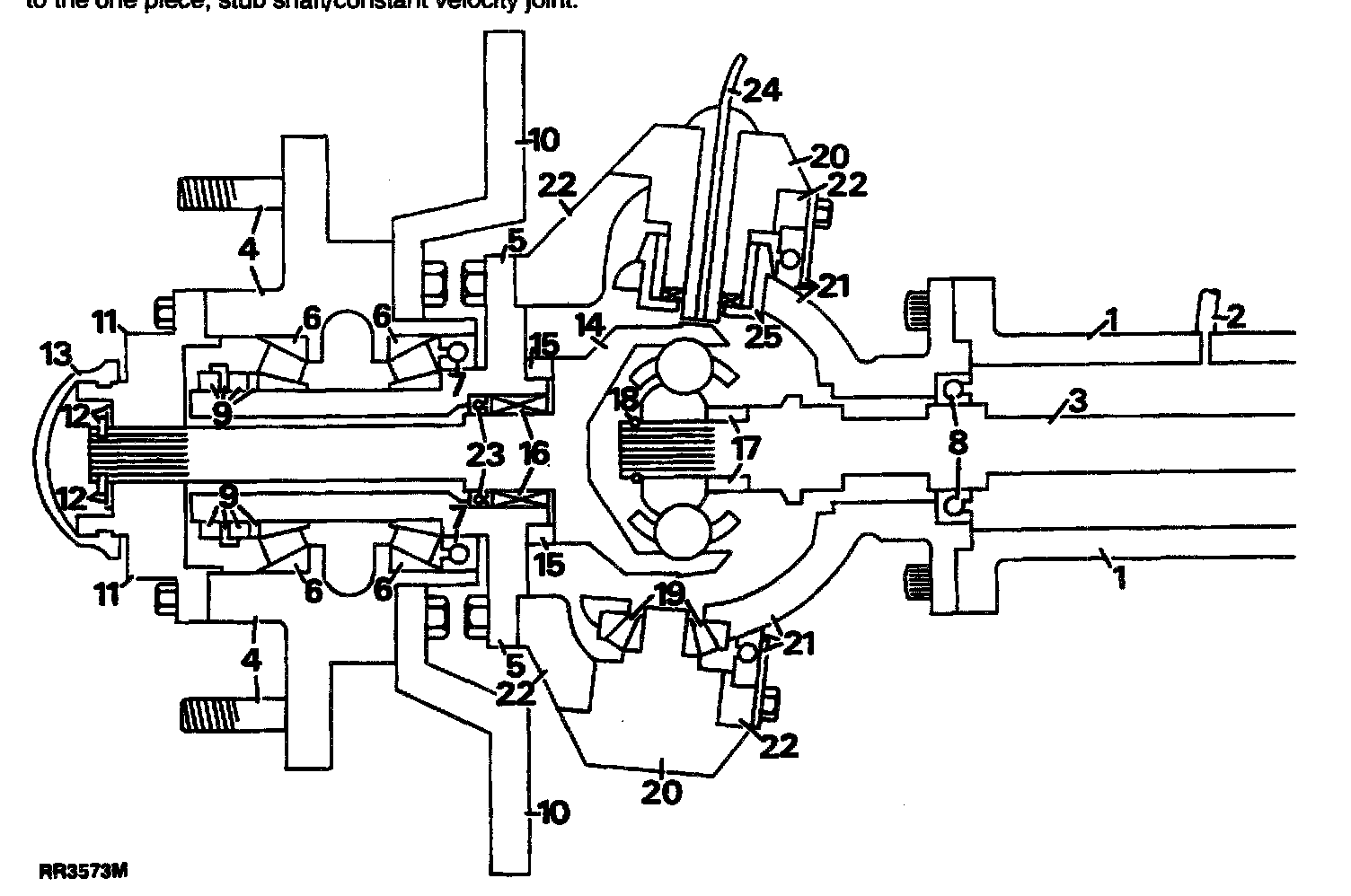

Front axle - ABS brakes






1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Stub axle
6. Wheel bearings (2)
7. Inner and outer hub seals
8. Axle shaft seal
9. Hub lock plate, thrust washer and nuts (2)
10. Brake disc
11. Drive flange
12. Shim washer and cirdip
13. Dust cap
14. Constant velocity joint/shaft
15. Thrust collar for CV joint
16. Roller bearing
17. Spacer
18. Circlip
19. Bottom swivel taper bearing
20. Top and bottom swivel pins
21. Spherical housing, seal and retainer
22. Swivel housing
23. Consant velocity shaft seal
24. ABS pickup (electrical connection)
25. 'Rialco' bush see note below

Note: Ref item 25. Early ABS axles are fitted with a 'Rialco' bush and thrust washer. Later axles have a 'Rialco' bush and roller thmst bearings as illustrated.
