Power Distribution
Power Distribution

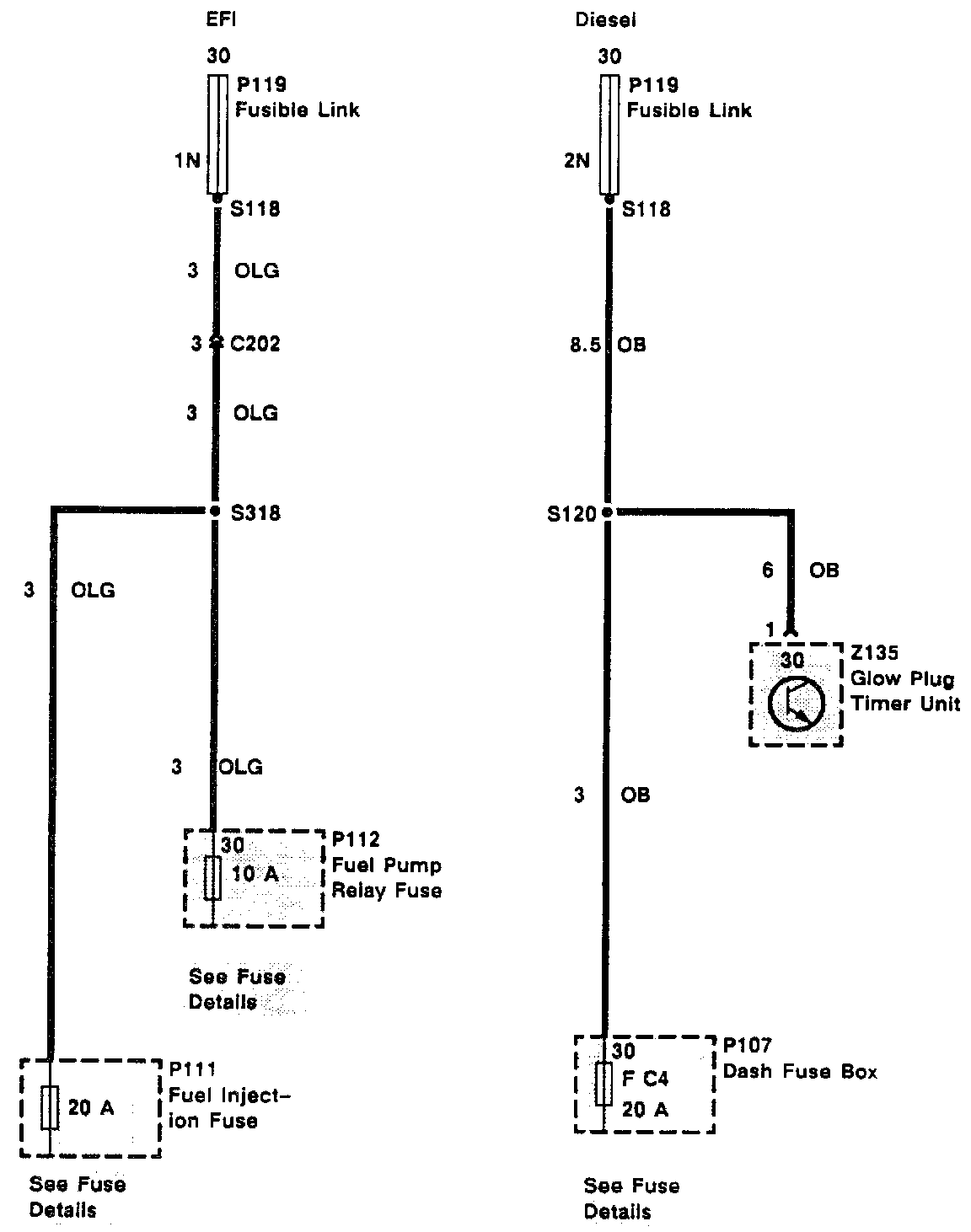

Power Distribution (Y1-1):

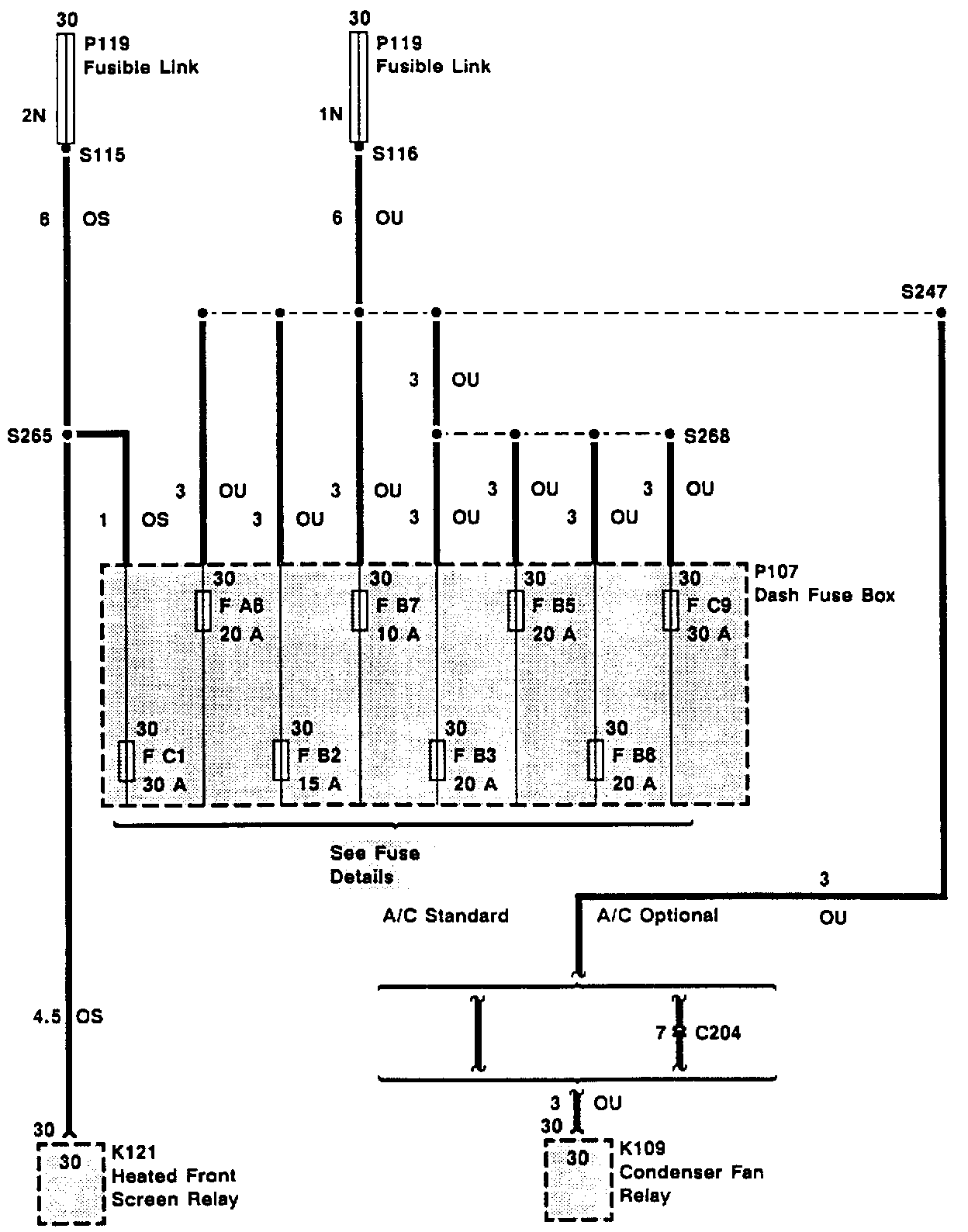

Power Distribution (Y1-2):

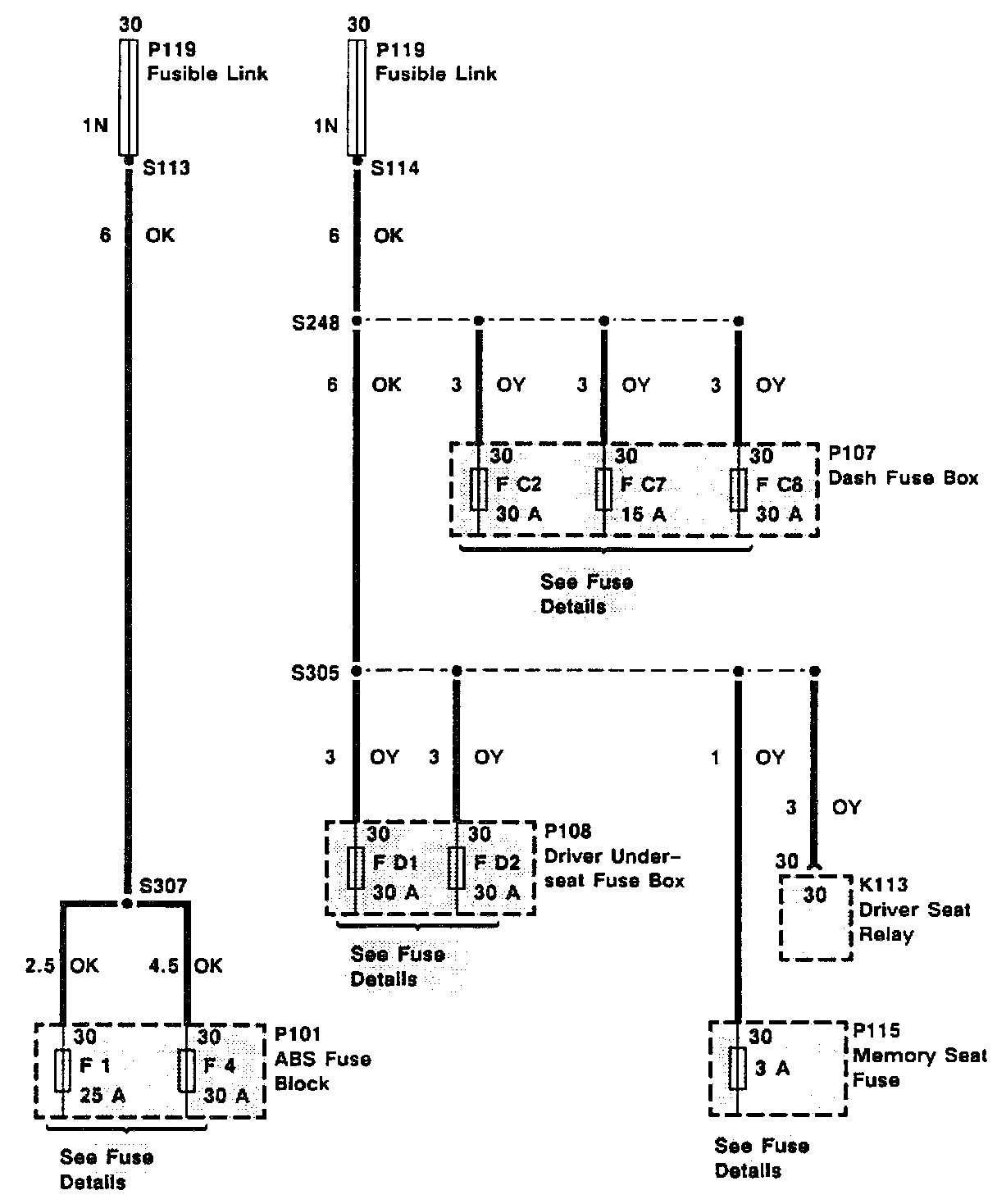

Power Distribution (Y1-3):
Power Distribution (Y1-4):
Power Distribution (Y1-5):
Power Distribution (Y1-6):
