Chassis / Radio Harness Connectors

Chassis / Radio Harness:

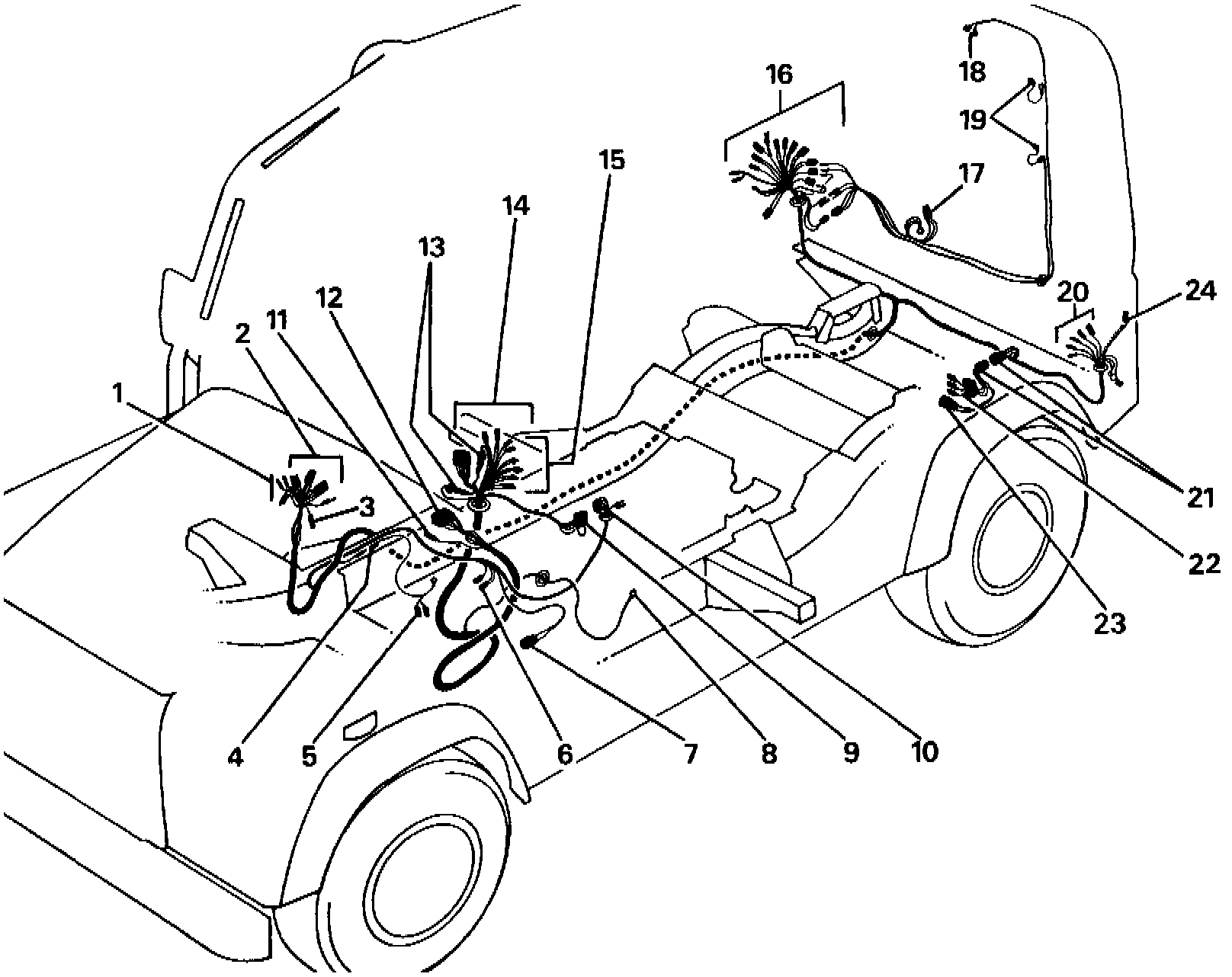

CHASSIS AND RADIO HARNESS CONNECTORS
1. Gearbox over temperature switch connection
2. Main harness connection
3. Transmission low oil connections
4. Center differential lock connections
5. Center differential lock switch
6. Reverse light connection
7. Speed sensor connection
8. Radio supply lead
9. Rear speaker connection
10. Rear speaker and seat belt connections
11. Supply to split charge circuit, 110 only
12. Main harness connection
13. Radio fuses
14. Radio connections
15. Speaker connections
16. Rear light connections
17. Rear wiper motor connections. 110 only
18. High level brake light
19. Heated rear window connections, 110 only
20. Rear tank connections, 110 only
21. Fuel tank cable connections
22. Fuel level indicator connections, 110 only
23. Fuel pump connection
