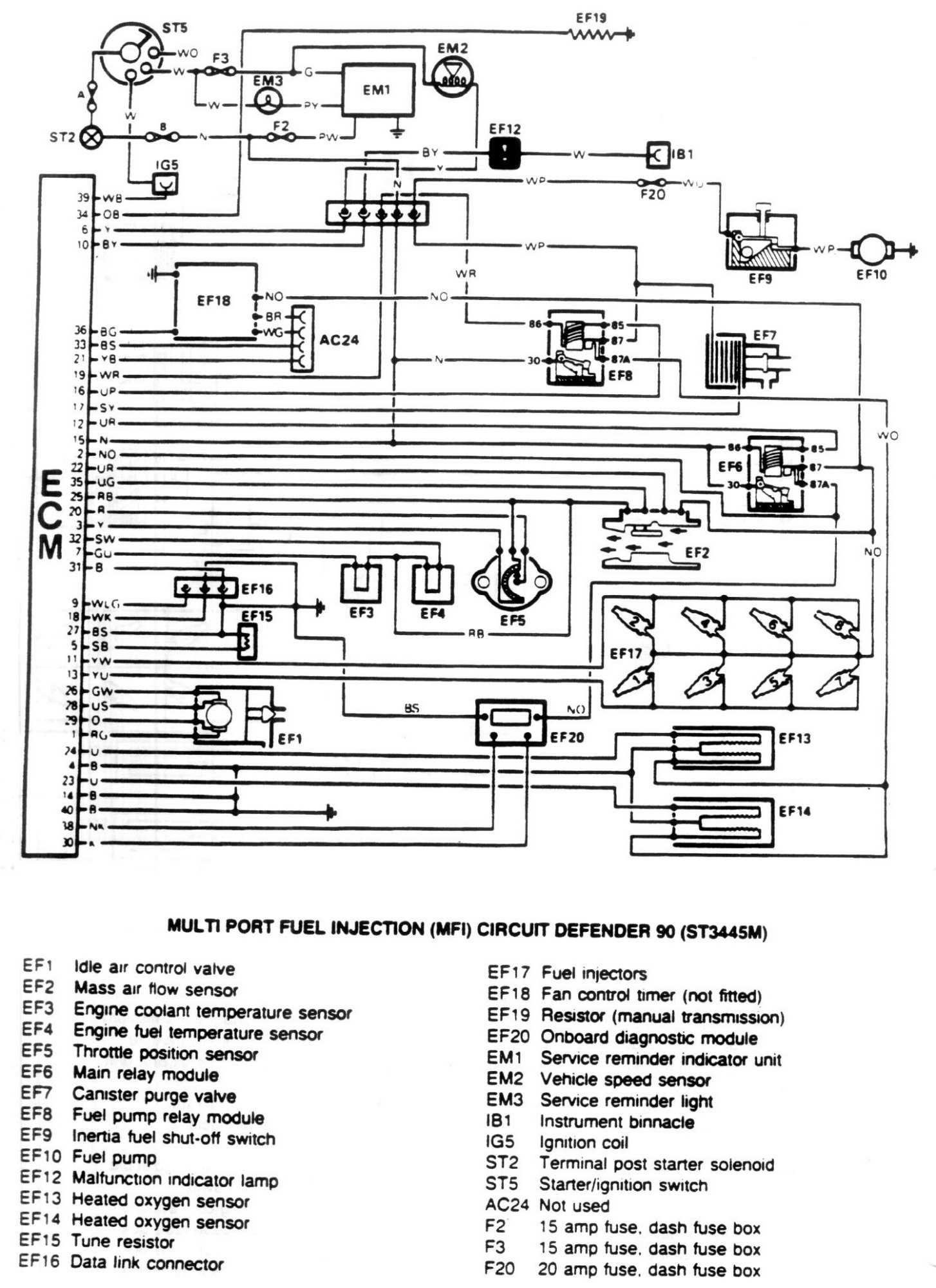

System Diagram

LEGEND
EF1 Idle air control valve
EF2 Mass air flow sensor
EF3 Engine coolant temperature sensor
EF4 Engine fuel temperature sensor
EF5 Throttle position sensor
EF6 Main relay module
EF7 Canister purge valve
EF8 Fuel pump relay module
EF9 Inertia fuel shut-off switch
EF10 Fuel pump
EF12 Malfunction indicator lamp
EF13 Heated oxygen sensor
EF14 Heated oxygen sensor
EF15 Tune resistor connector
EF16 Data link connector
EF17 Fuel injectors
EF18 Fan control timer (not fitted)
EF19 Resistor (manual transmission)
EF20 On-board diagnostic module

EM1 Service reminder indicator light
EM2 Vehicle speed sensor
EM3 service reminder light

IB1 instrument binnacle

IG5 Ignition coil

ST2 Terminal post starter solenoid
ST5 Starter/ignition switch

AC24 Not used

F2 15 amp fuse. dash fuse box
F3 15 amp fuse. dash fuse box
F20 20 amp fuse. dash fuse box
