Fuse and Fusible Links

Main Fuse Box

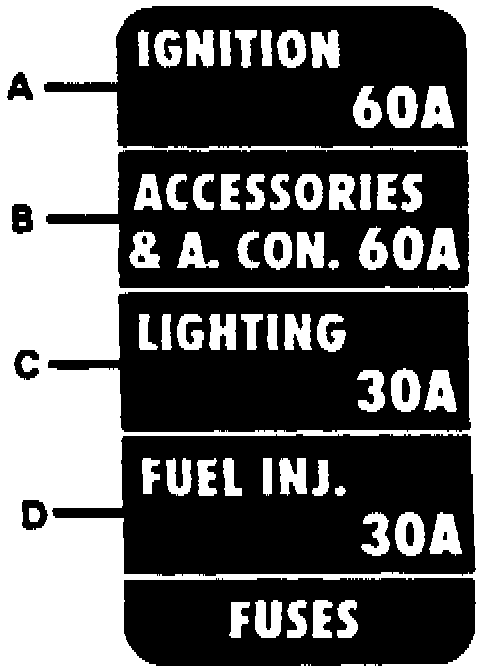

Main Fuse Box:

The main fuse box is located within the engine bay, attached to the left hand side of the bulkhead. The fuse box has four fuses, designated A,B,C and D for the purpose of these circuit diagrams. All wires from the fuse box are colored brown.

Fuse Circuits or Dash Fuse Served
A All Ignition Fed Circuits inc. dash fuse #3-4-5-16-17-18-19
B Battery Feed Circuits inc. dash fuse #1-2-13-14-15
C Lighting Circuits inc. dash fuse #6-7-8-9-10-11-12
D MFI-Fuel Inj. inc. dash fuse #20


Auxiliary Fuse Box

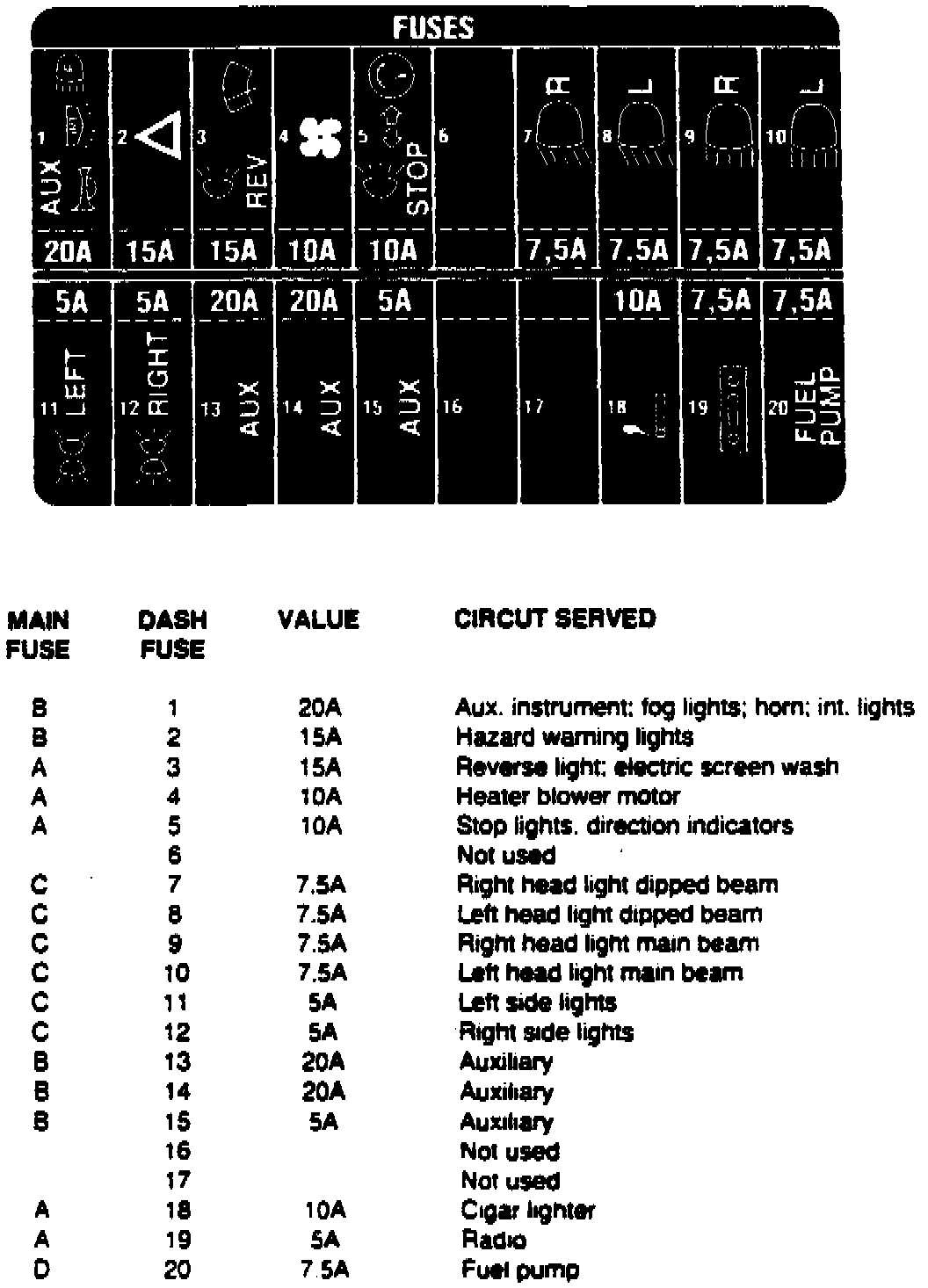

Dash Fuse Box:

The auxiliary fuse box is located below the center of the dash. The fuse box has 20 fuses, designated 1 to 20; these are identified as F1,F2 etc. in the circuit diagrams. The illustration and associated table details the circuits protected by the different fuses and the colors of the wires linked to the terminals.


In addition to the main and auxiliary fuse boxes, in-line fuses are used in the following circuits:

R1 Radio amplifier feed - 5A
C16 Air conditioning fan - 30A
R2 Radio trigger circuit - 2A
