Fuel Pump - Component Replacement

12/13/96

19/04/96/US

SUBJECT:
Fuel Pump Component Replacement

MODEL:
Range Rover Classic

AFFECTED VEHICLES:
LP
LH 464554 to 647645
LJ
LD

DETAIL

Should a fuel pump require replacement on a vehicle within the above VIN range, both parts listed below will be required. The original style of fuel pump fitted to the vehicle is no longer available as a spare part. The adapter harness will permit replacement of the older style pump with the newer component.

NOTE:
Vehicles built after the above VIN range do not require the adapter harness, however the new fuel pump ESR 3926 can be used.

ACTION REQUIRED

Replace fuel pump with new component and adapter harness, if required.

PARTS INFORMATION

ESR 3926 Fuel pump

STC 3683 Adapter harness

PROCEDURE

Refer to the Workshop Manual section 19, pages 20 and 21.

Additional information for fitting of the adapter harness:

1. Insert fuel pump into tank and connect fuel lines to pump as described in Workshop Manual.

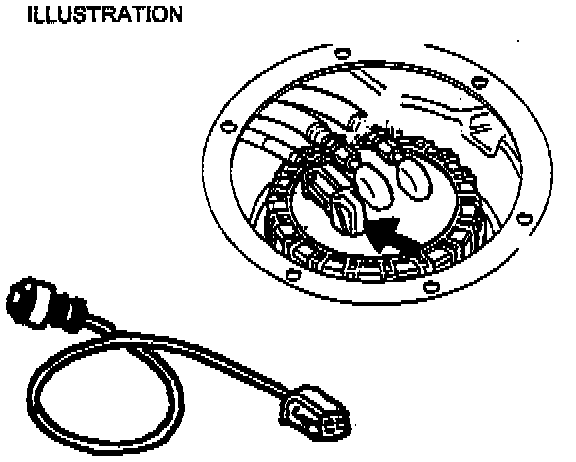

2. Connect link harness STC 3683 to sender unit on top of fuel pump. (Arrow in illustration)

3. Connect other end of adapter harness to the round 3 pin plug of the original electrical harness.

WARRANTY
Normal warranty policy applies.

COMP.CODE

SRO
