Firing Order
Firing Order

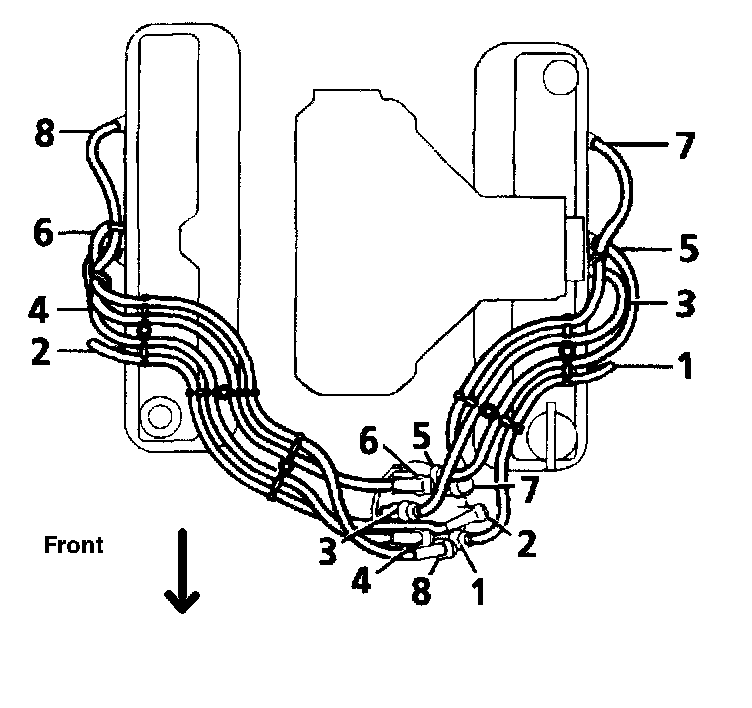

Firing order
1-8-4-3-6-5-7-2
No. 1 cylinder location - pulley end of left bank.
