Sunroof Headliner Assembly

Sunroof Headliner Assembly

Remove
1. Remove sunroof assembly.

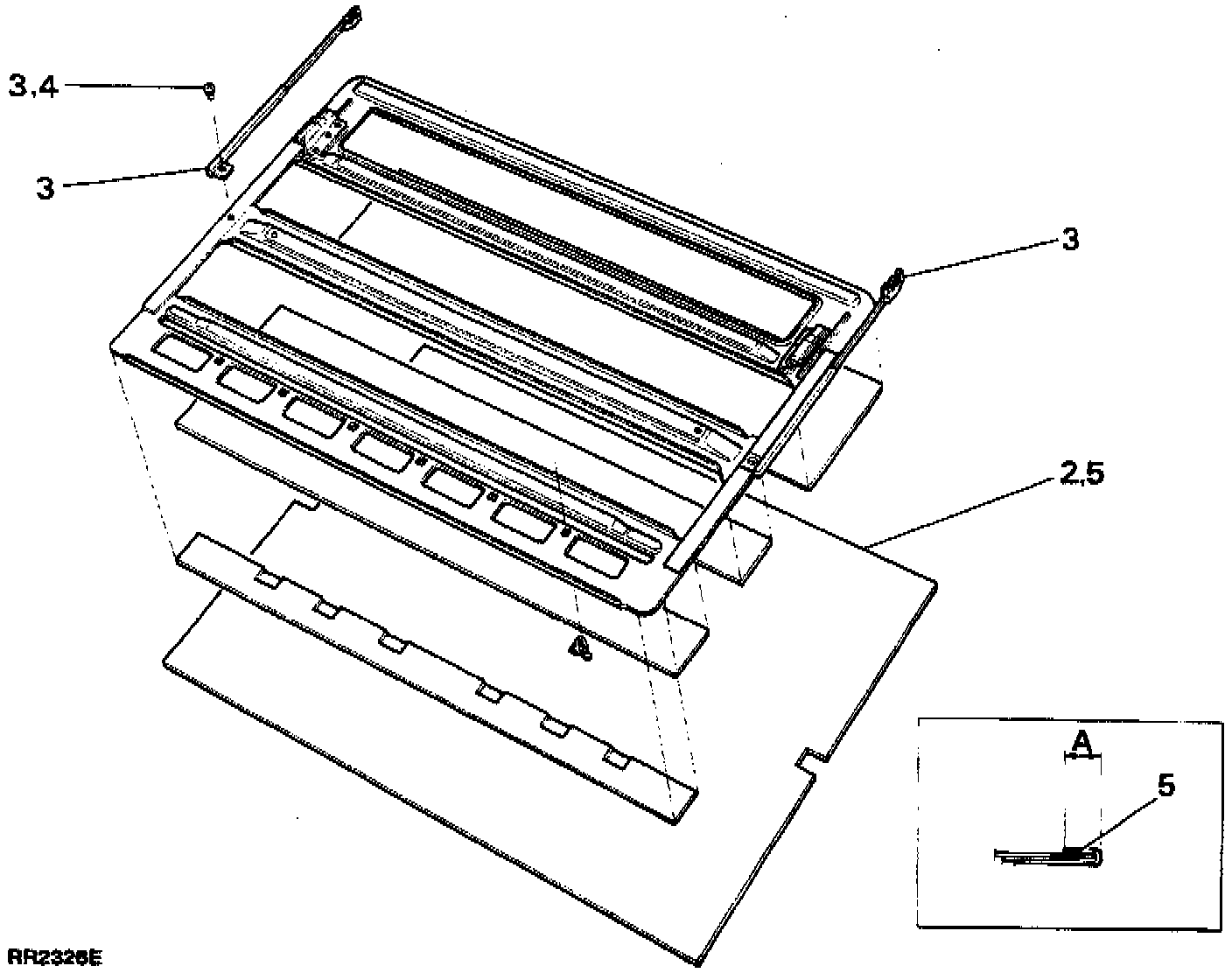

Sunroof Headliner Frame:

2. Remove the covering from frame assembly. Note that it is not normally necessary to remove the three pads and insulation pad shown.
3. If required: remove water channel by unclipping connecting arms. Drill out rivets securing connecting arms to frame.
4. Secure connecting arms to frame using suitable rivets before retrimming frame.
5. Retrim frame using a new headliner cover. Inset shows section through frame indicating where adhesive is applied. Dimension "A" should be radially constant.

REFIT
1. Refit sunroof headliner assembly and reassemble sunroof.
