Home >> Land Rover >> 1994 >> Range Rover County (LH) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Diagram

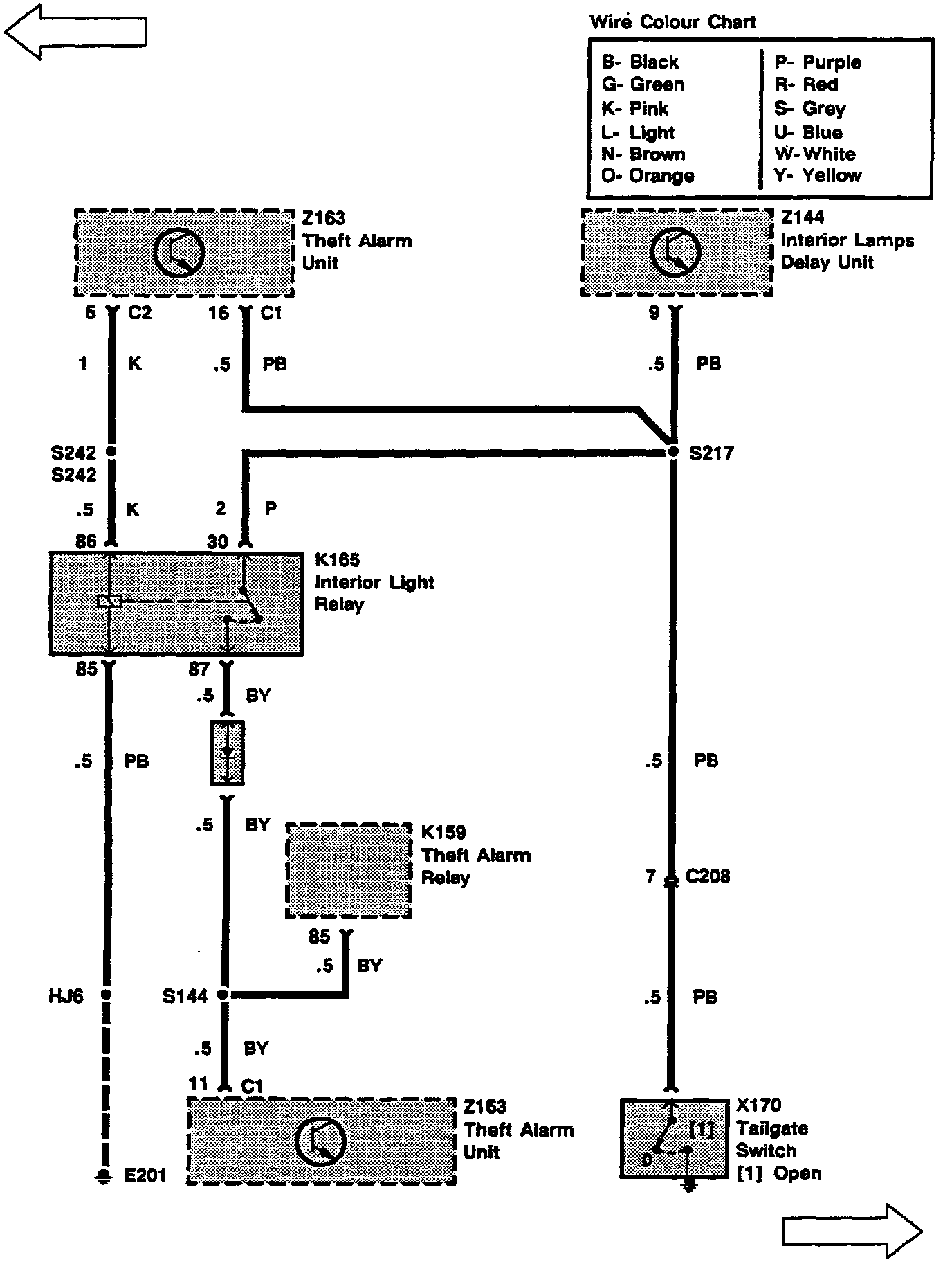

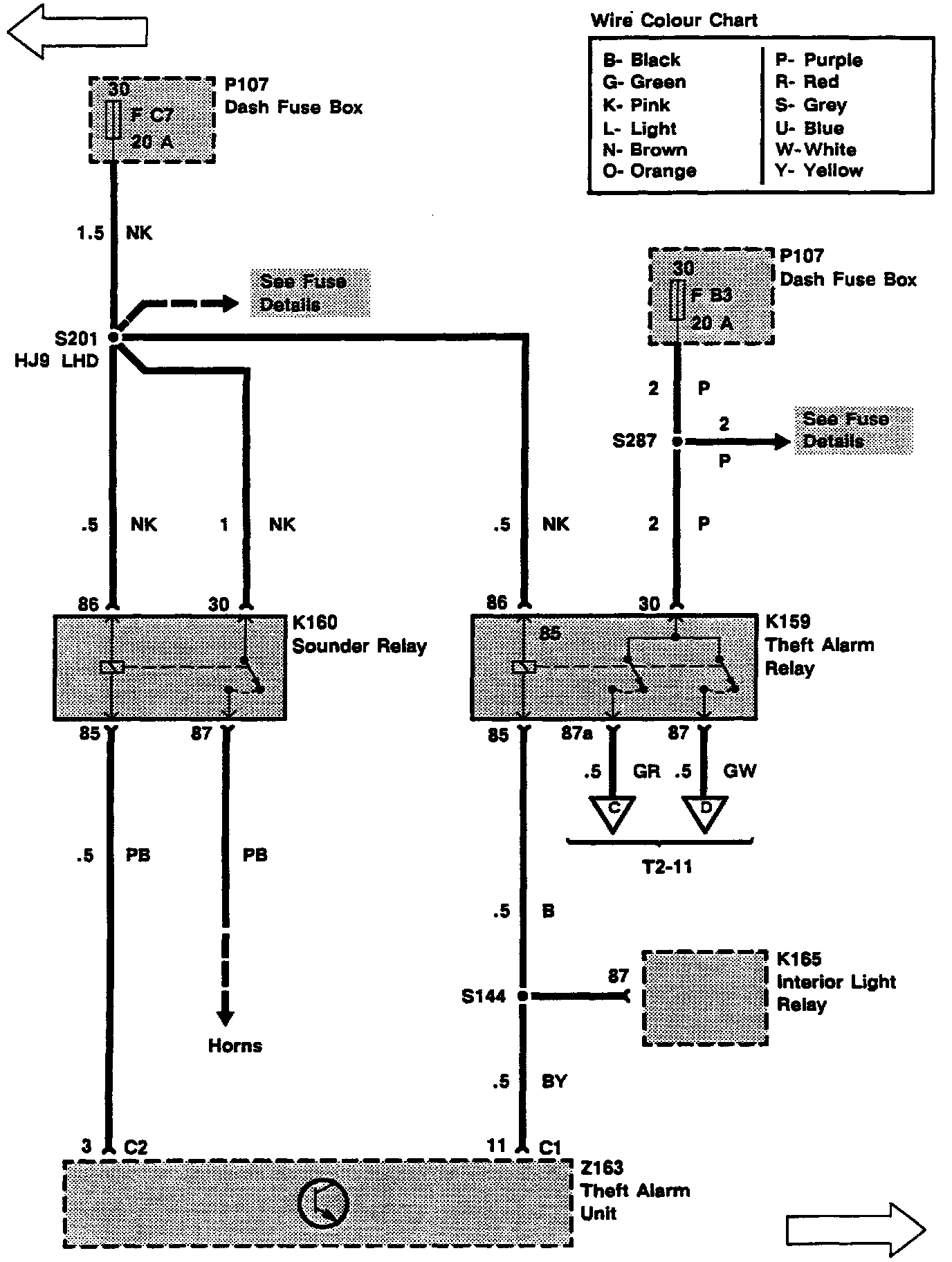

System Diagram

T2-4:





T2-5:





T2-6:





T2-7:





T2-8:





T2-9:





T2-10:





T2-11:
