Land Rover
>>
1994
>>
Range Rover County (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Light Switch
Brake Light Switch

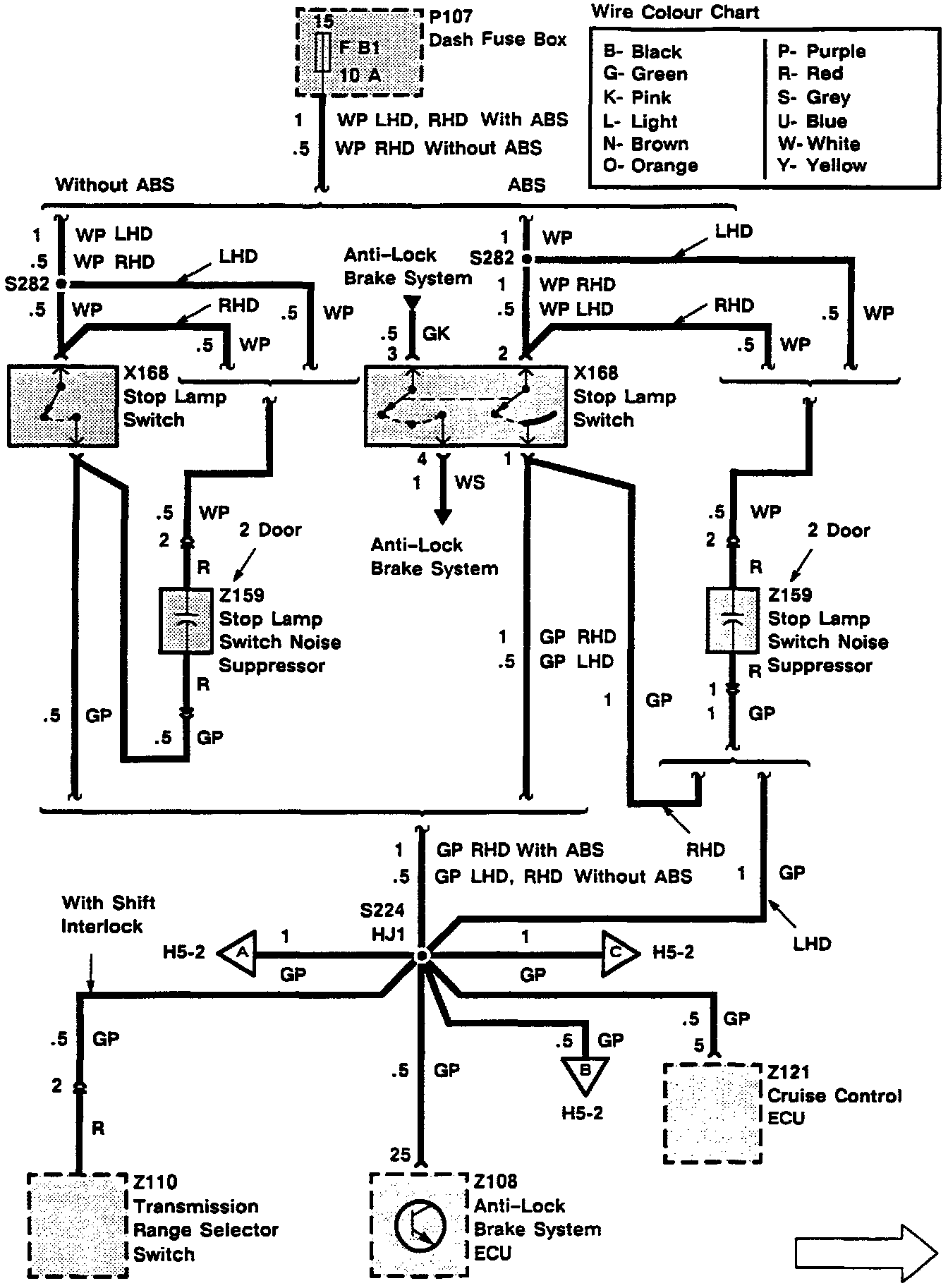

H5-1:

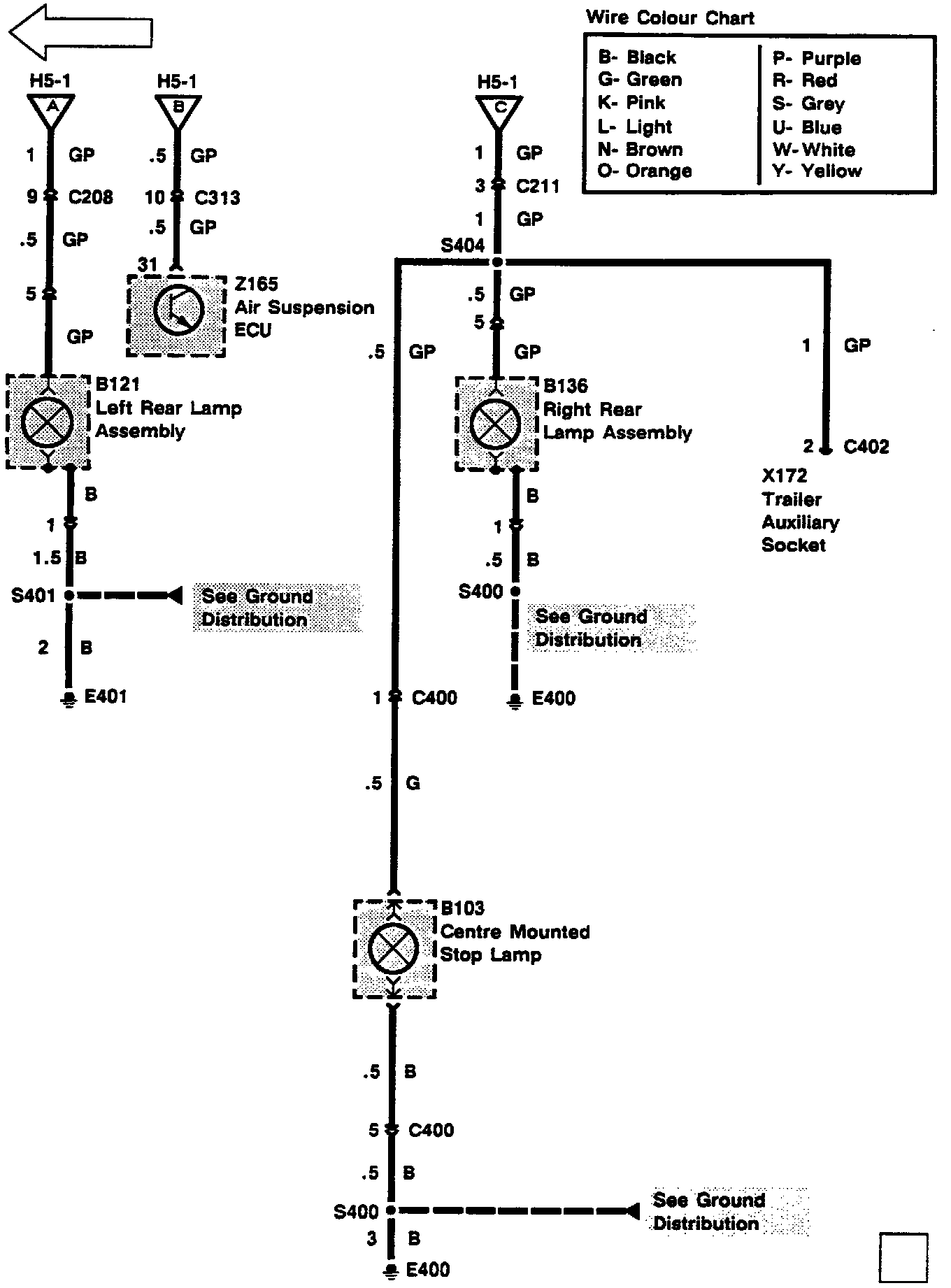

H5-2:
