Home >> Land Rover >> 1994 >> Range Rover County (LH) V8-3.9L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Management

Engine Management

Engine Management

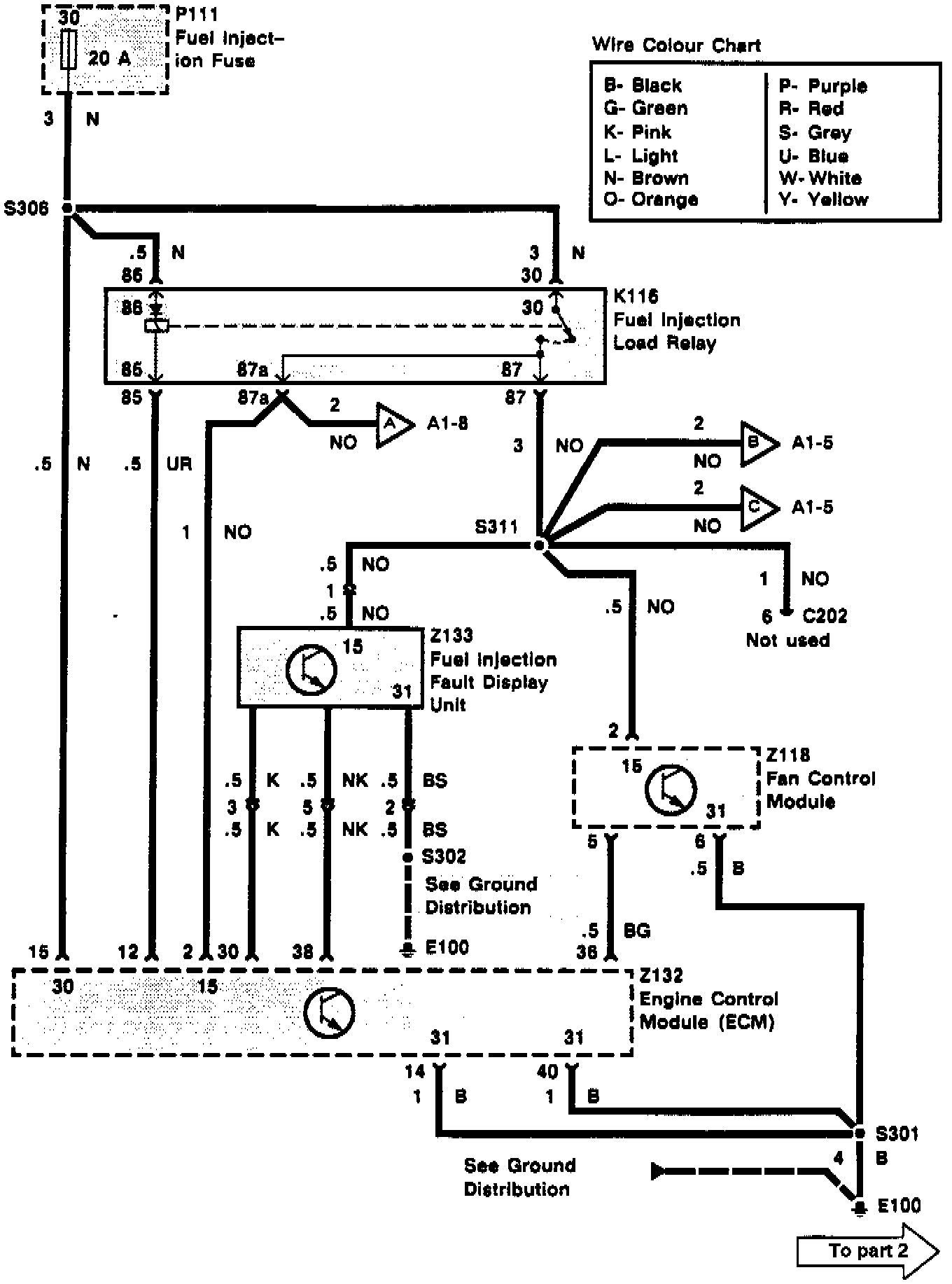

EFI - Part 1 of 8:





Part 1 of 8

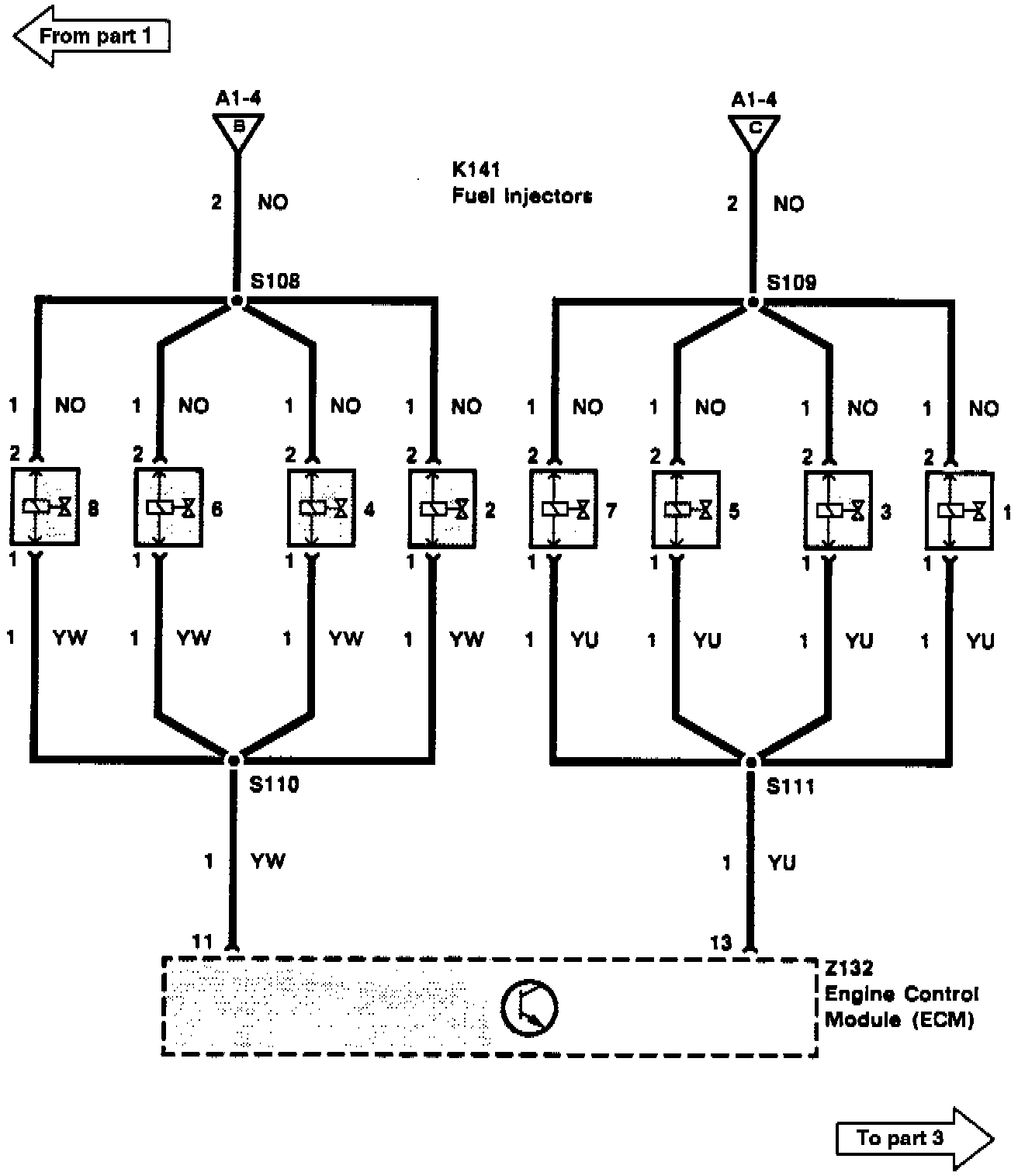

EFI - Part 2 of 8:





Part 2 of 8

EFI - Part 3 of 8:





Part 3 of 8

EFI - Part 4 of 8:





Part 4 of 8

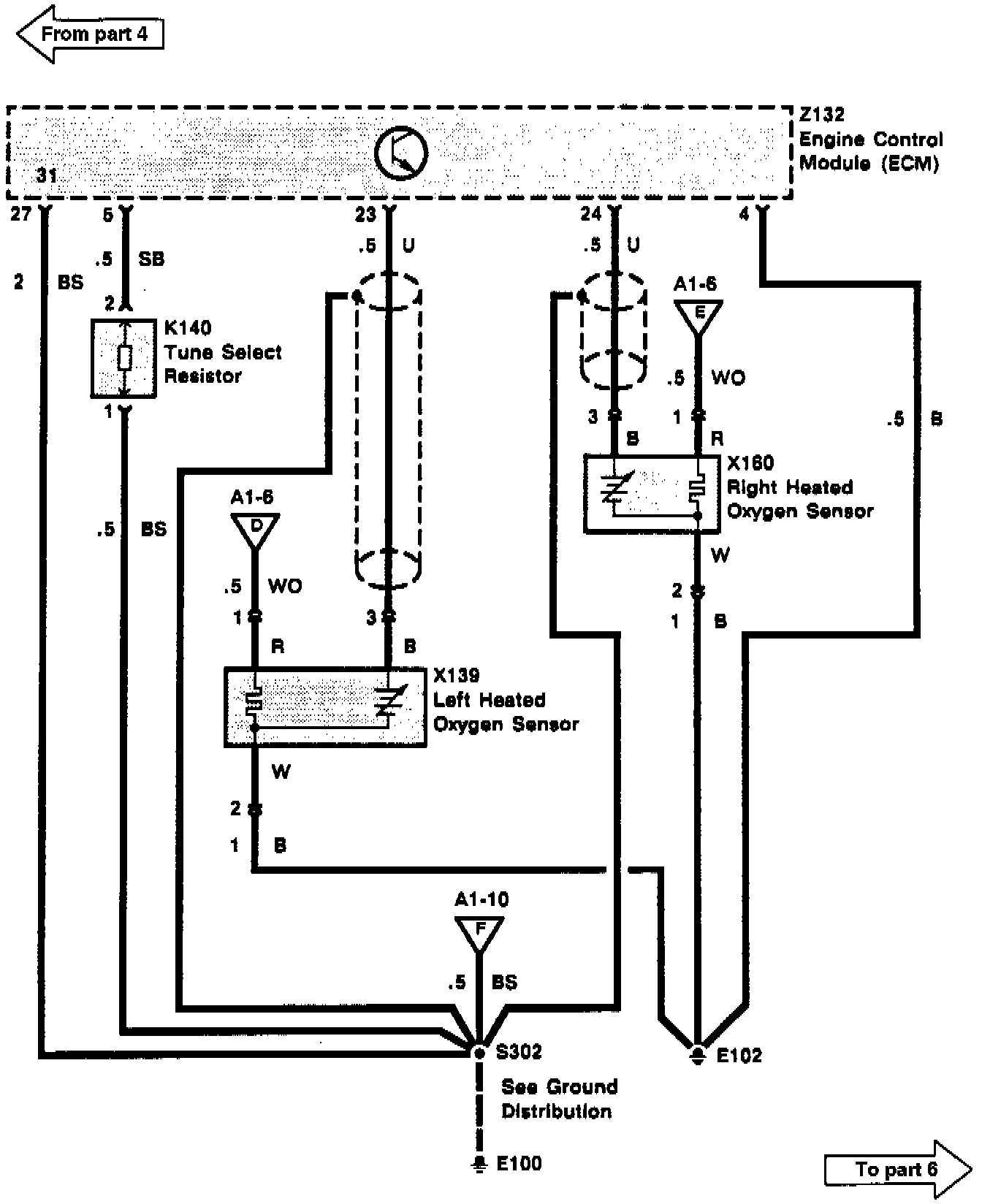

EFI - Part 5 of 8:





Part 5 of 8

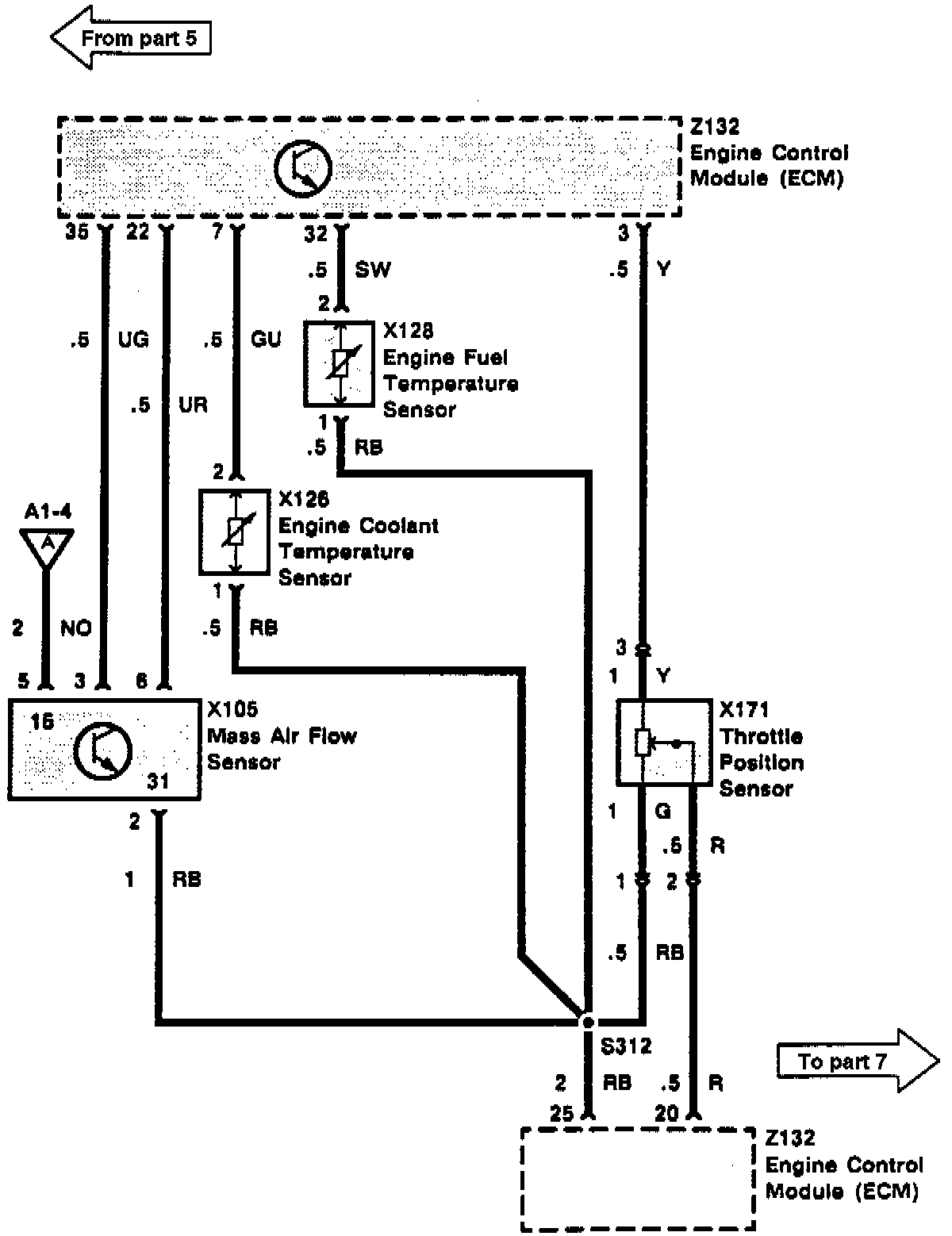

EFI - Part 6 of 8:





Part 6 of 8

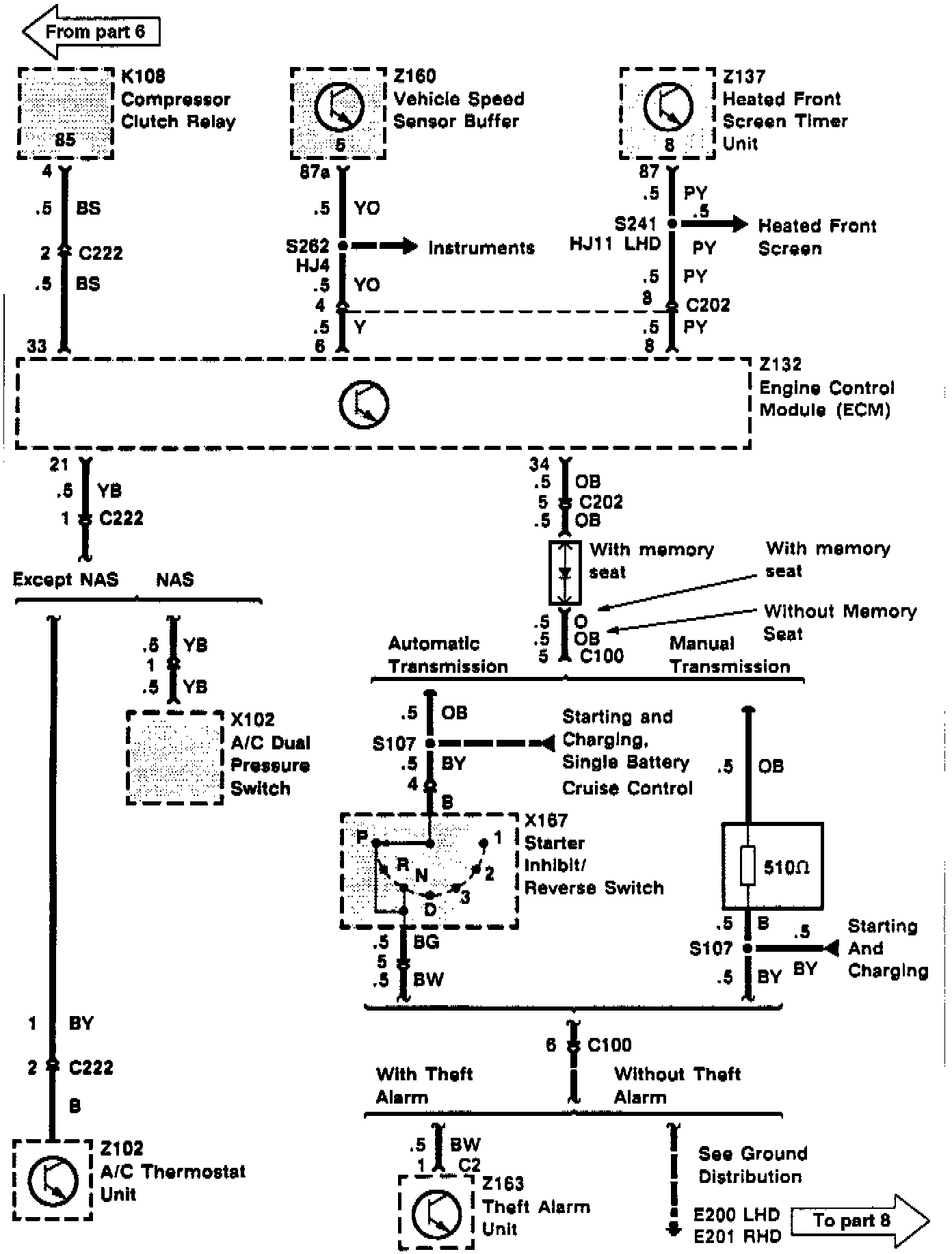

EFI - Part 7 of 8:





Part 7 of 8

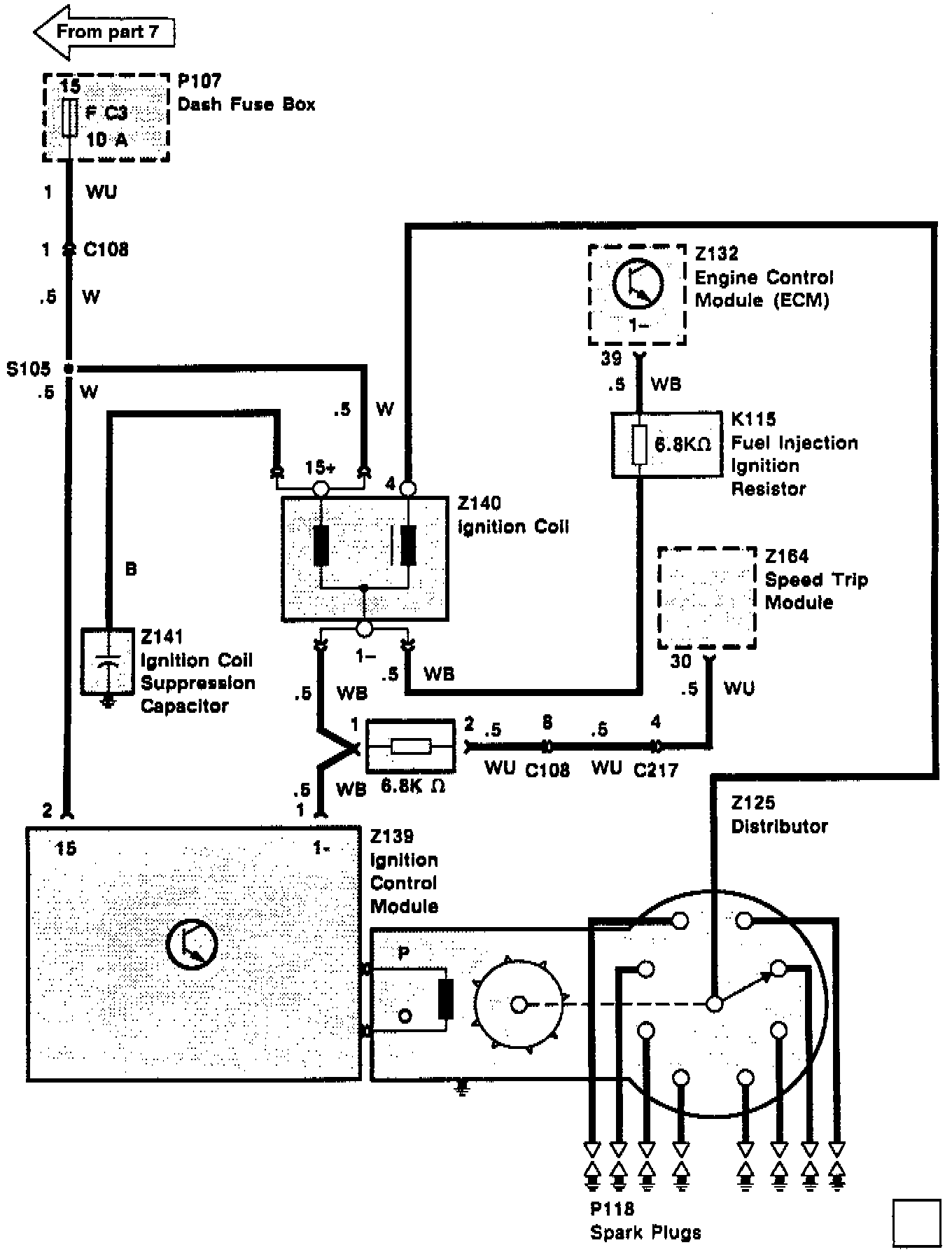

EFI - Part 8 of 8:





Part 8 of 8
