Relays, Timers, Control Units

Relay/Diode/Timer/Delay Unit ID:

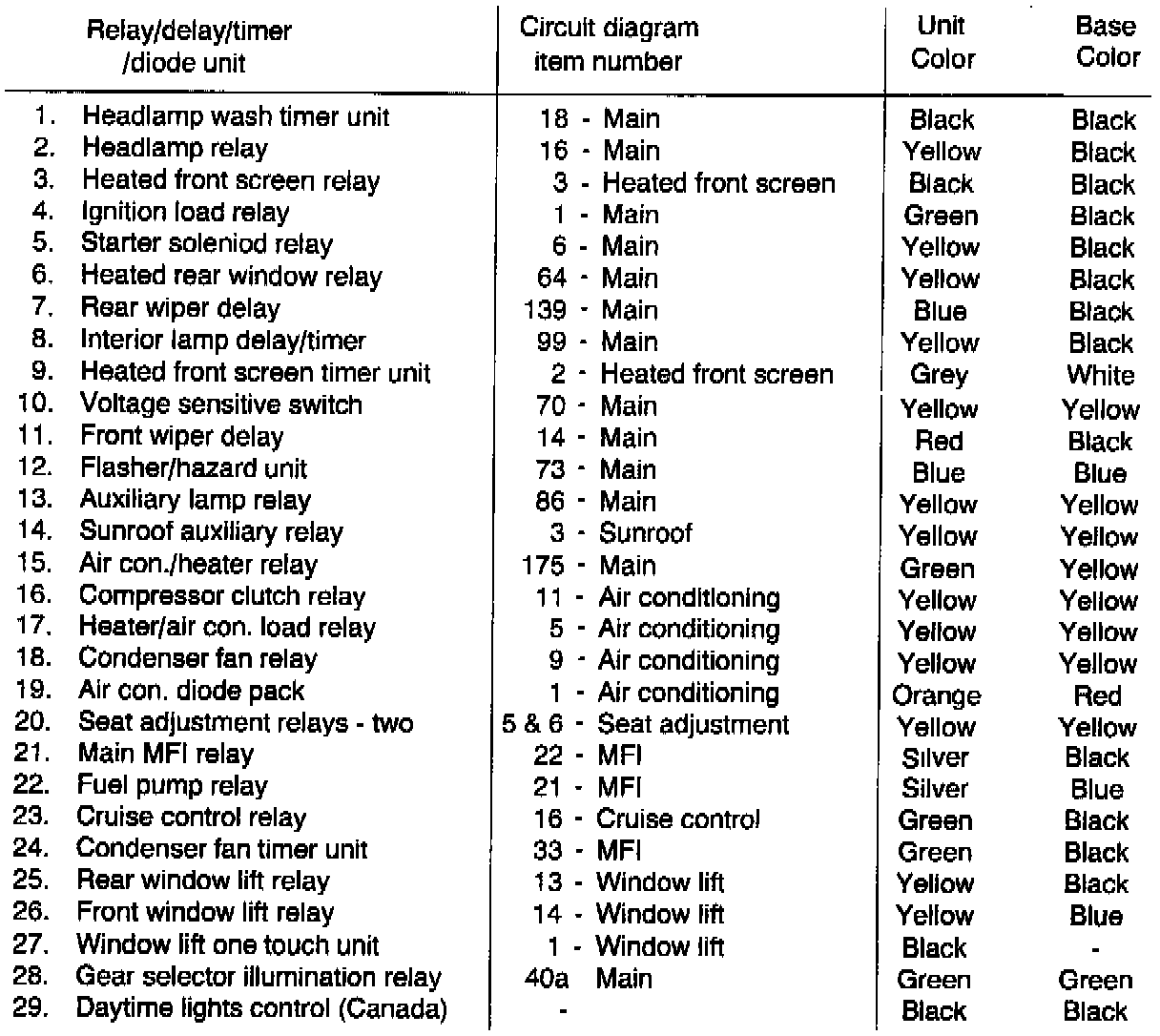

Key to Relays
Use this key to ID the relays in the following images.

Seat Relays:

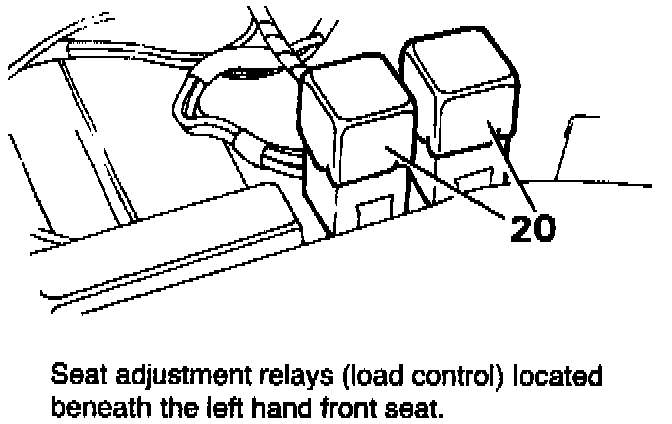

Seat Relays

Relays - MFI, Fuel Pump, Cruise Control, & Condenser Fan Timer:

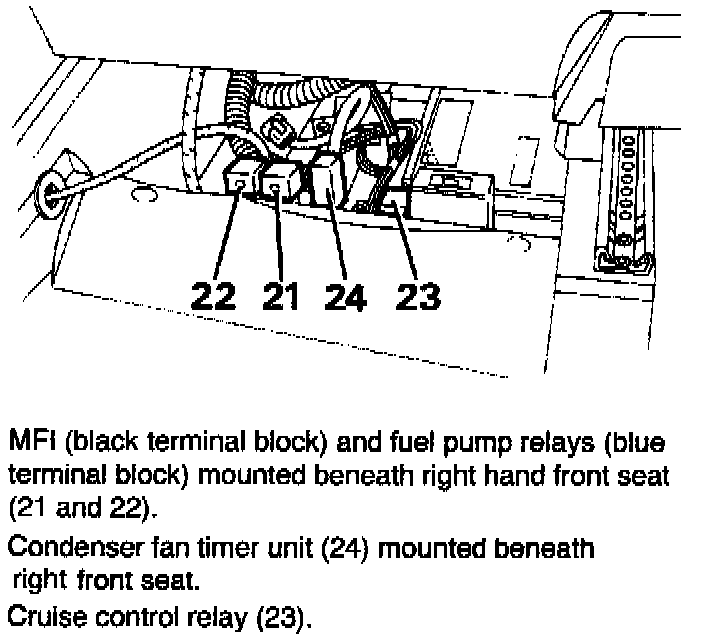

MFI Relay, Fuel Pump Relay, Cruise Control Relay, Condenser Fan Timer Unit

Relays Under Glove Box:

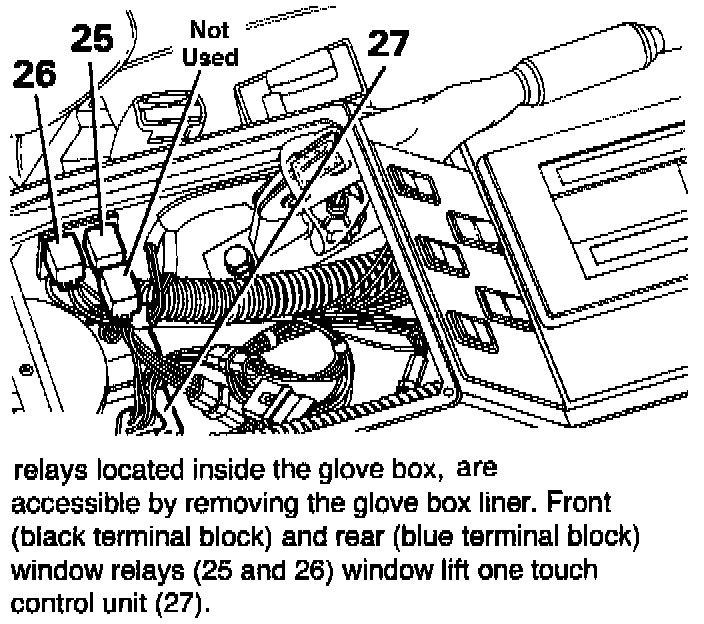

Relays Under Glove Box

Headlamp Washer Timer Unit:

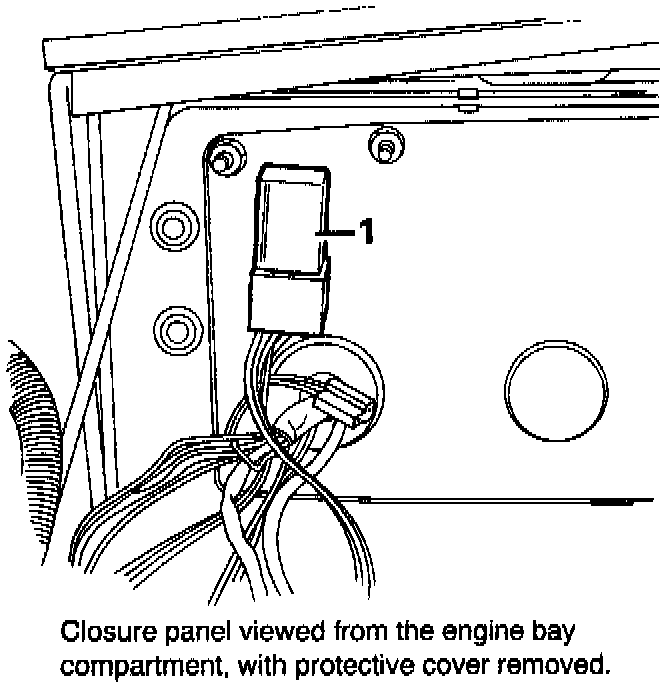

Headlamp Washer Timer Unit

Left Footwell Relays:

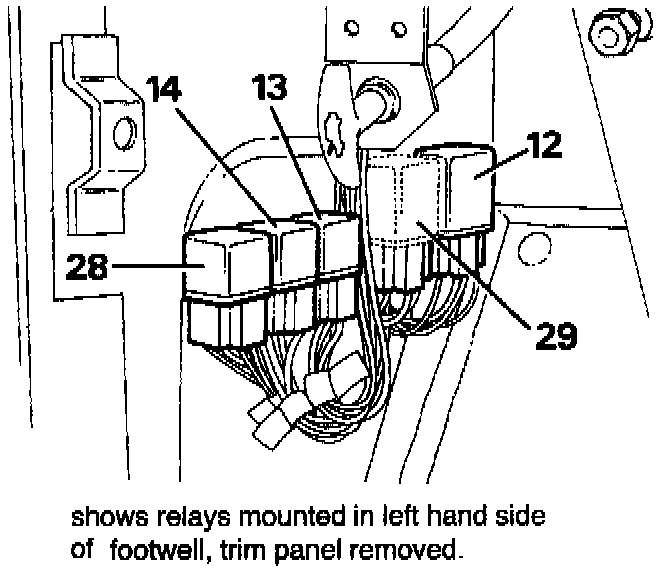

Left Footwell Relays

Relays Under Steering Column:

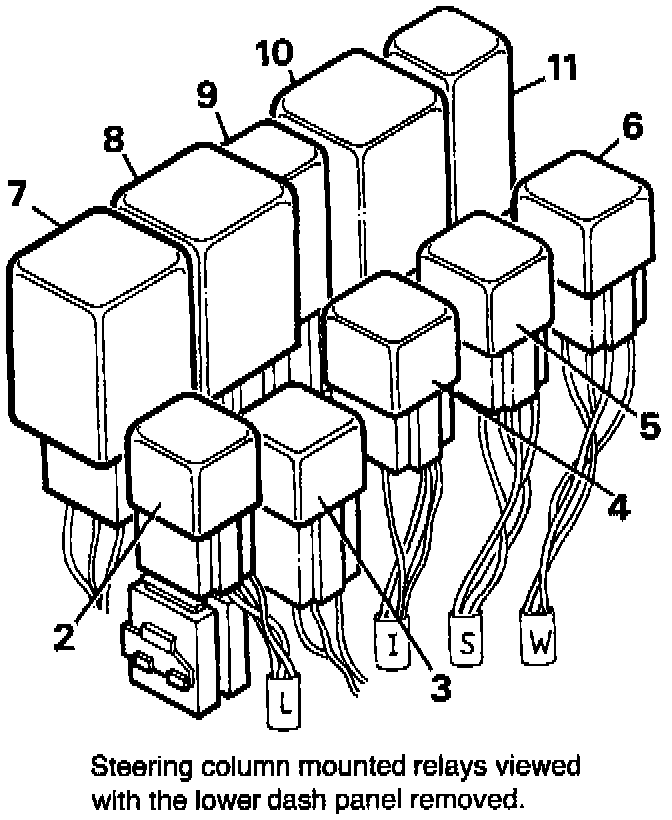

Relays Under Steering Column

Right Footwell Relays:

Right Footwell Relays
