Land Rover
>>
1994
>>
Range Rover County LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splice Distribution
>>

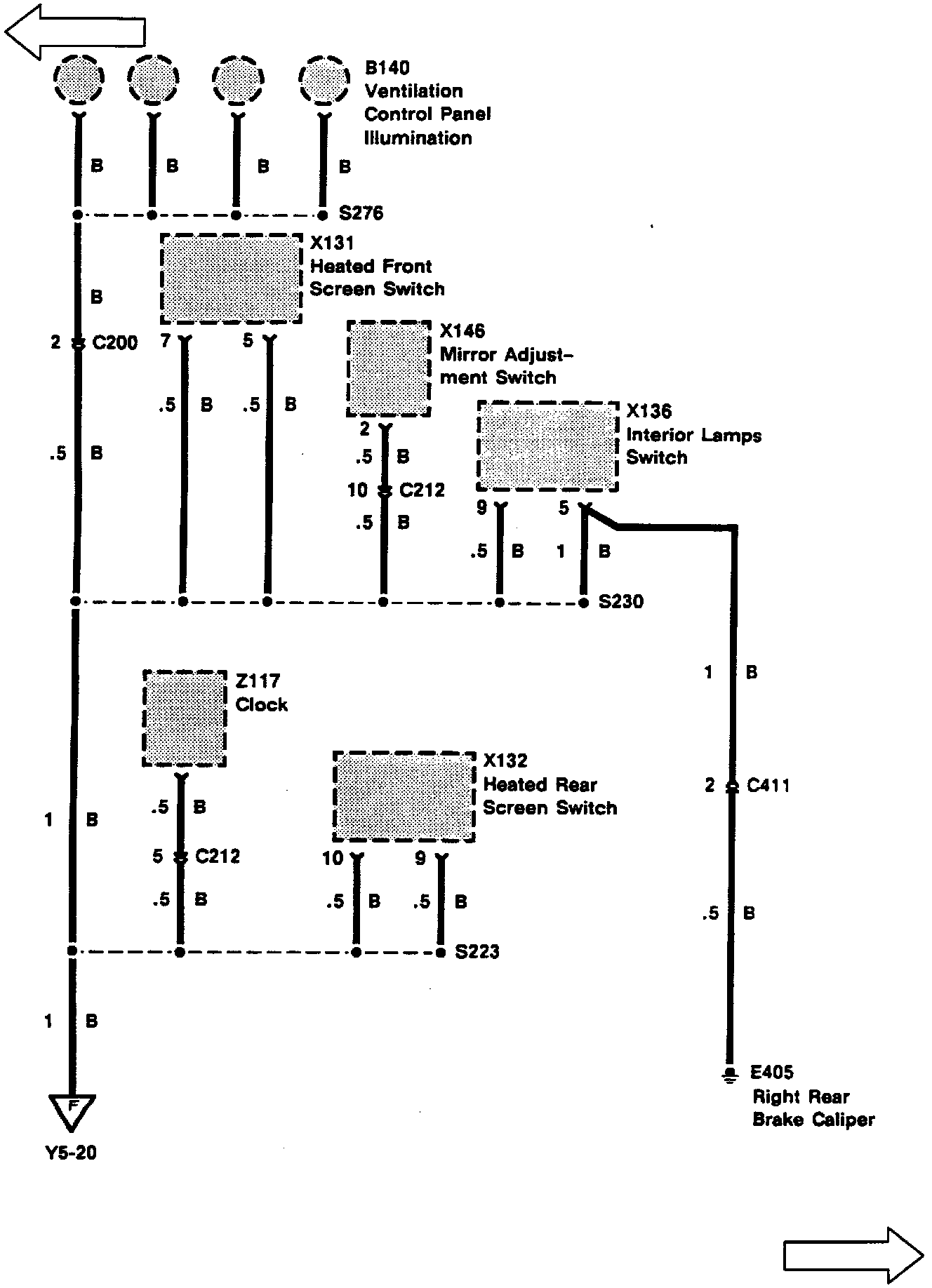

S223
S223
Y5-19:
