Audible Warning Device

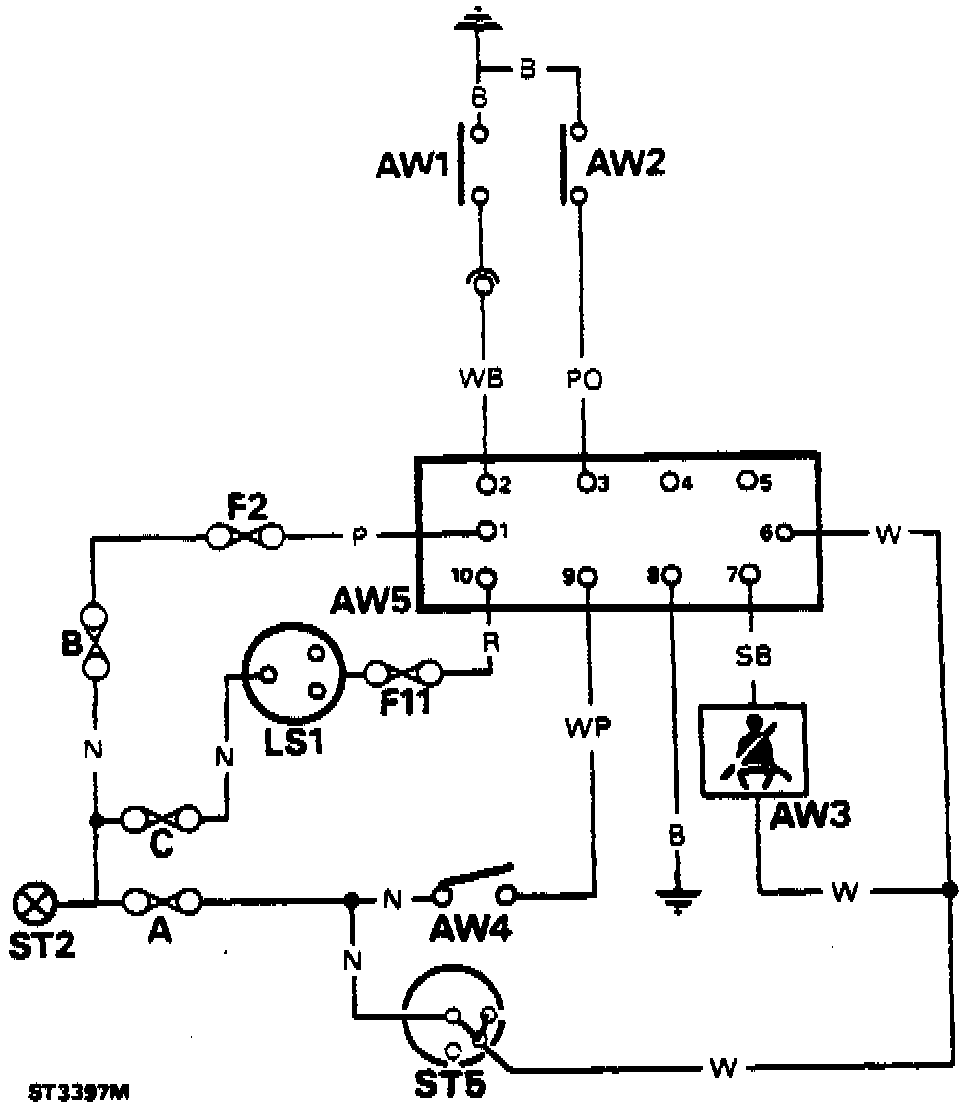

Audible Warning Circuit:

AW1 Seat belt switch
AW2 Door switch
AW3 Seat belt warning lamp
AW4 Key-in switch
LS1 Main lighting switch
ST2 Terminal Post starter solenoid
ST5 Starter/ignition switch
A 60 amp fuse, main fuse box
B 60 amp fuse, main fuse box
C 30 amp fuse, main fuse box
F2 15 amp fuse, dash fuse box
F11 5 amp fuse, dash fuse box
