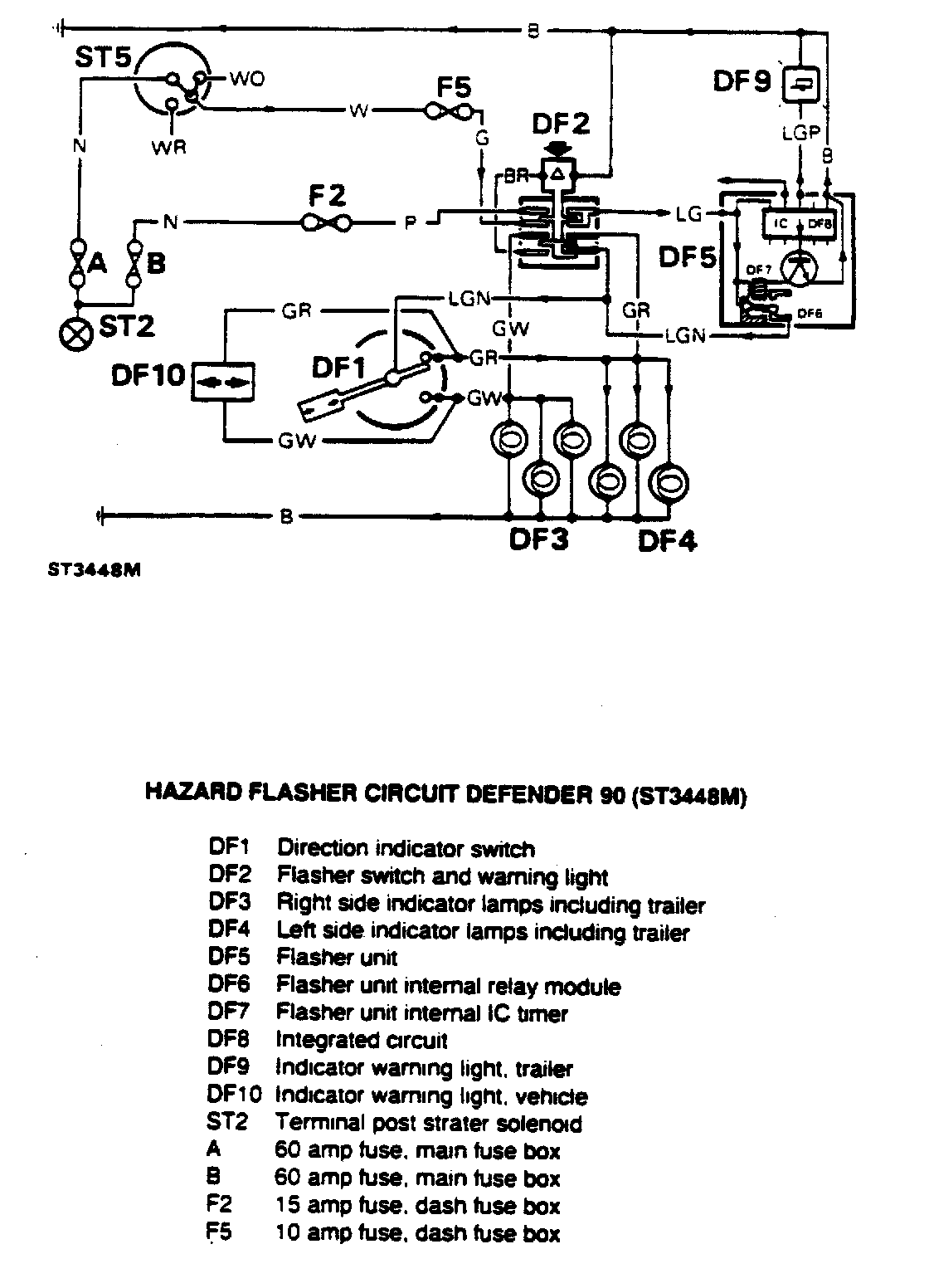

Hazard Warning Lamps

LEGEND
DF1 Direction indicator switch
DF2 Flasher switch and warning light
DF3 Right side indicator lamps including trailer
DF4 Left side indicator lamps including trailer
DF5 Flasher unit
DF6 Flasher unit internal relay module
DF7 Flasher unit internal IC timer
DF8 Integrated circuit
DF9 Indicator warning light, trailer
DF10 Indicator warning light, vehicle
ST2 Terminal post strater solenoid
A 60 amp fuse, main fuse box
B 60 amp fuse, main fuse box
F2 15 amp fuse, dashfusebox
F5 10 amp fuse, dashfusebox
