Home >> Land Rover >> 1995 >> Range Rover Classic (LH) V8-3.9L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> All Variants

All Variants

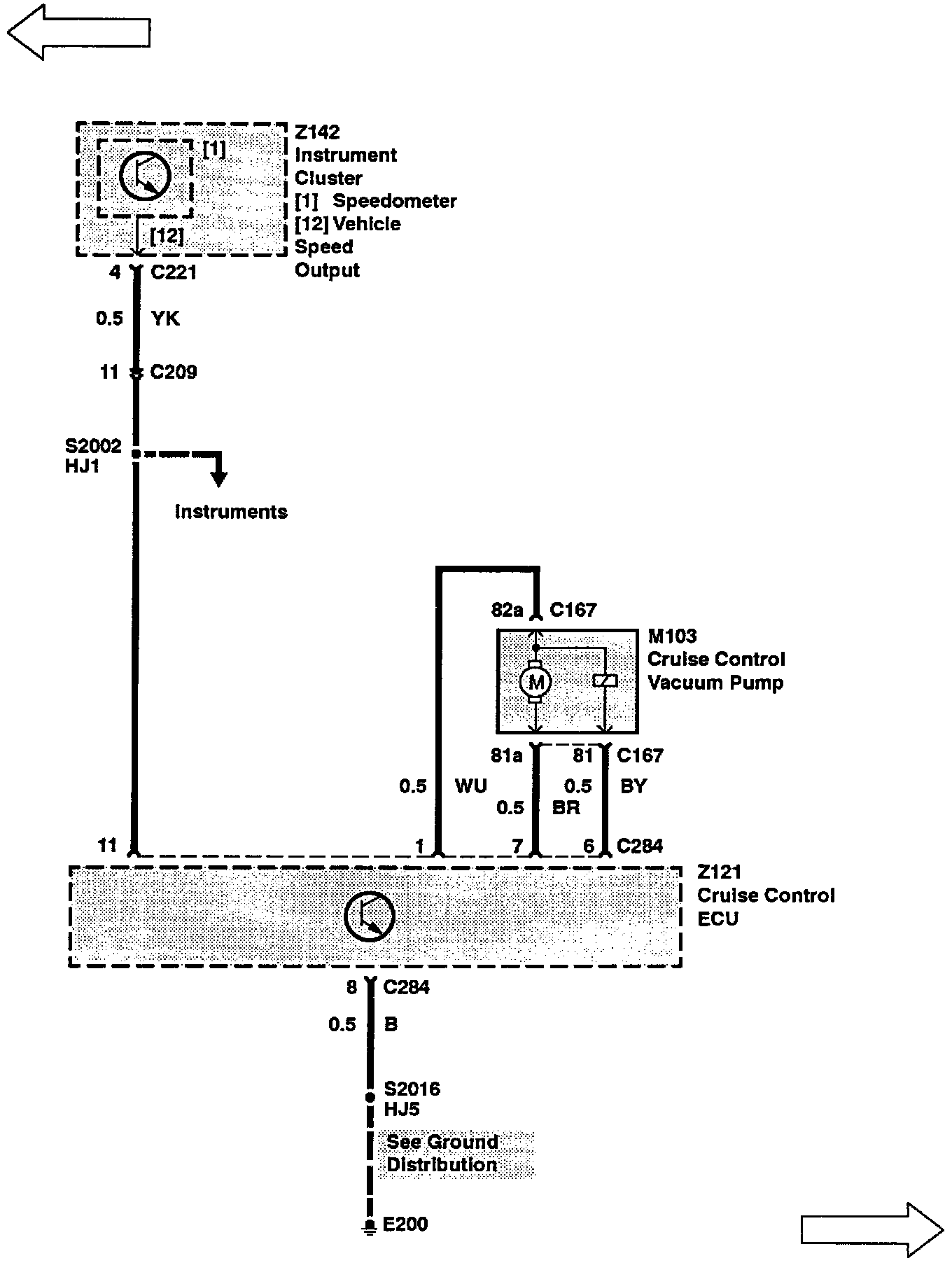

B5-3:

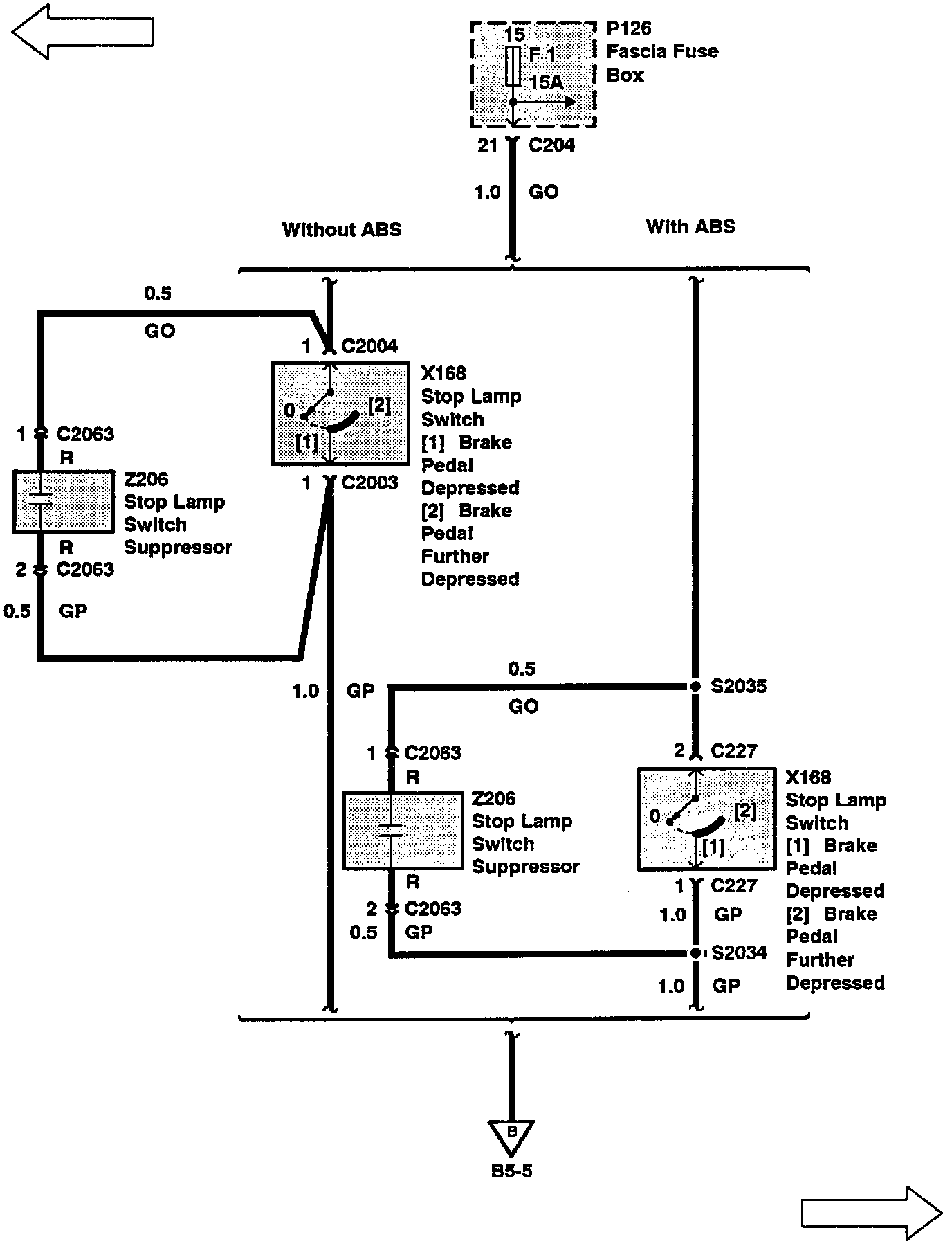

B5-4:

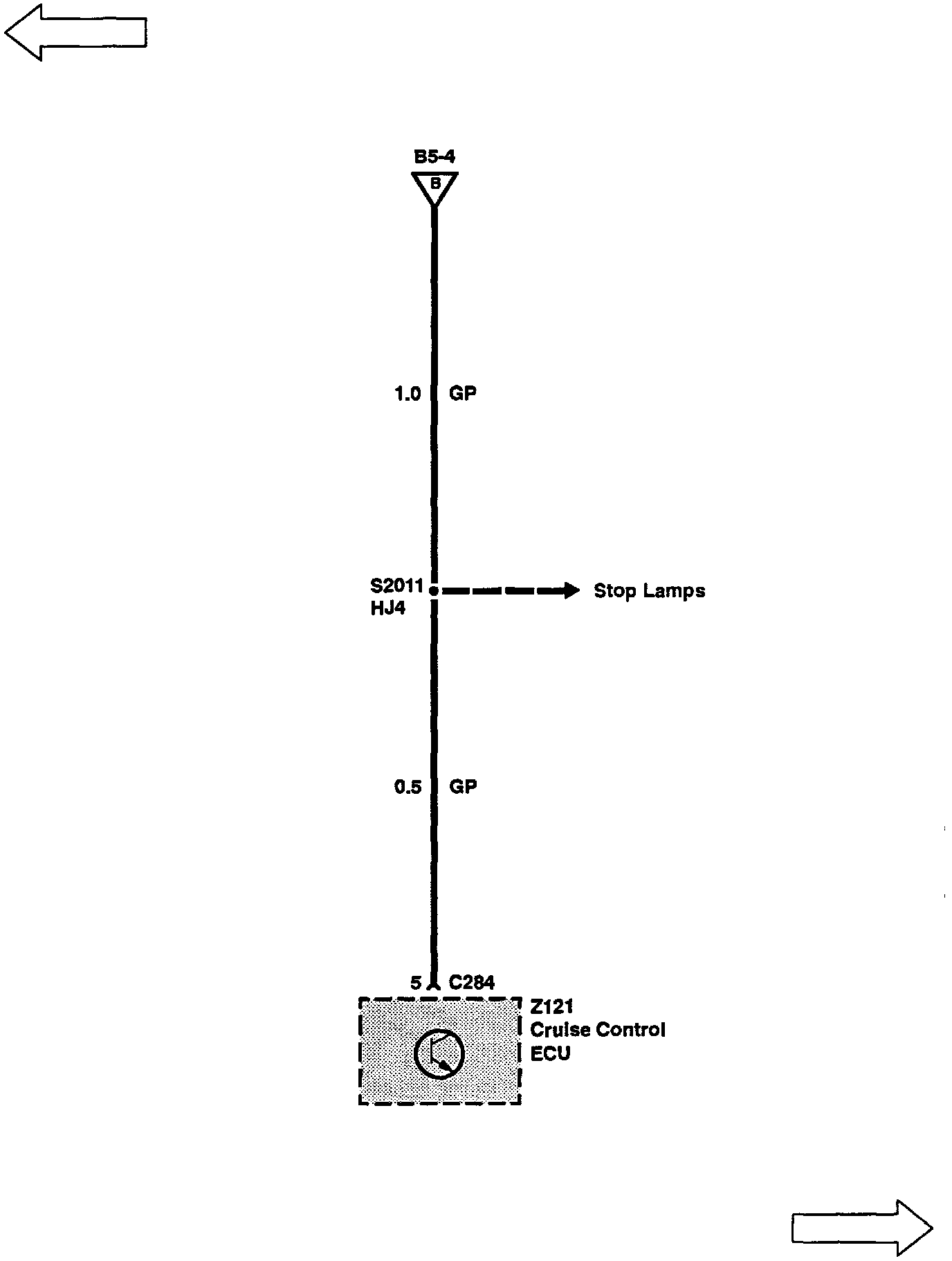

B5-5:

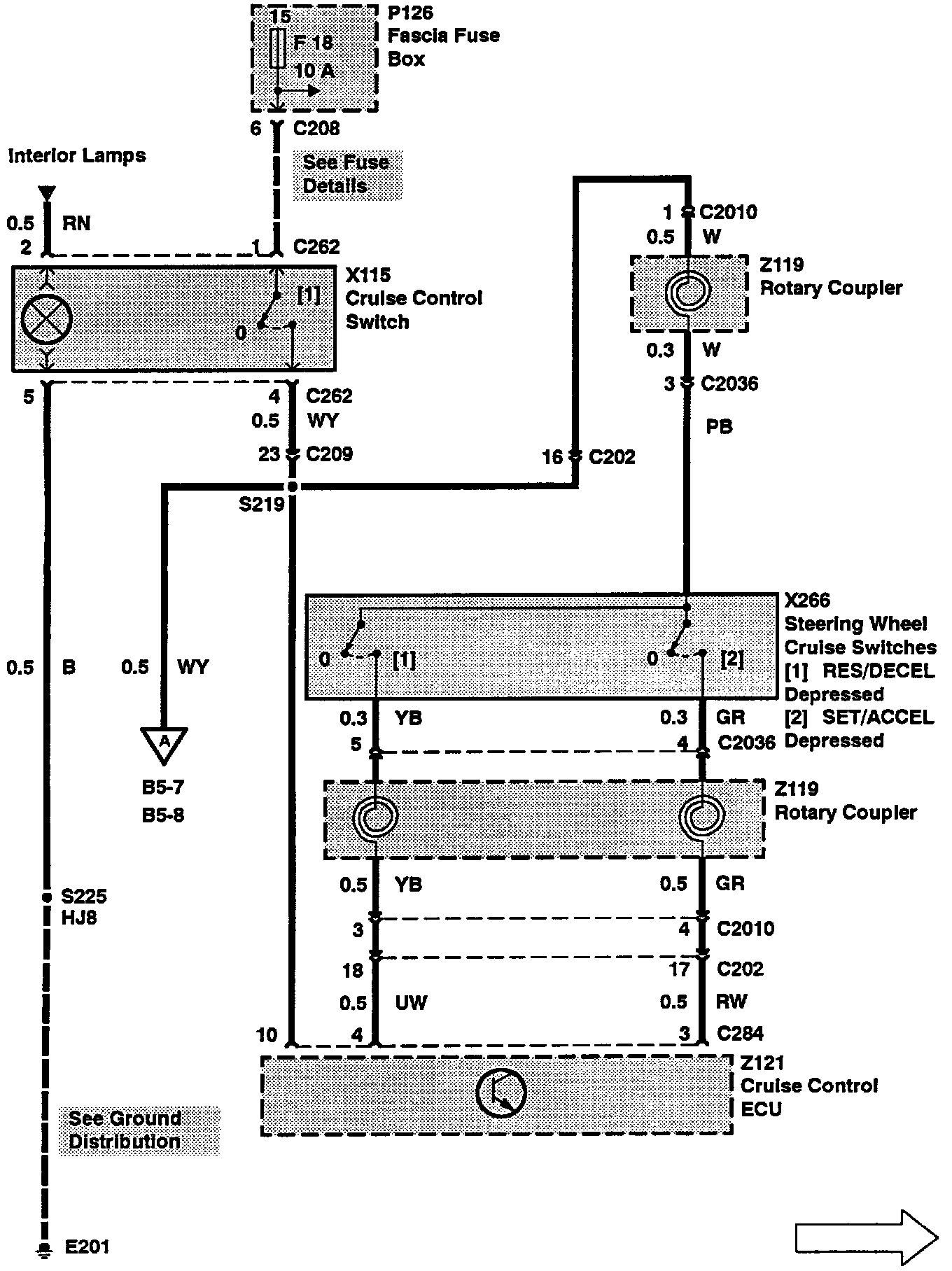

B5-6:
