Range Rover Classic (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C105
C100 - C105

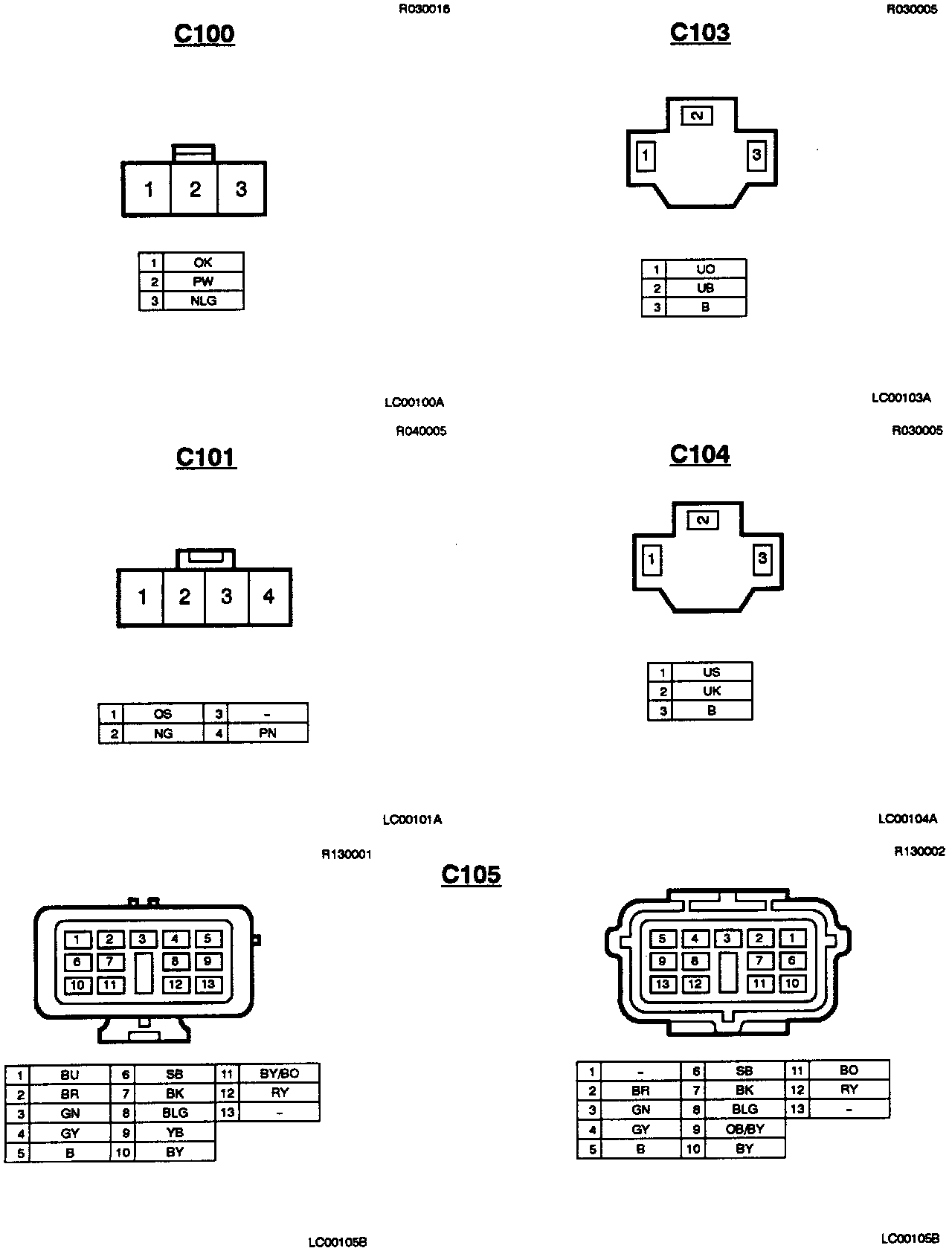

C100, C101, C103, C104 And C105:
