Land Rover
>>
1995
>>
Range Rover Classic (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C501 - C504
C501 - C504

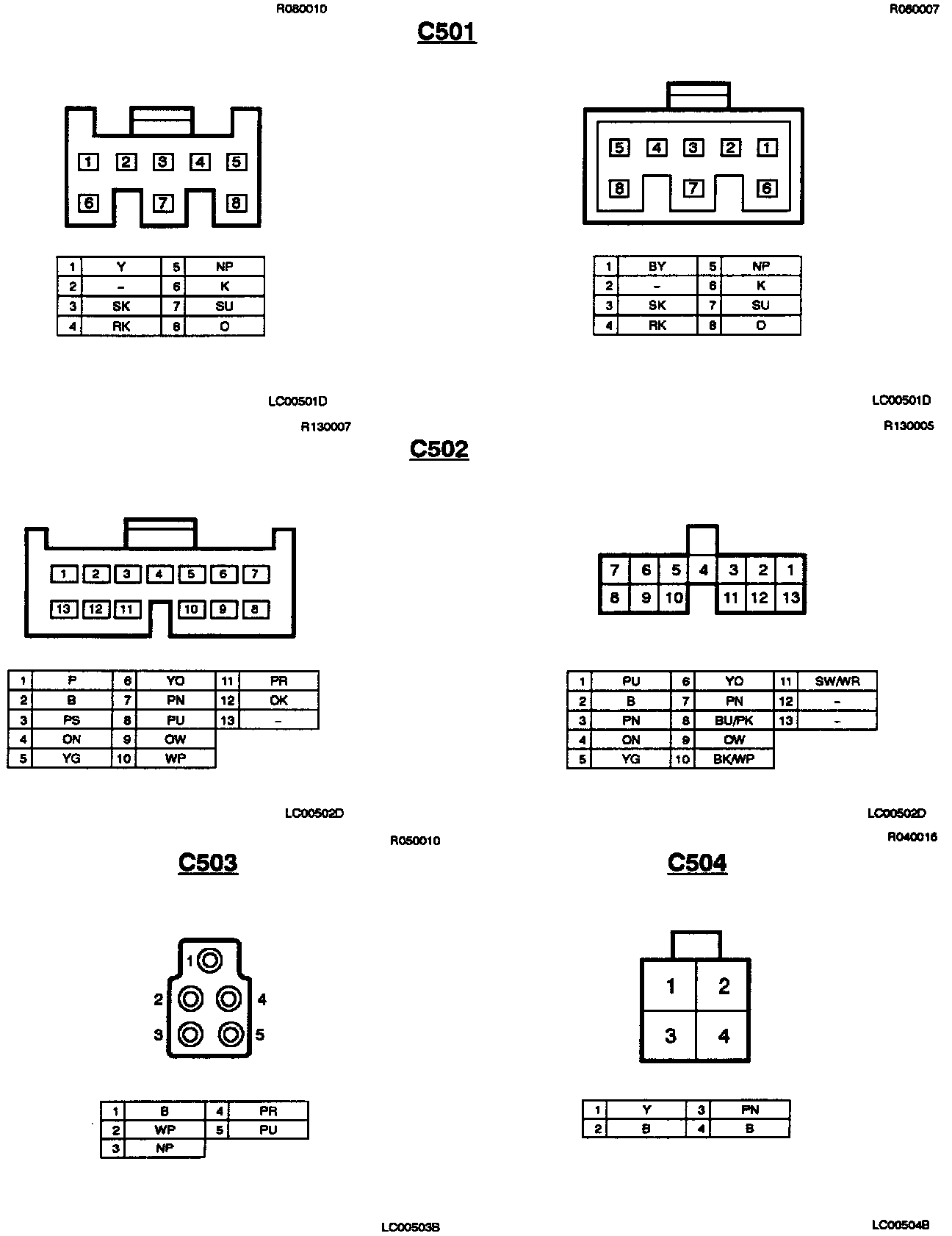

C501, C502, C503 And C504:
