Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1995
>>
Range Rover Classic (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C603 - C609
C603 - C609

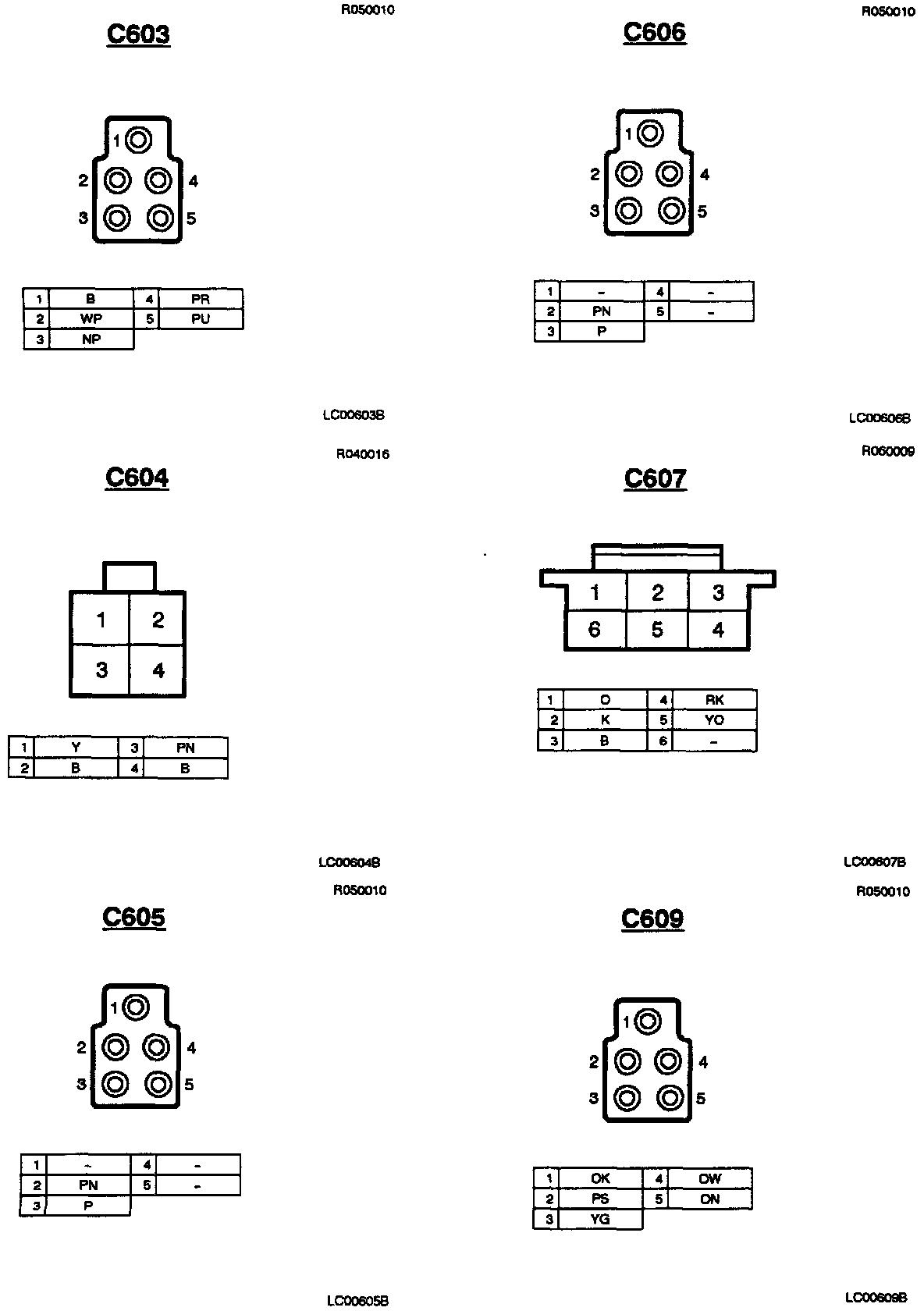

C603, C604, C605, C606, C607 And C609:
