Antitheft and Alarm Systems
>>
System Diagram
System Diagram

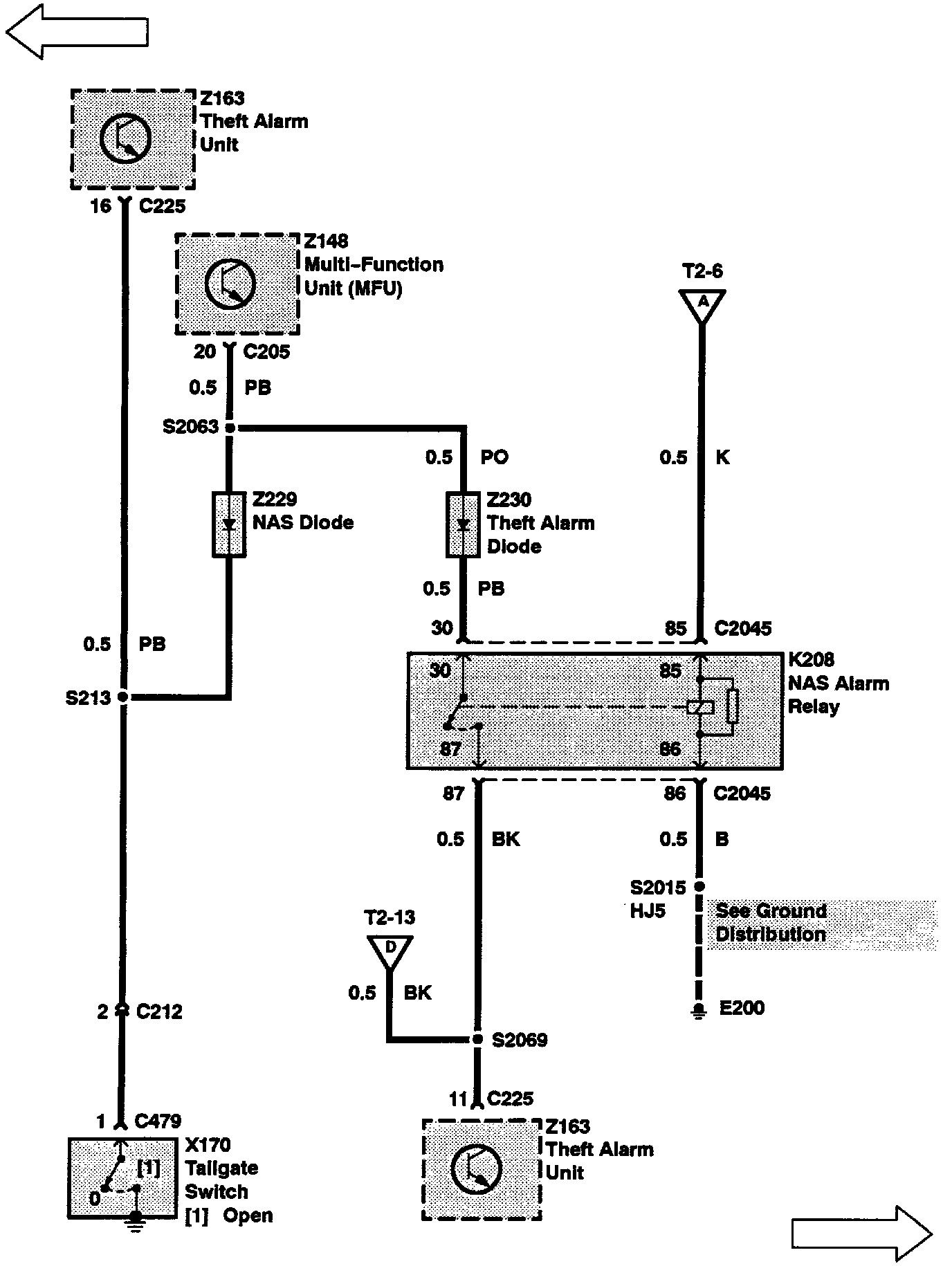

T2-5:

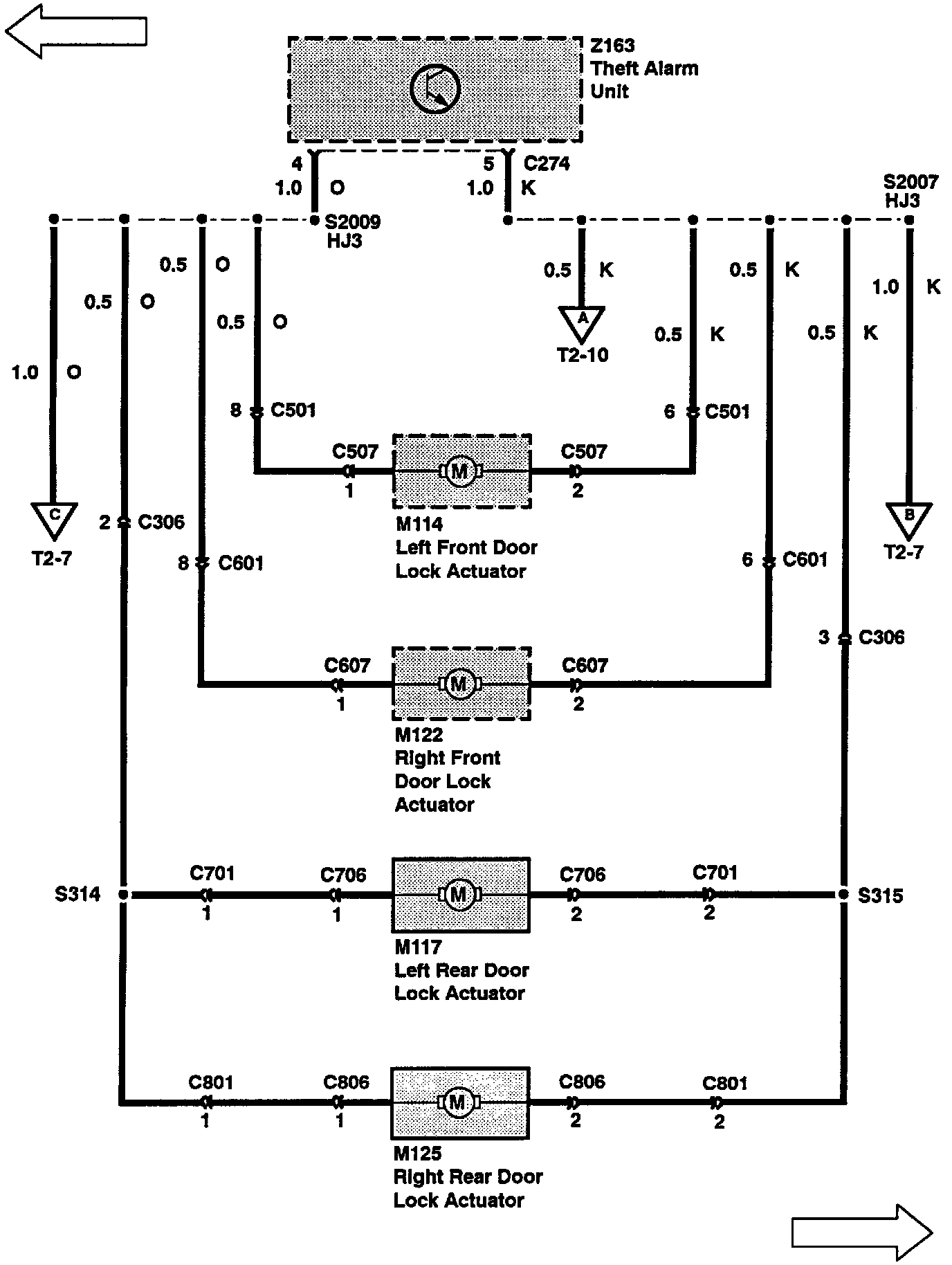

T2-6:

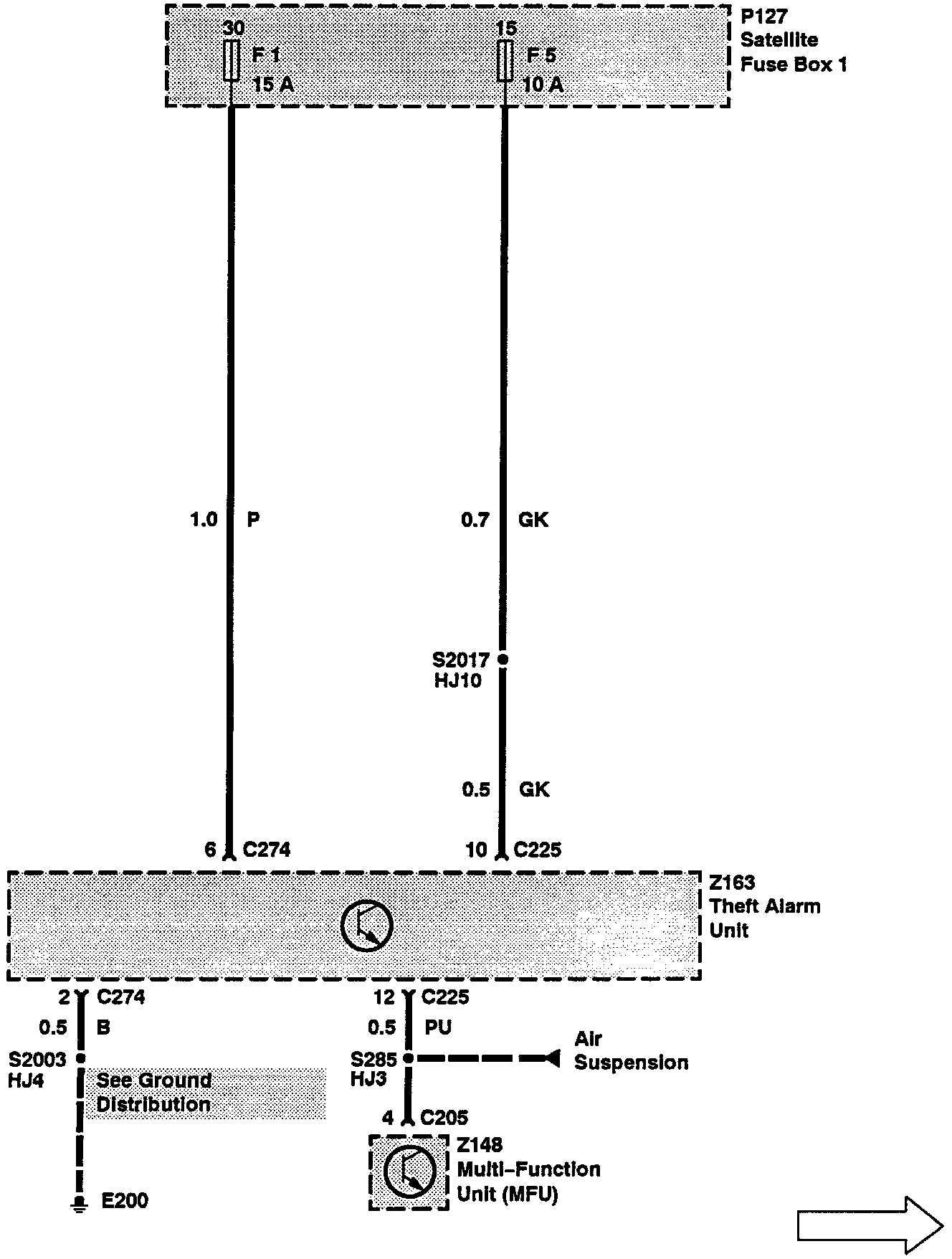

T2-7:
T2-8:
T2-9:
T2-10:
T2-11:
T2-12:
T2-13:
T2-14:
