Suspension Control ( Automatic - Electronic )

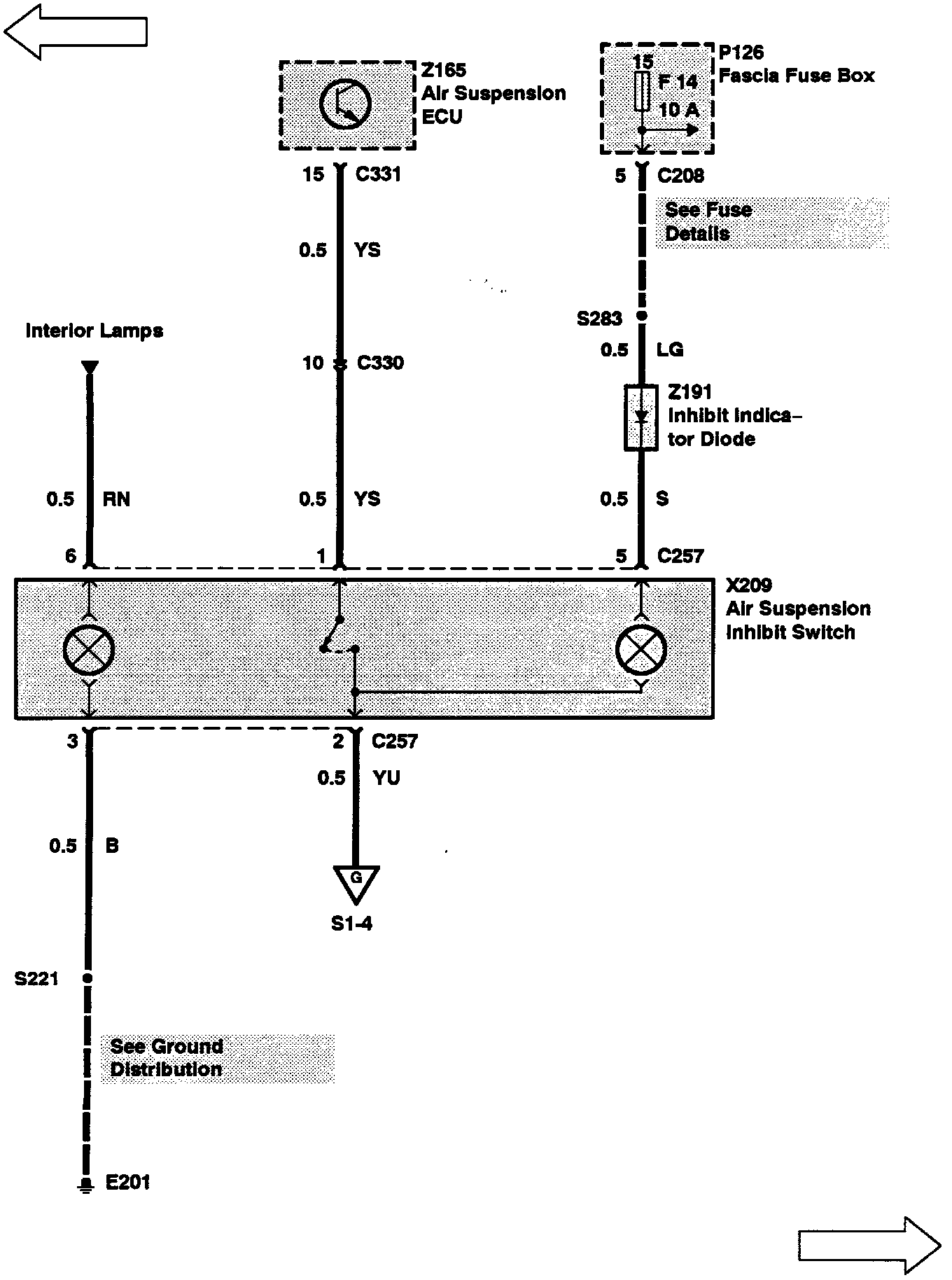

S1-1:

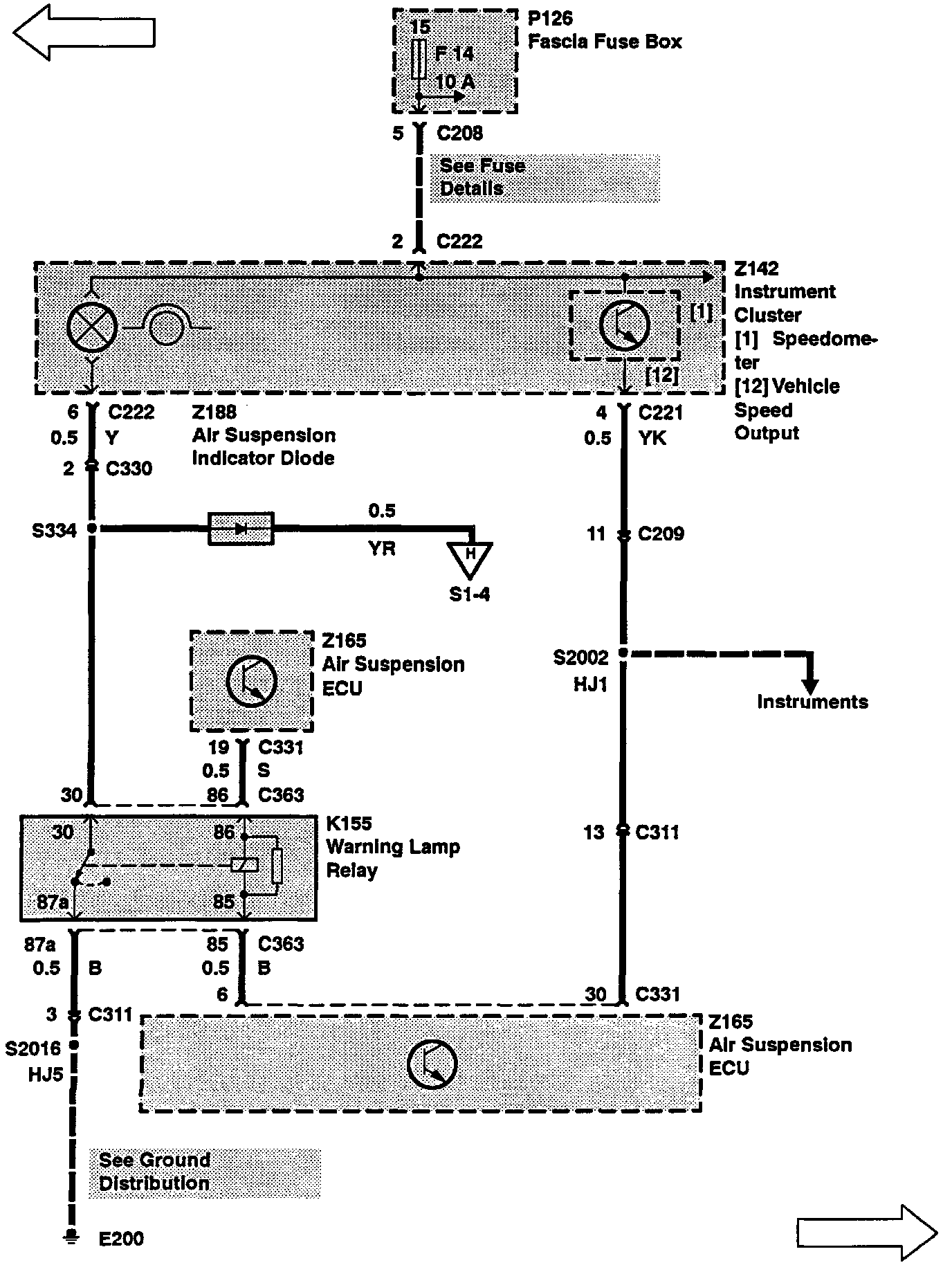

S1-2:

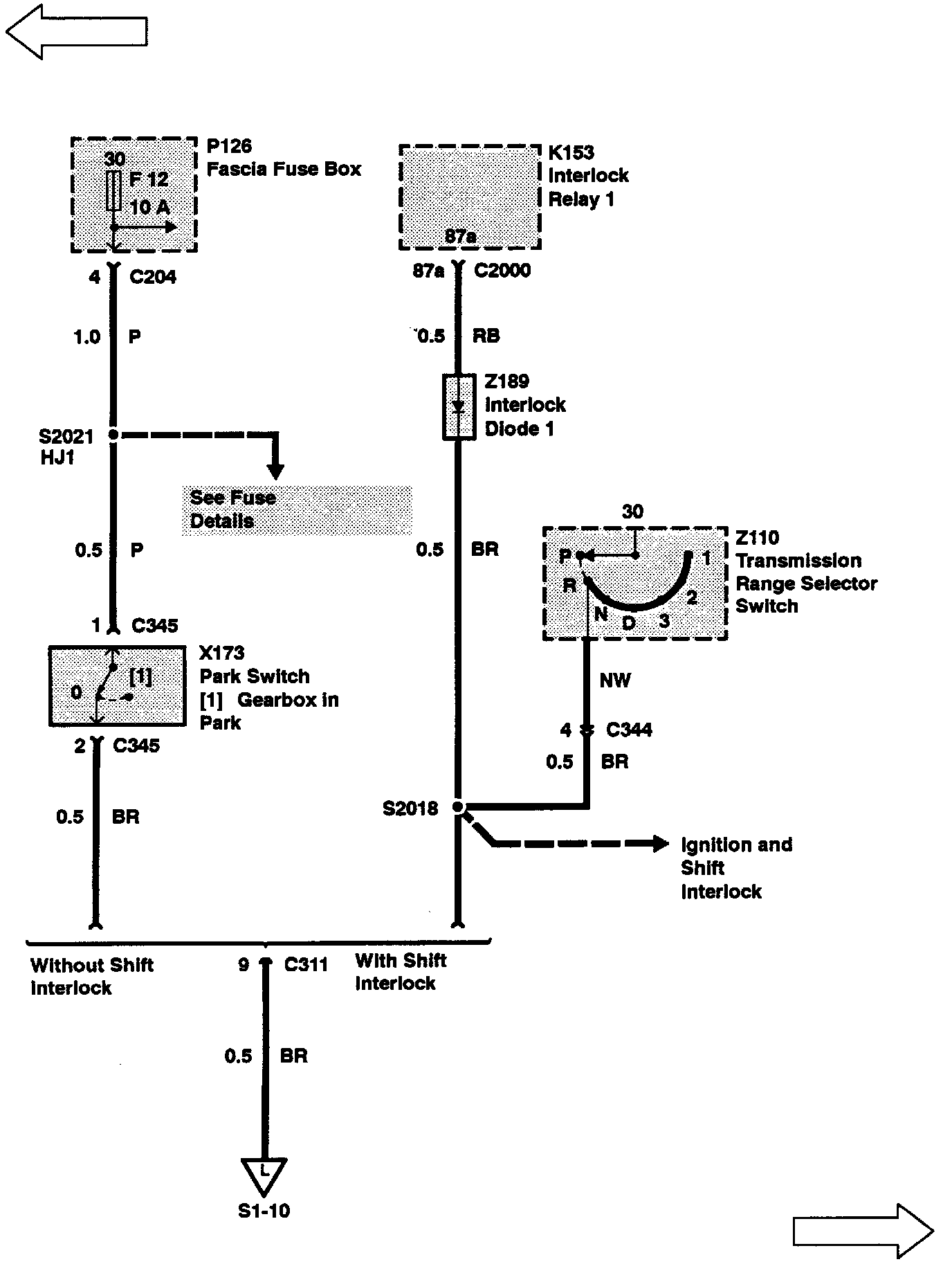

S1-3:

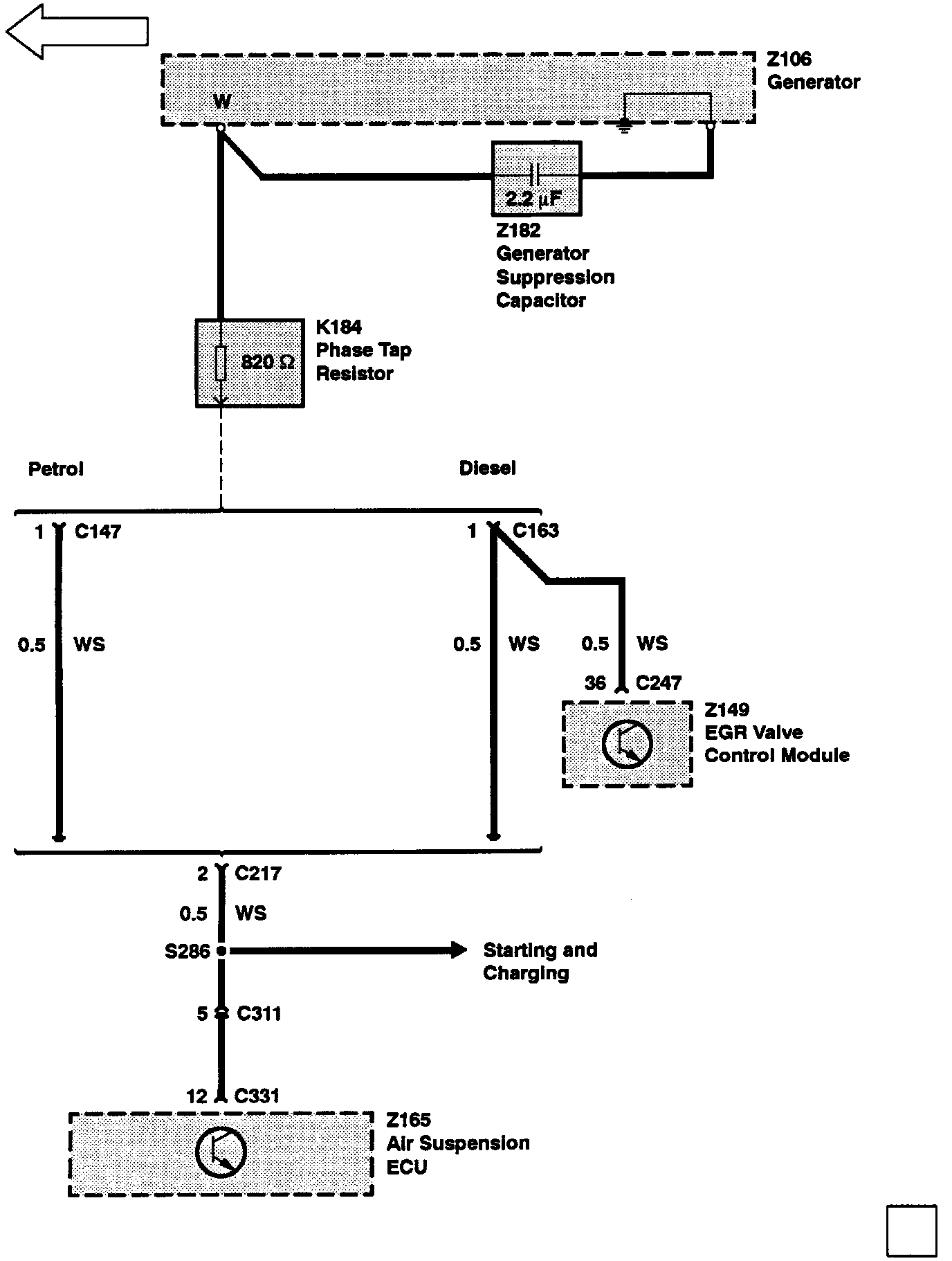

S1-4:




S1-5:




S1-6:




S1-7:




S1-8:




S1-9:




S1-10:




S1-11:




S1-12:




S1-13:




S1-14:
