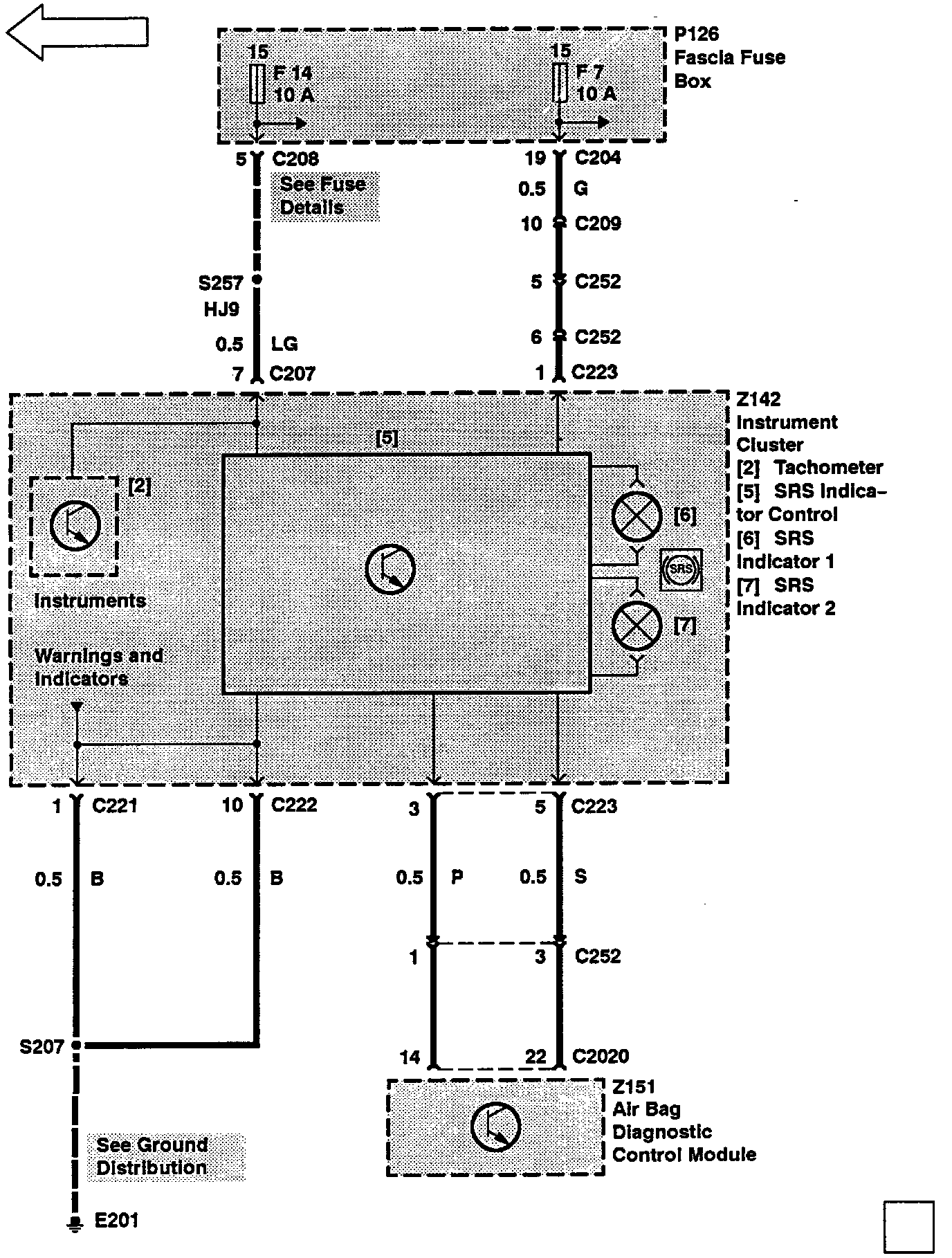

Warnings and Indicators

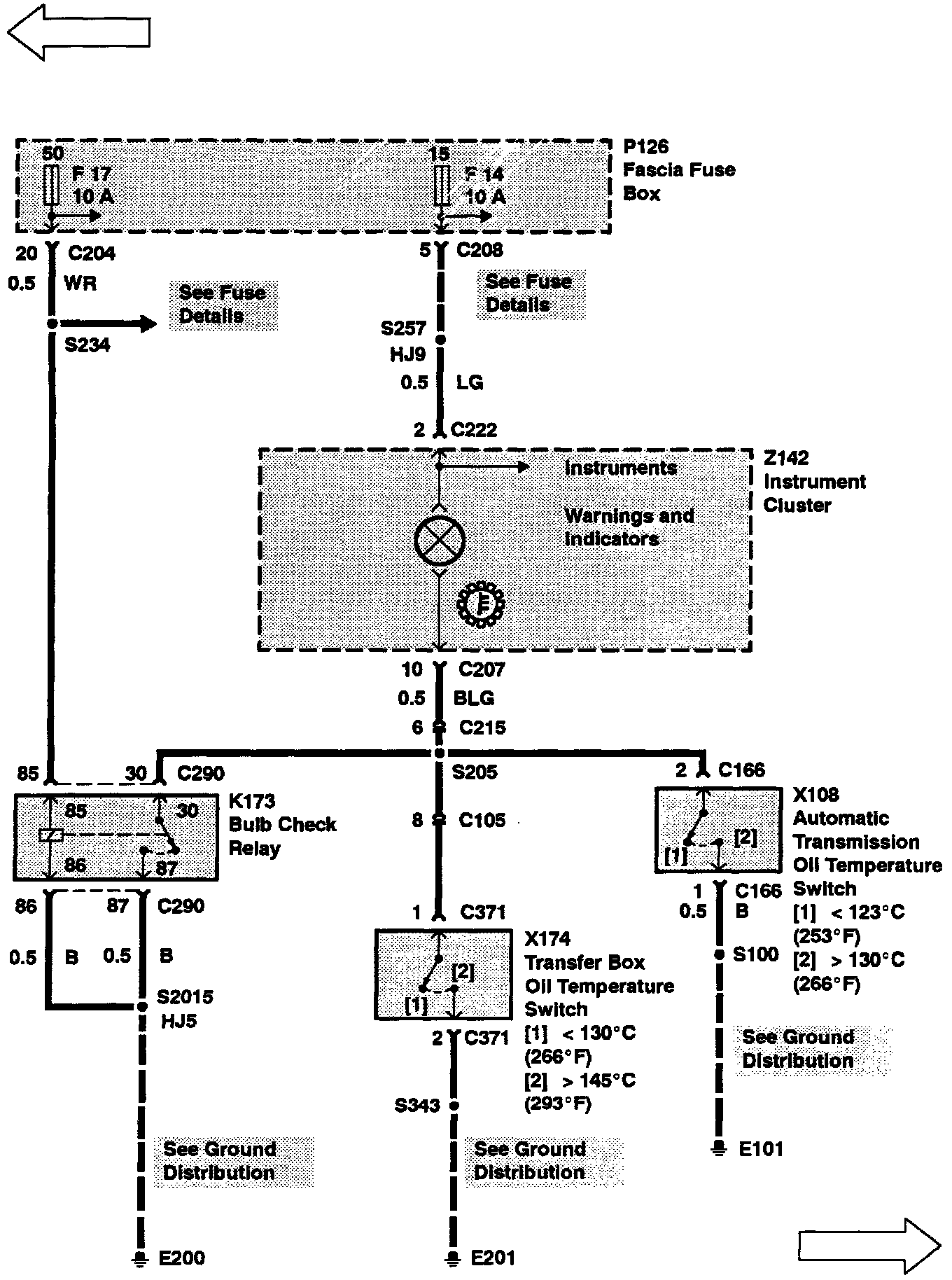

E3-3:

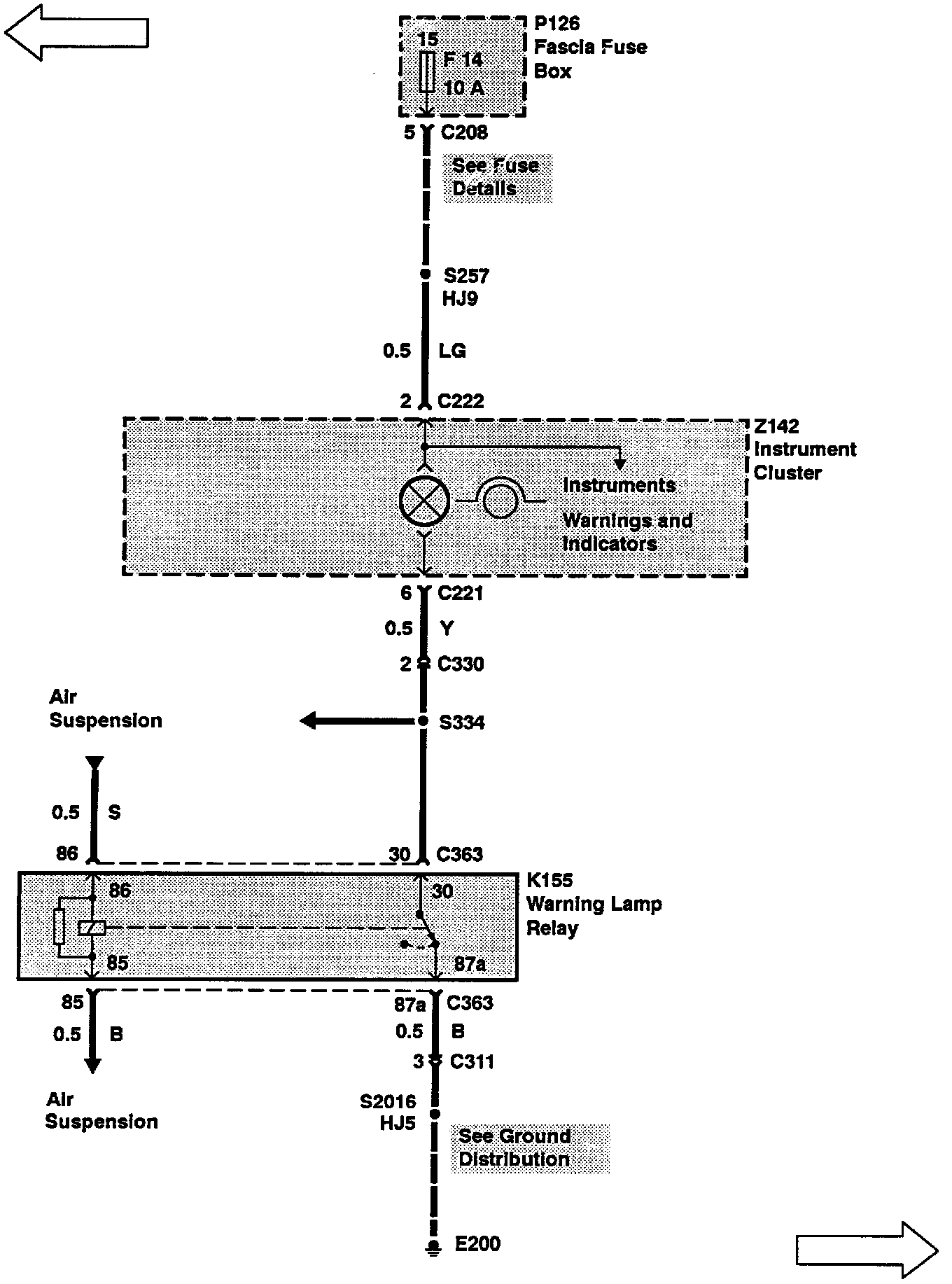

E3-4:

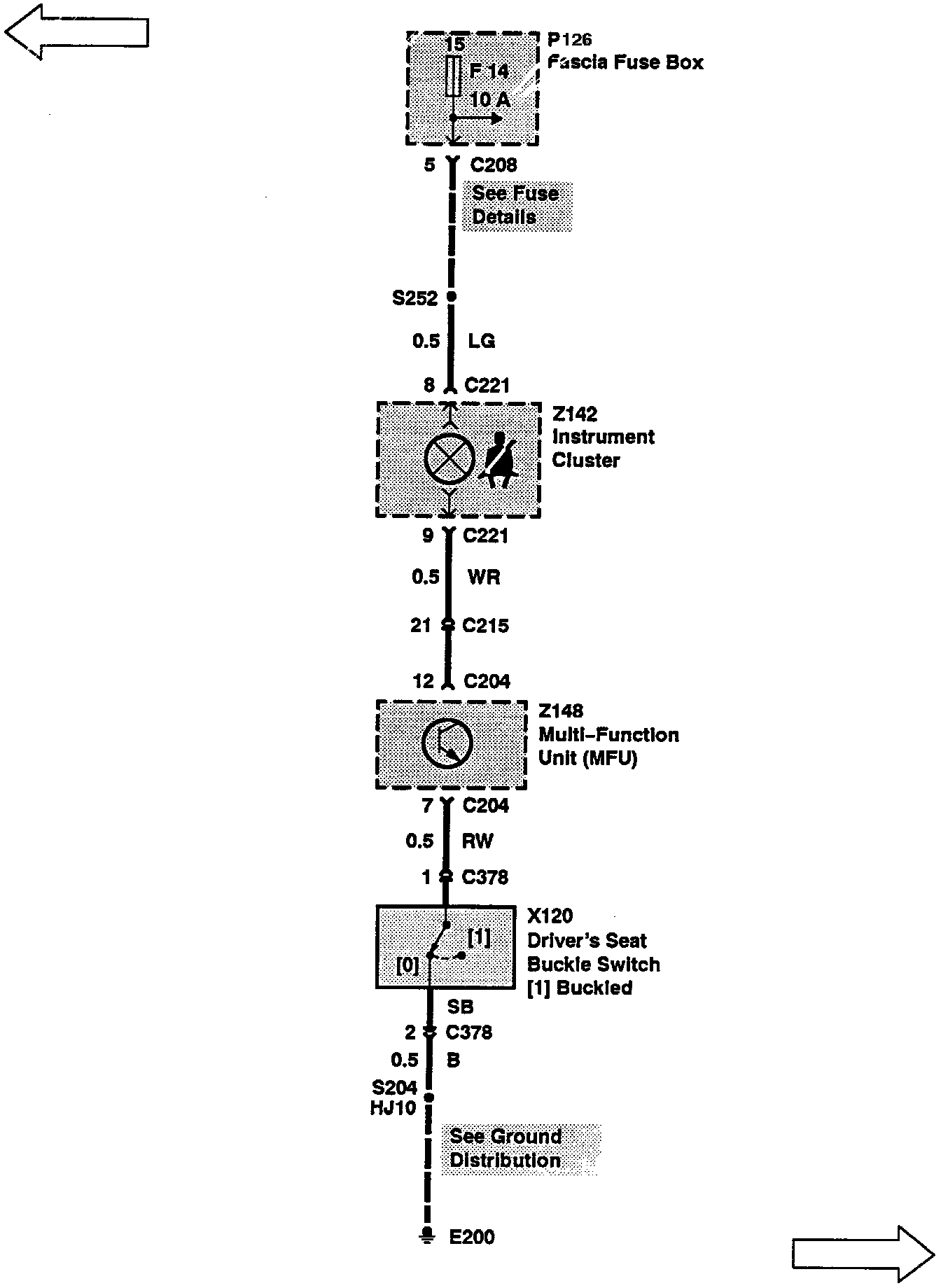

E3-5:

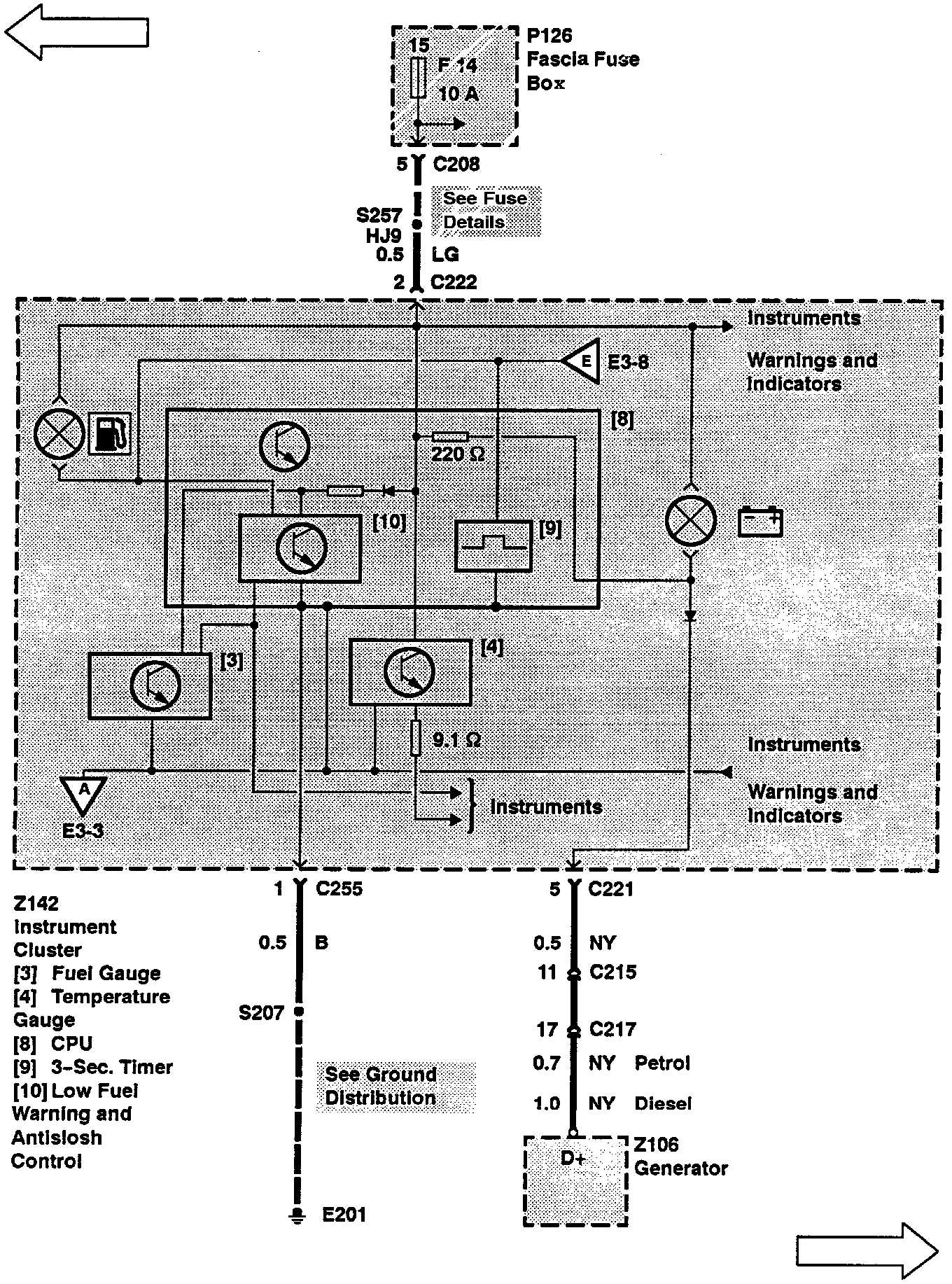

E3-6:

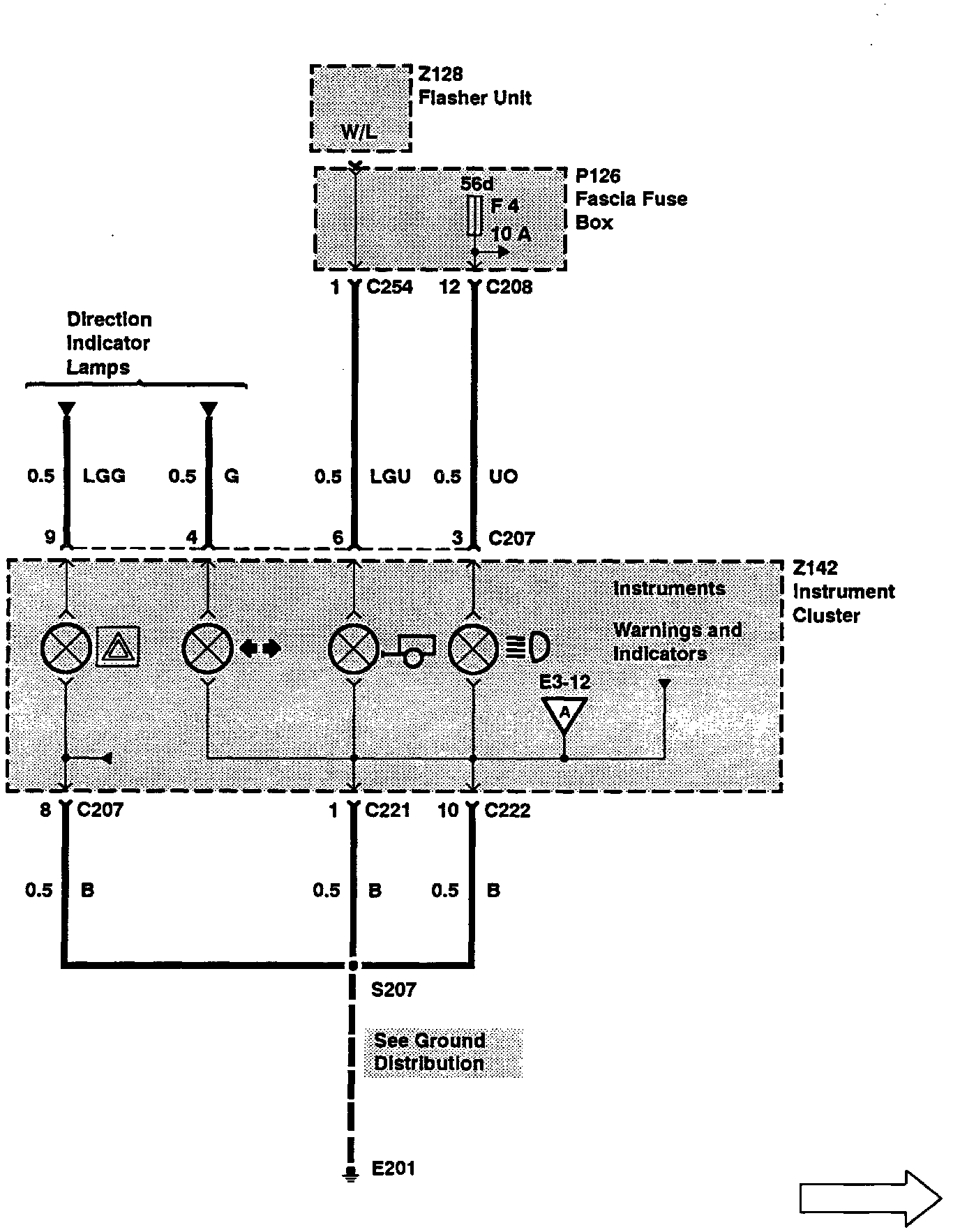

E3-7:

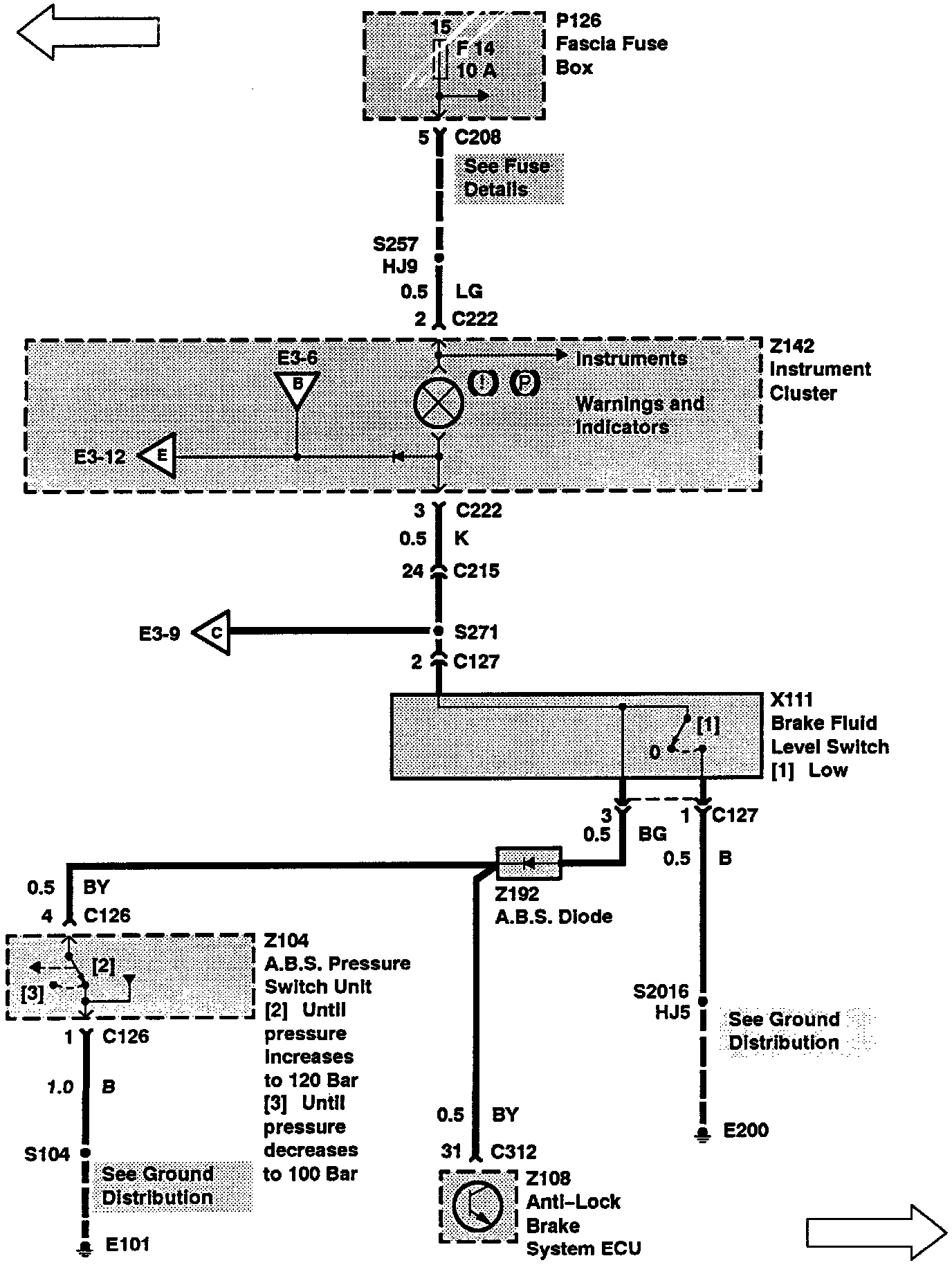

E3-8:

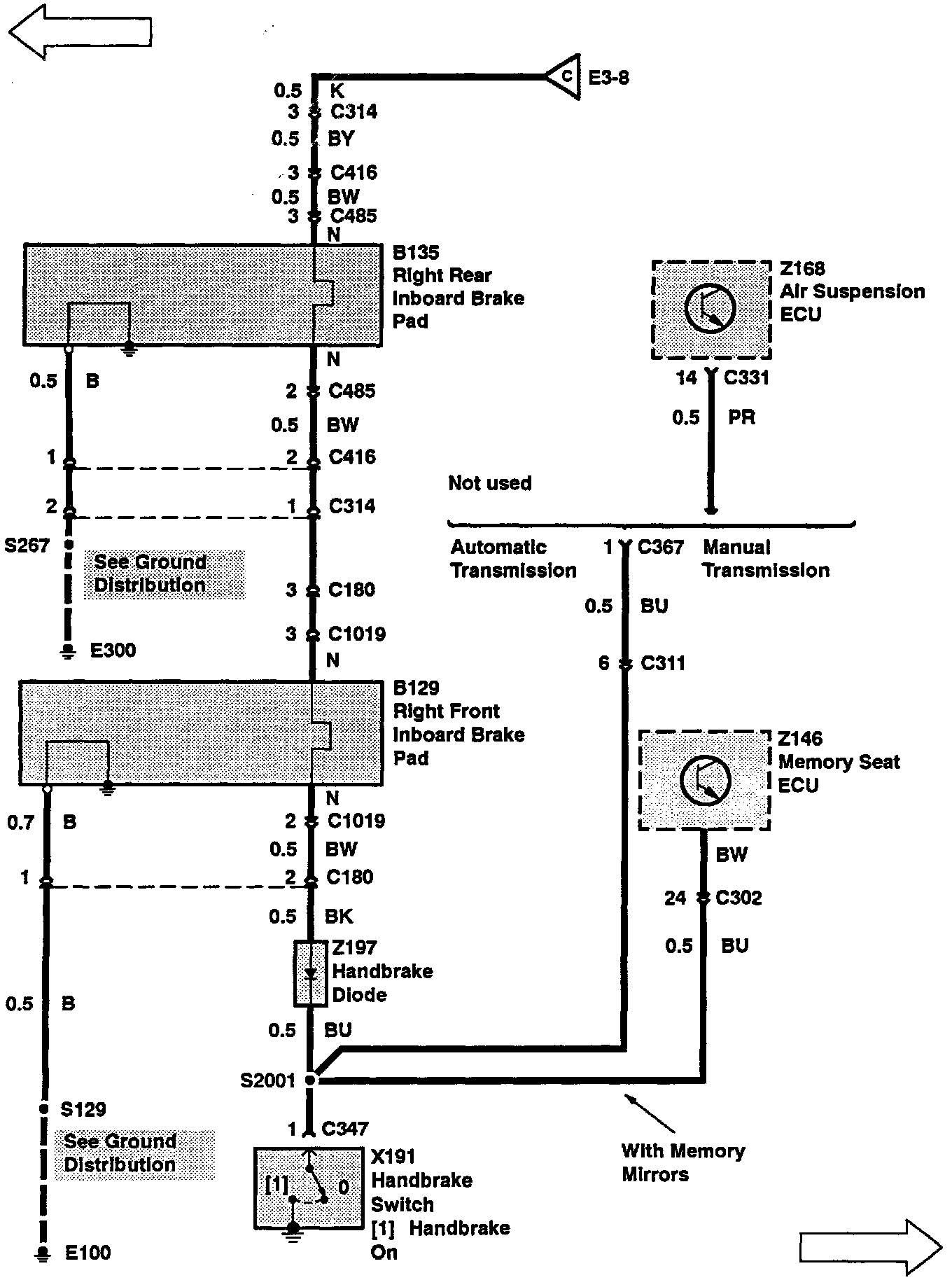

E3-9:

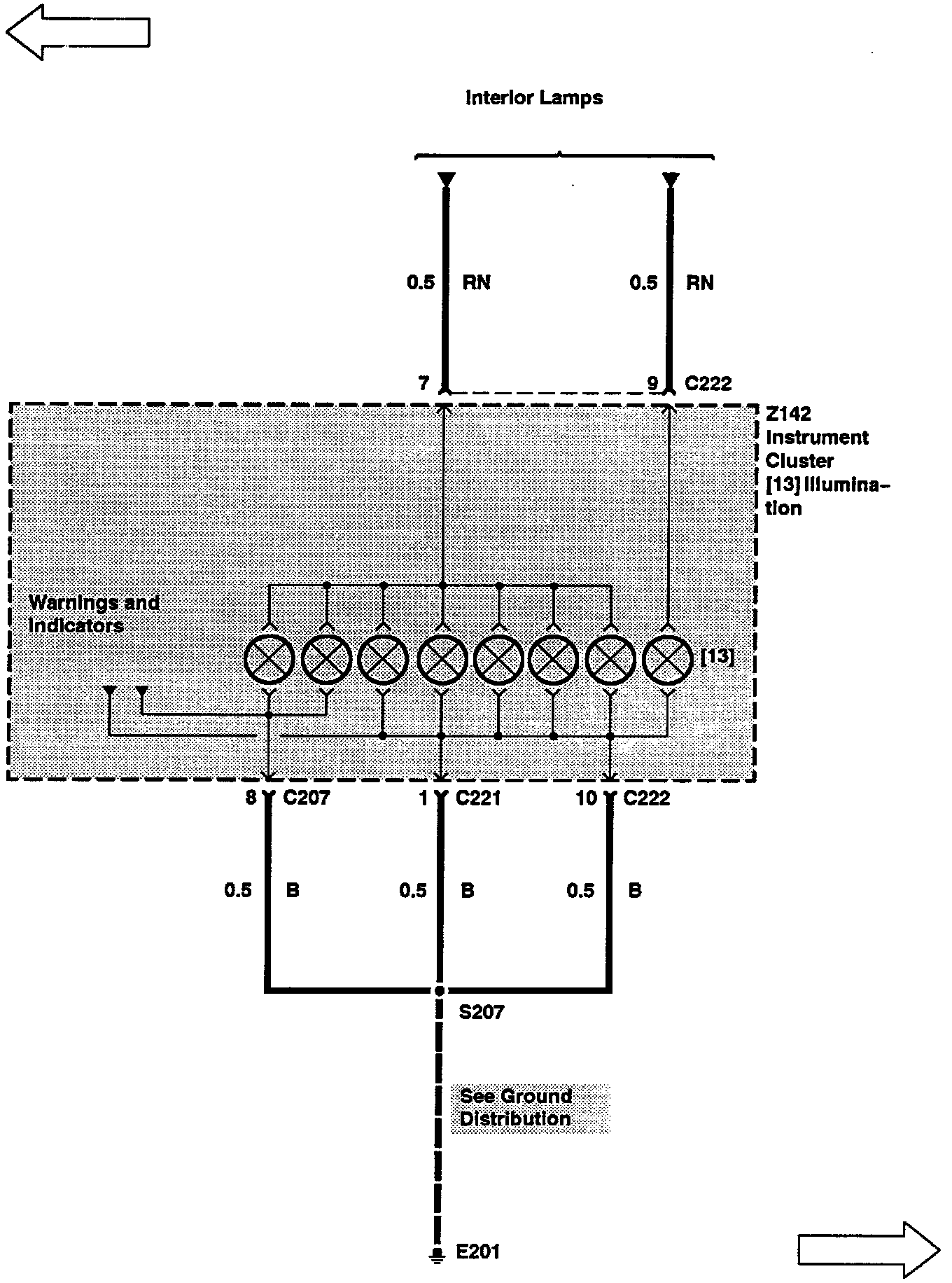

E3-10:





E3-11:





E3-12:





E3-13:





E3-14:





E3-15:
