Power Distribution

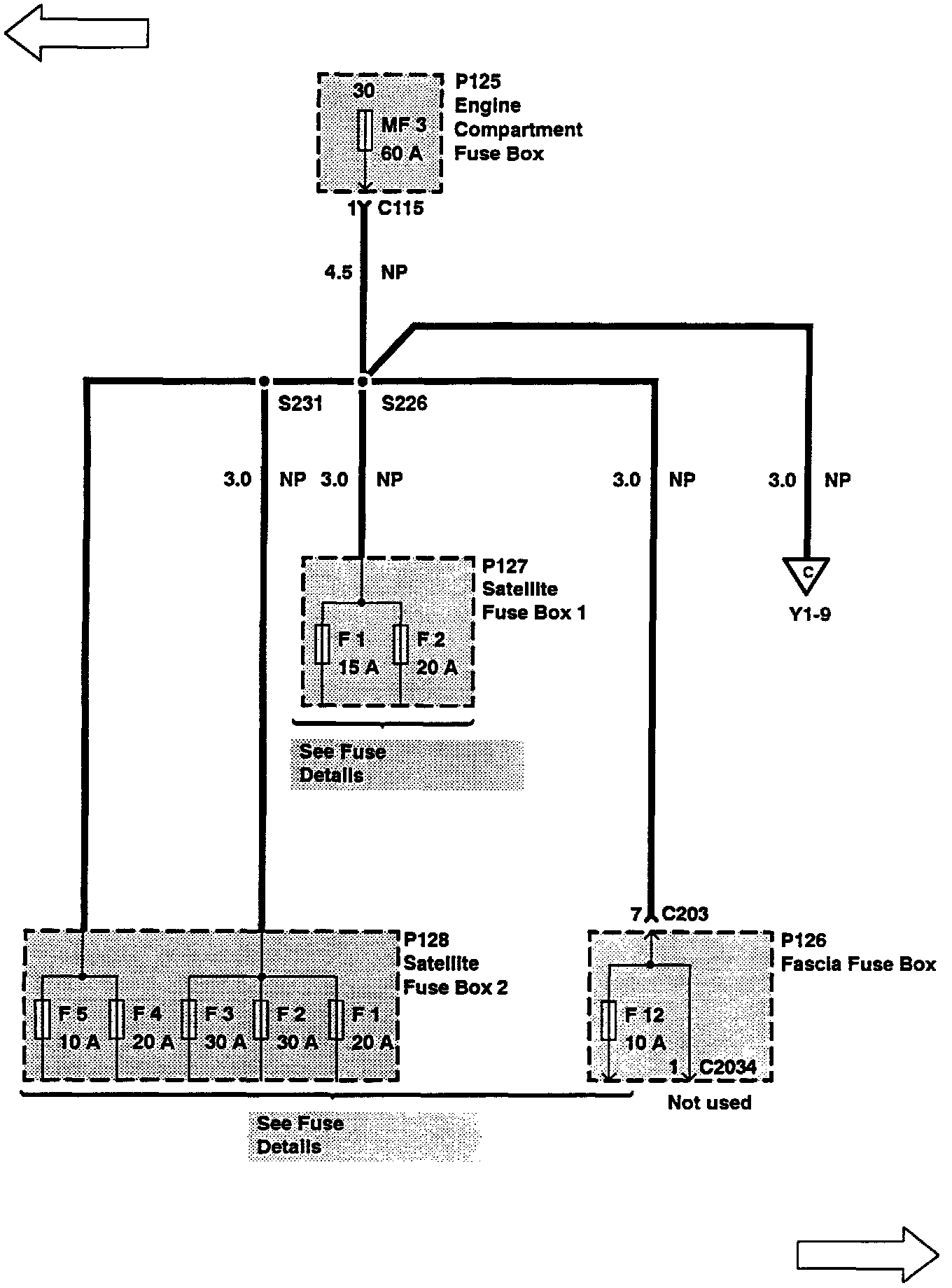

Y1-1, All Variants:

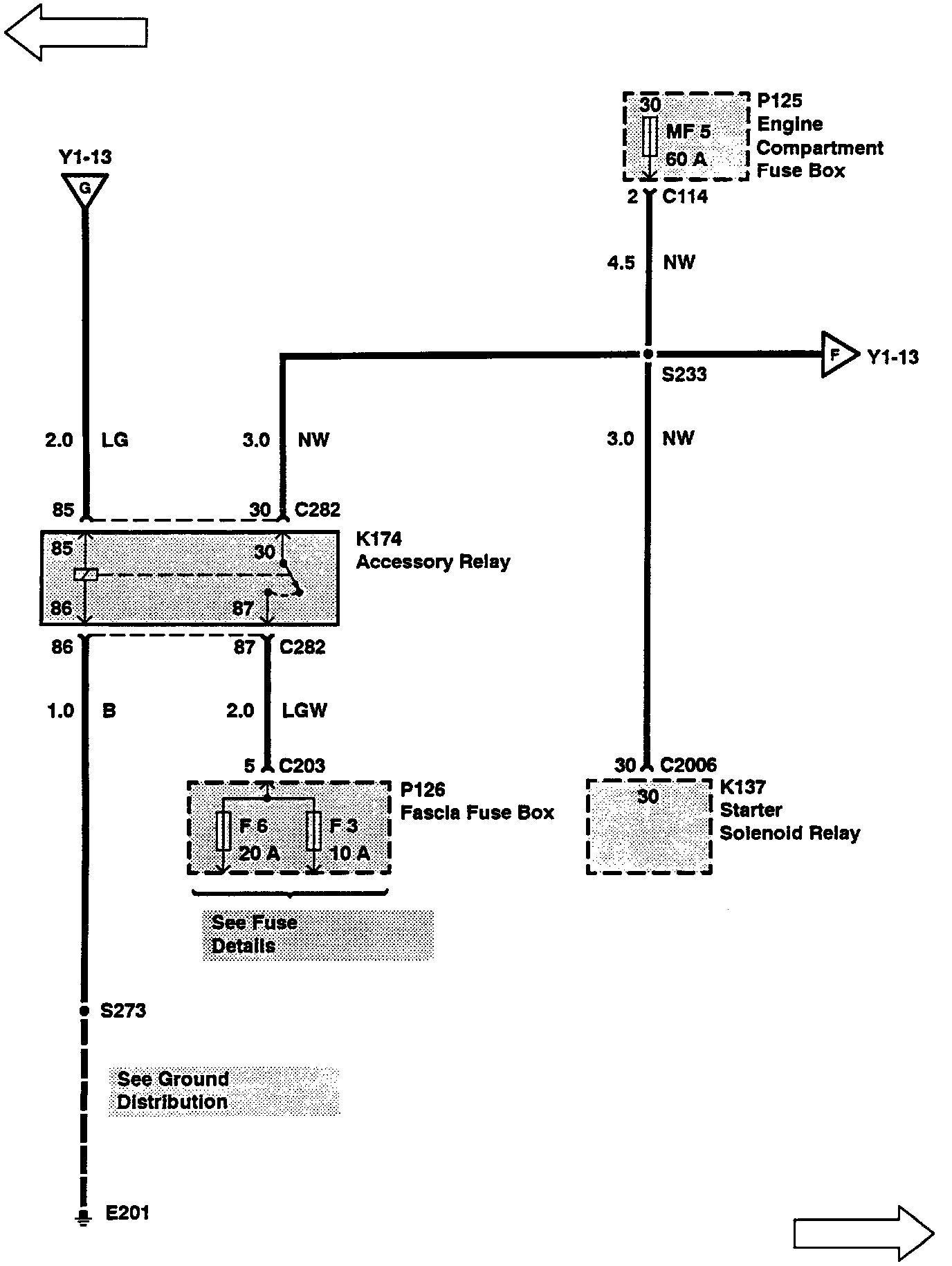

Y1-2, All Variants:

Y1-3, All Variants:

Y1-4, All Variants:

Y1-5, Without Power Seats:

Y1-6, Without Power Seats:

Y1-7, Without Power Seats:

Y1-8, Without Power Seats:

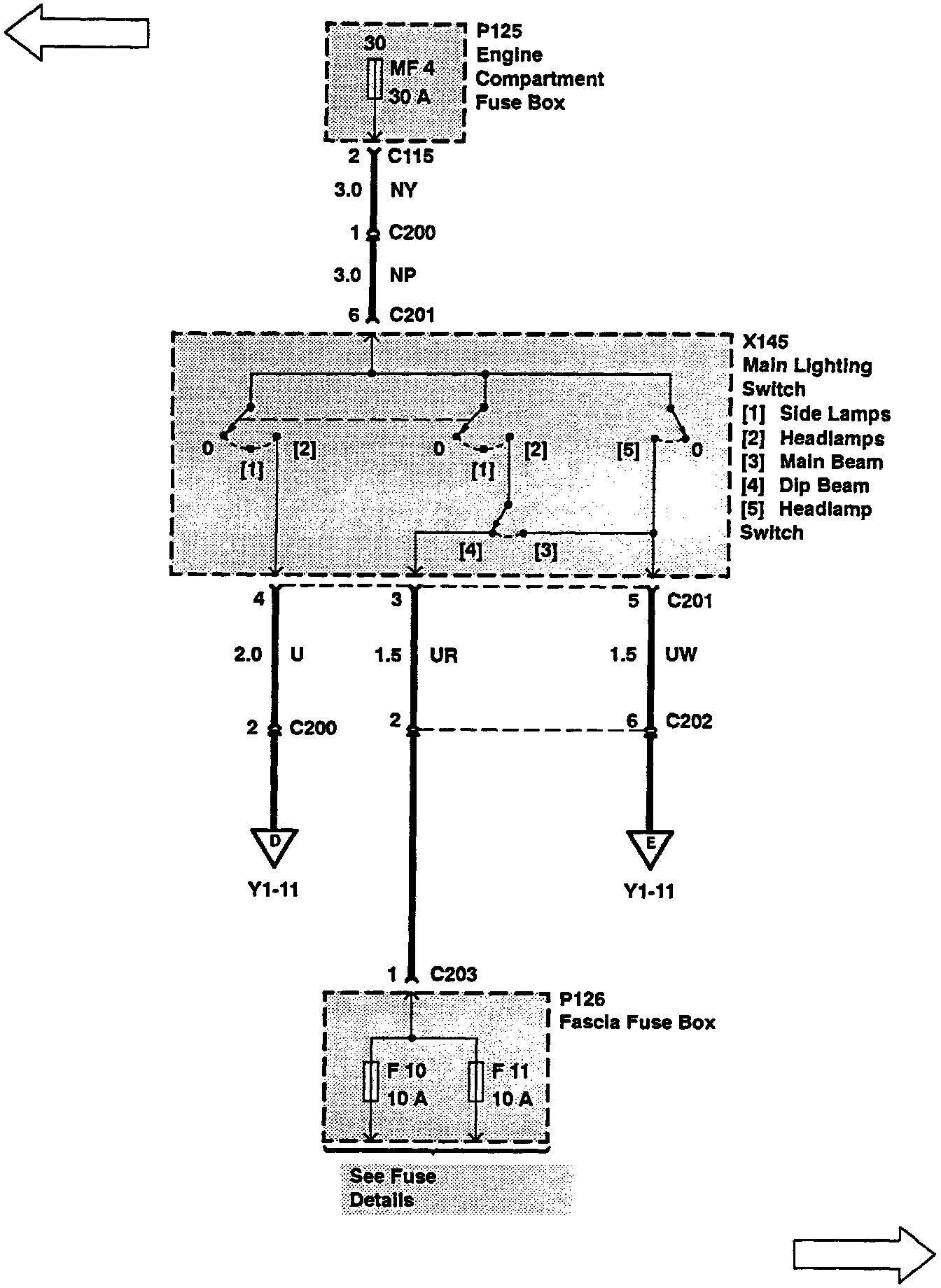

Y1-9, With Memory Seats and Mirrors:

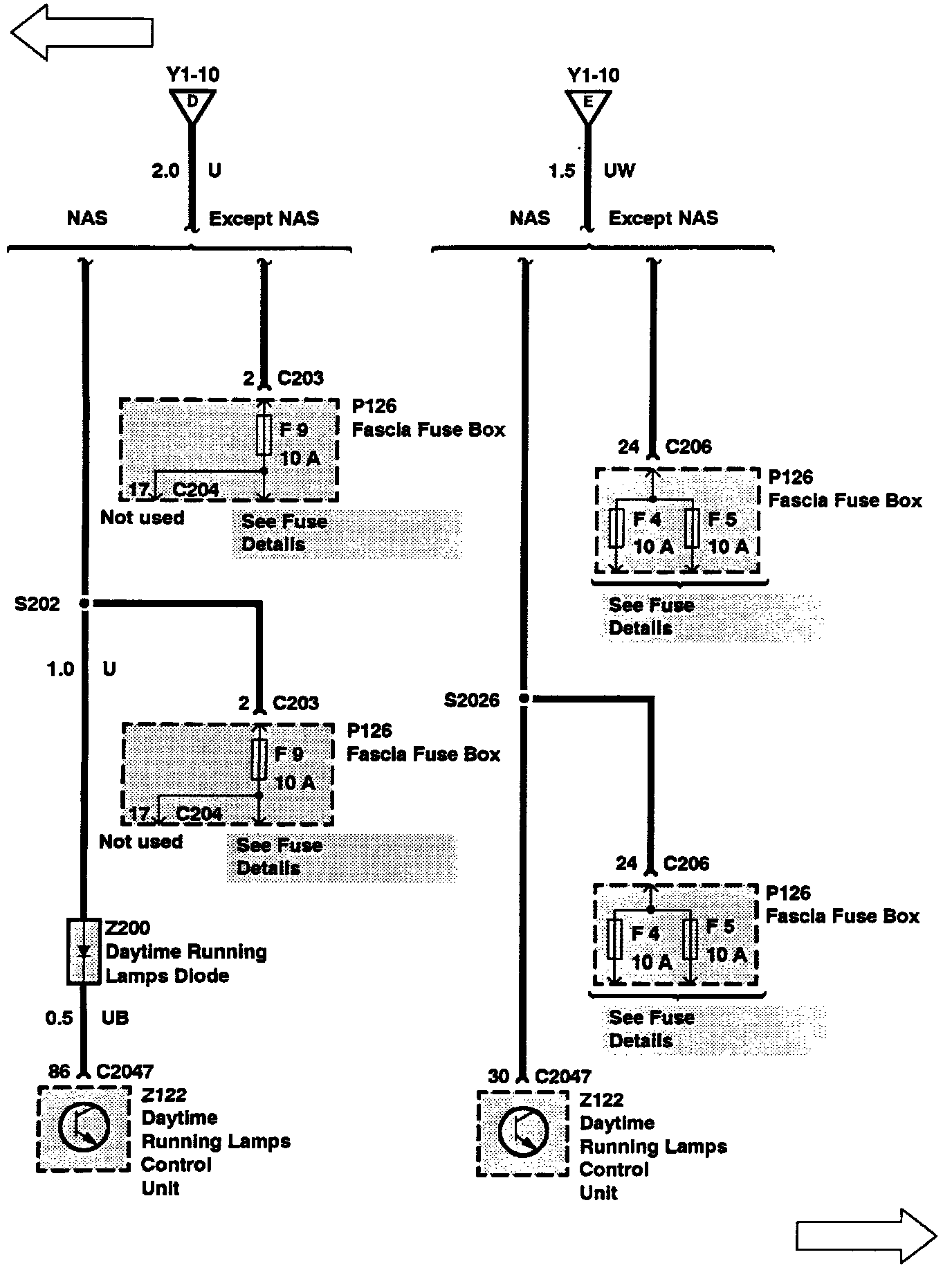

Y1-10, All Variants:

Y1-11, All Variants:

Y1-12:

Y1-13, All Variants:

Y1-14, All Variants:
