Home >> Land Rover >> 1995 >> Range Rover Classic (LH) V8-3.9L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> System Tests >> Test A

Test A

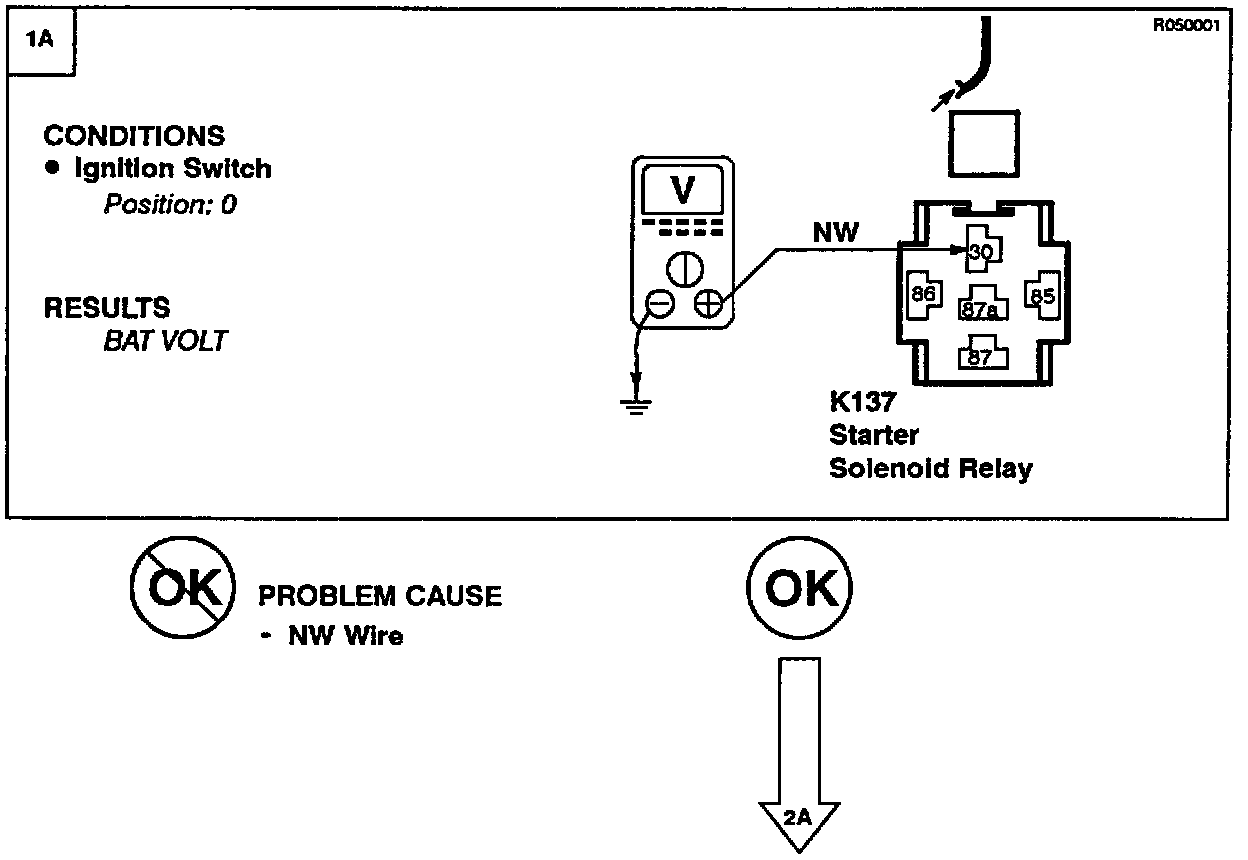

Test Step 1A:




Test Step 2A:




Test Step 3A:

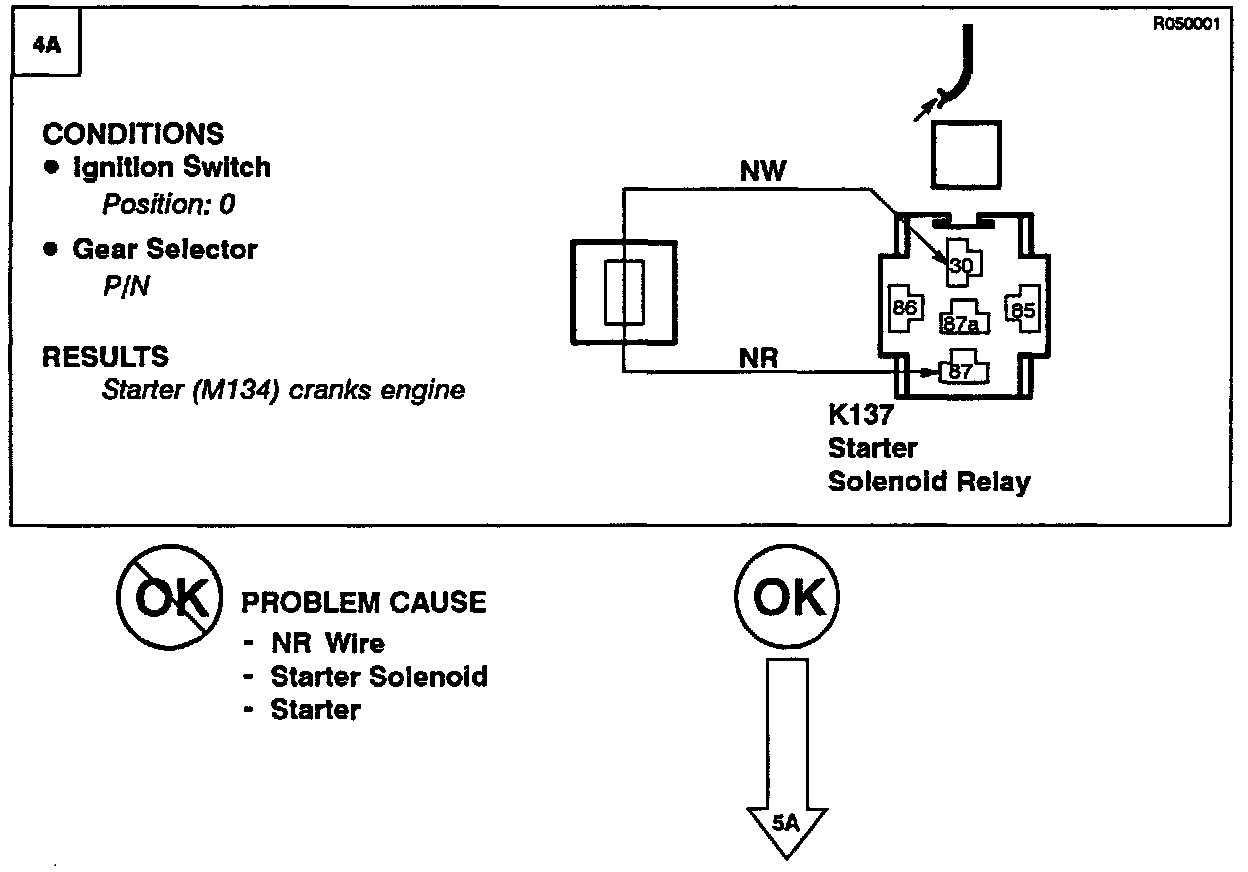

Test Step 4A:




Test Step 5A:
