Range Rover Classic LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C283 - C290
C283 - C290

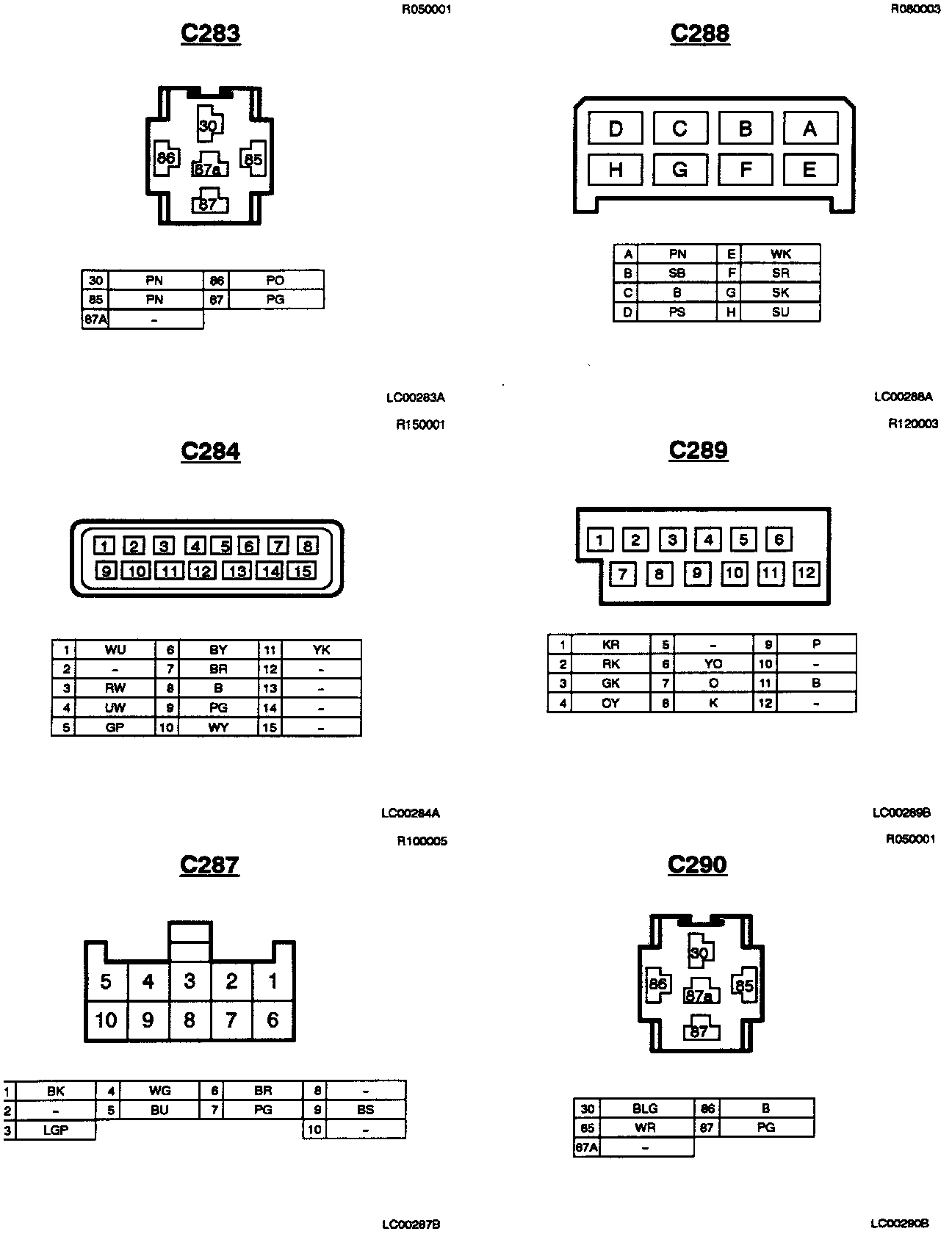

C283, C284, C287, C288, C289 And C290:
