Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1995
>>
Range Rover Classic LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

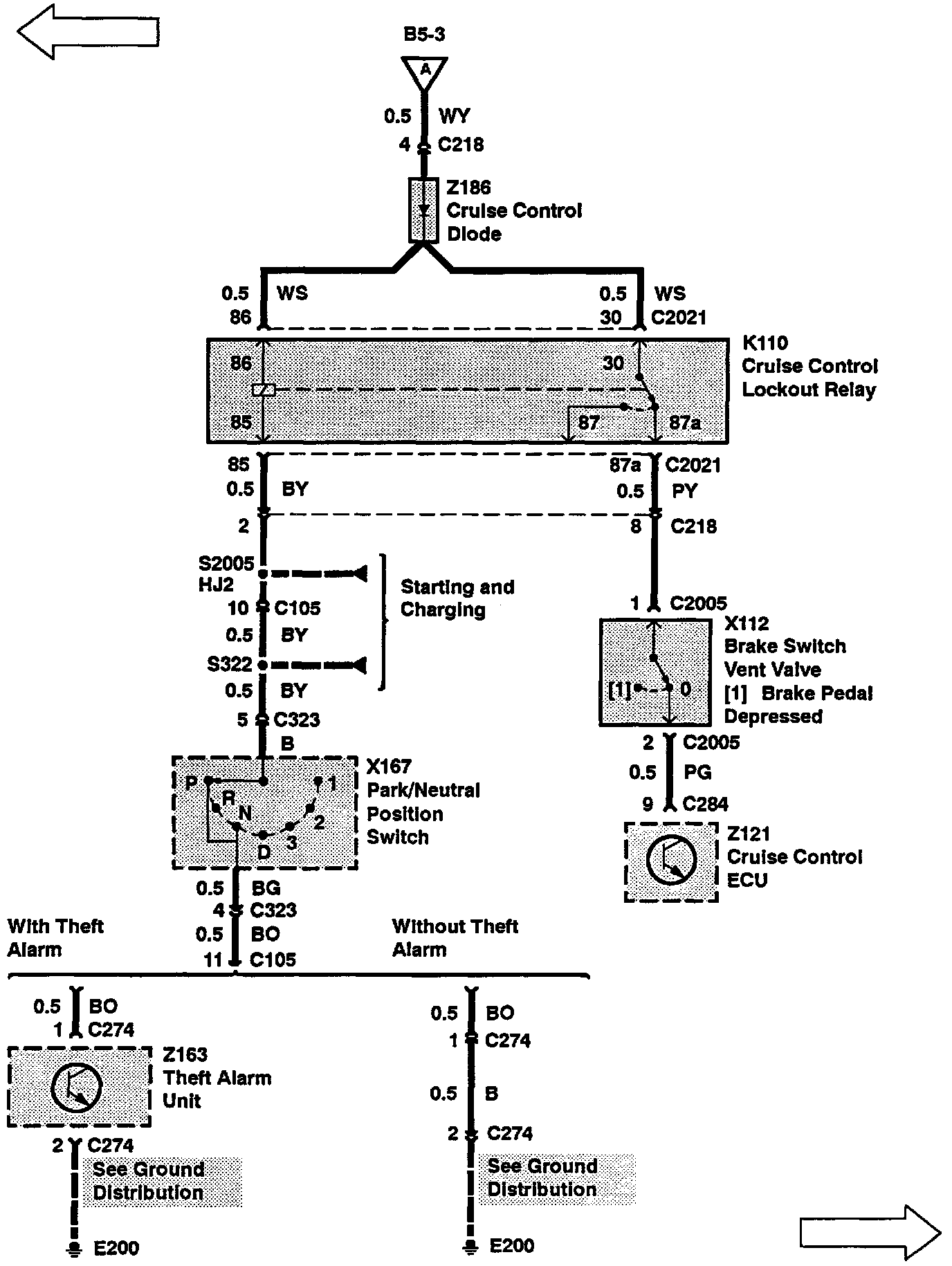

Cruise Control
>>
System Diagram
>>
With Automatic Transmission
With Automatic Transmission
B5-7:
