Range Rover SE (LP) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C249 - C251
C249 - C251

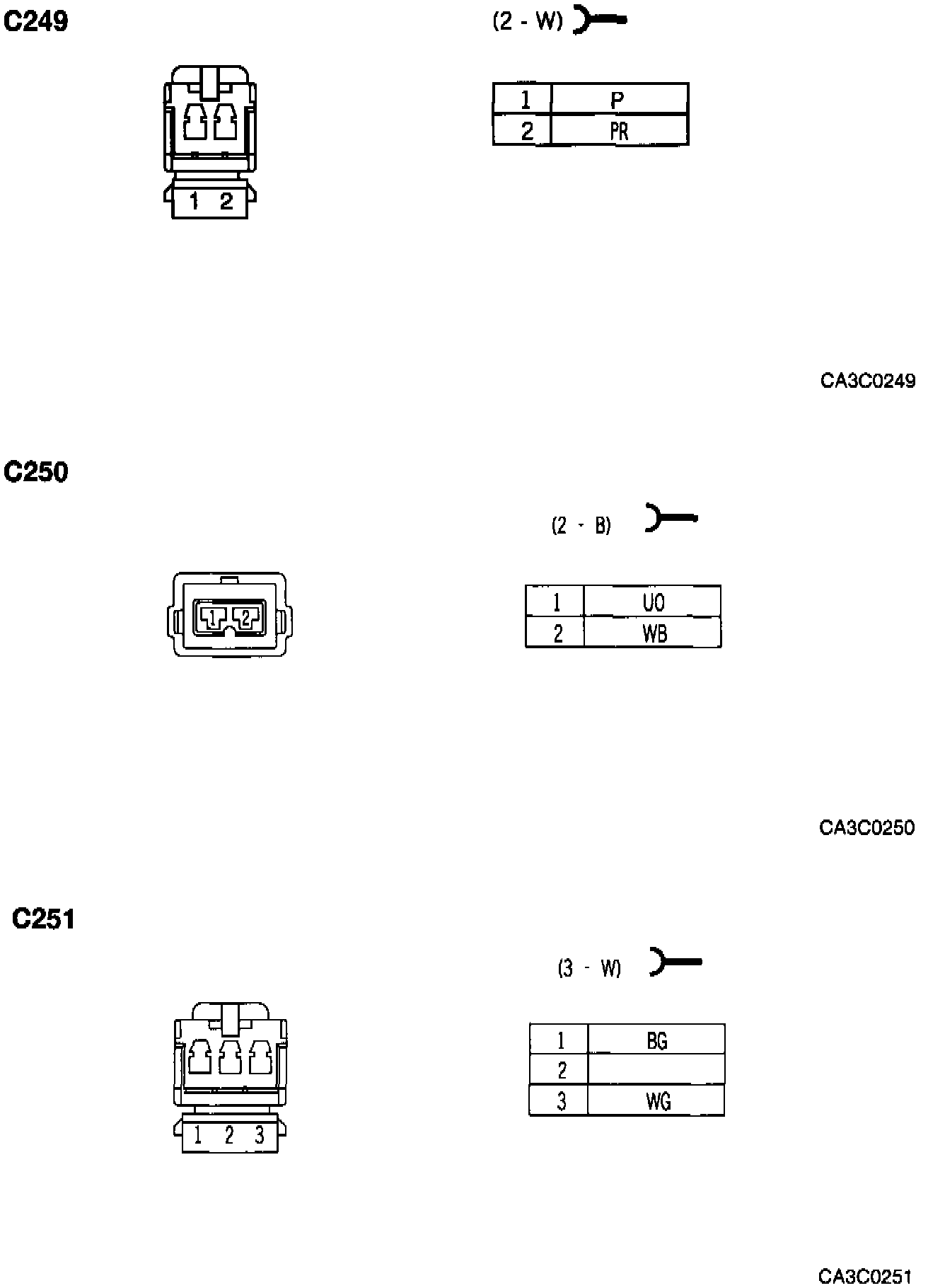

C249, C250, C251:
