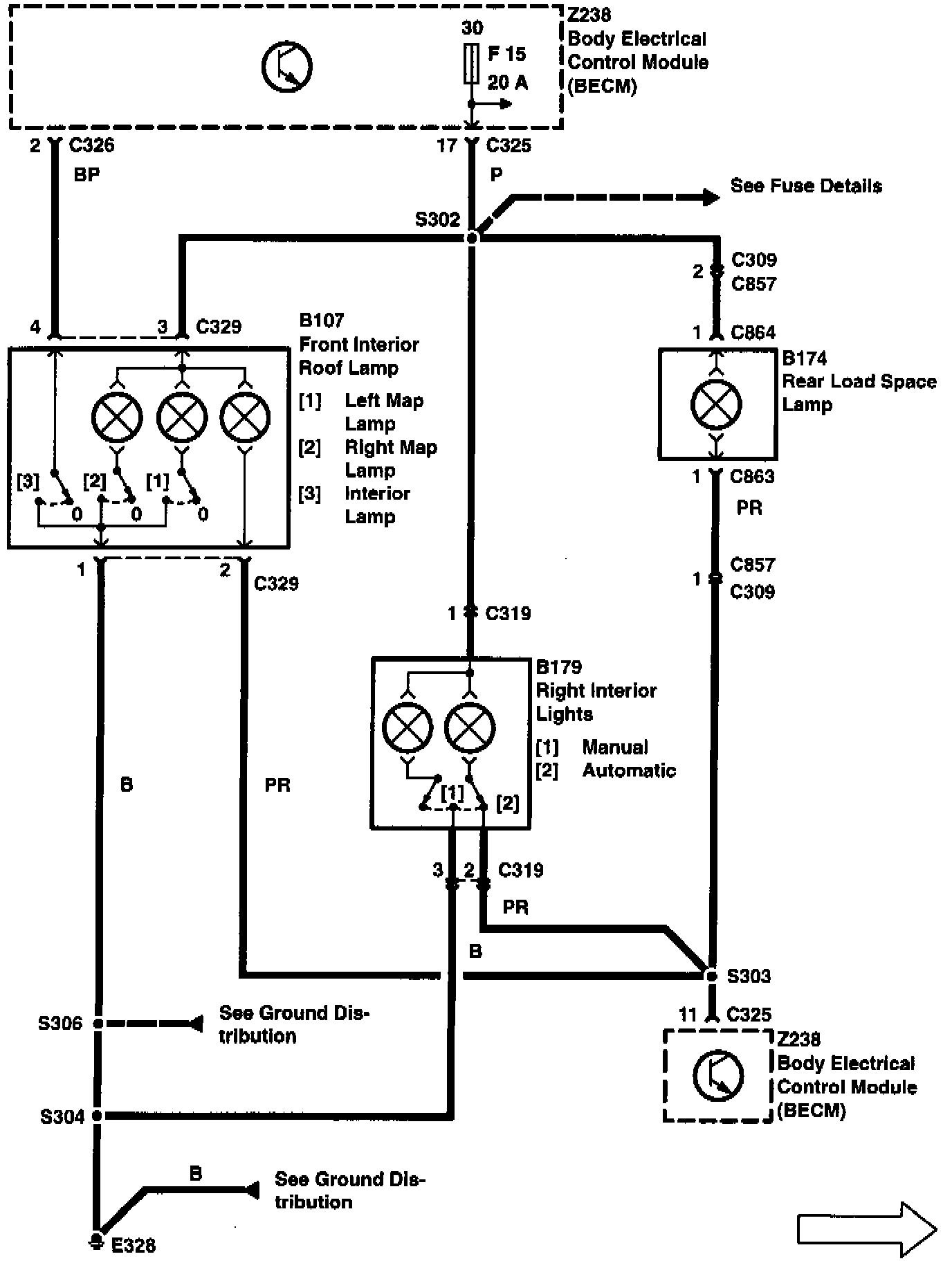

Interior Lamps

J1-3:





J1-4:





J1-5:





J1-6:





J1-7:

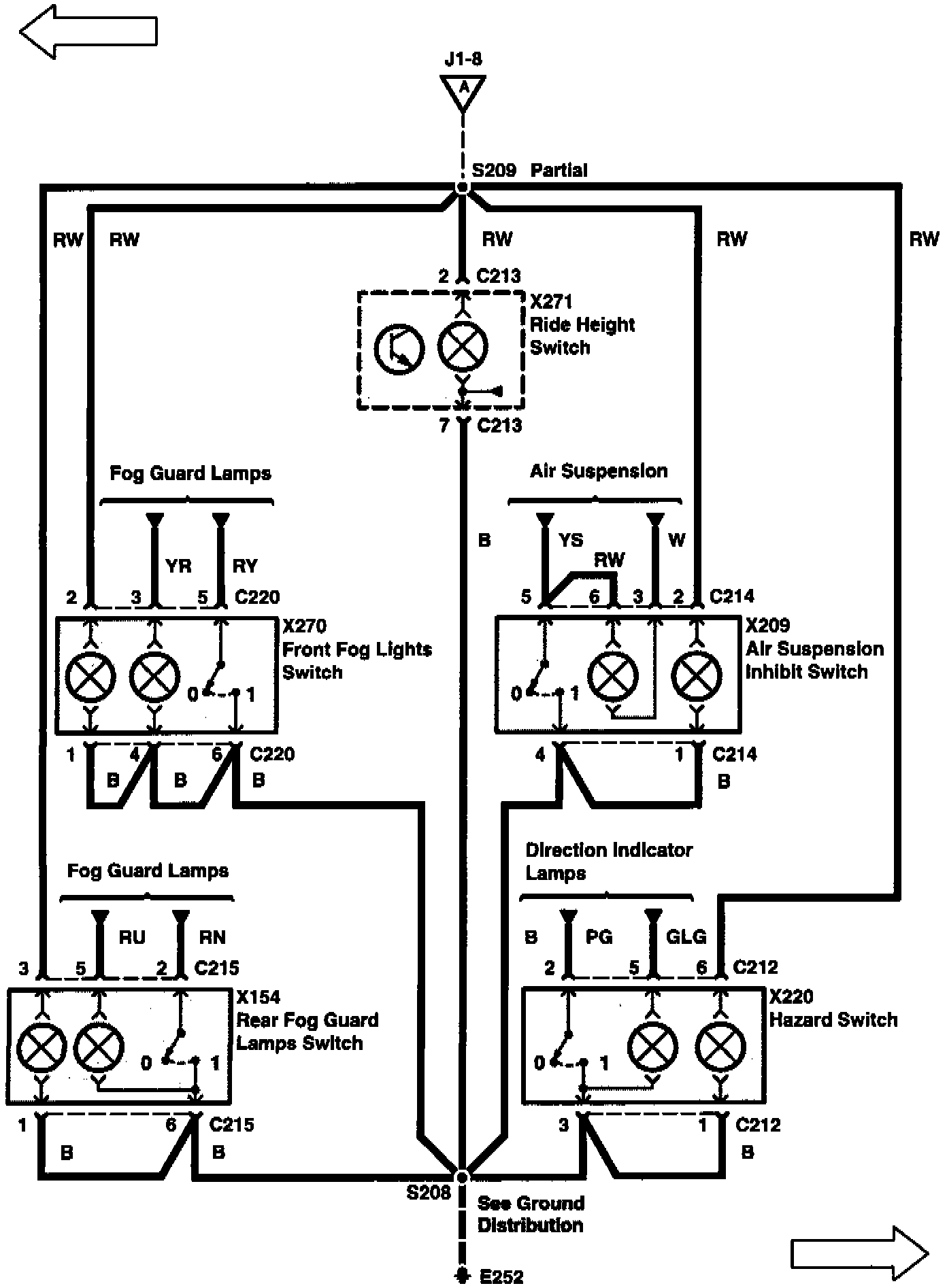

J1-8:





J1-9:





J1-10:





J1-11:





J1-12:





J1-13:
